Airbag-Seat-Right

Component ID: 259

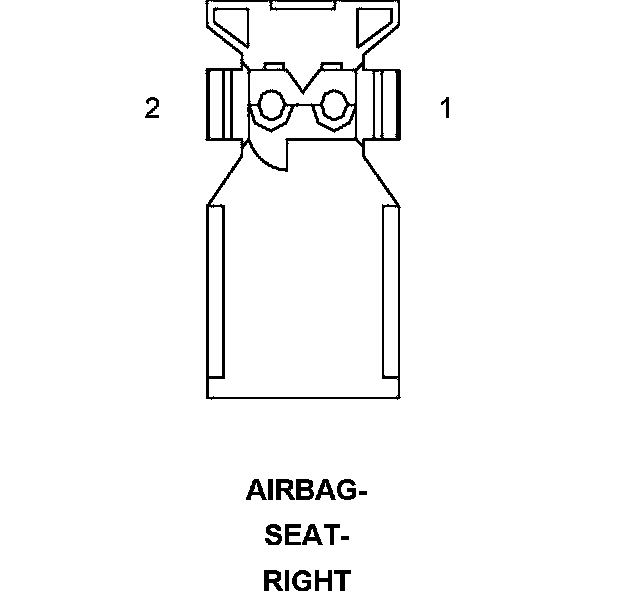

Component : AIRBAG-SEAT-RIGHT

Connector:
Name : AIRBAG-SEAT-RIGHT
Color :
# of pins : 2




Pin Circuit Description
1 R6 18LB/VT RIGHT SEAT SQUIB 1 LINE 2
2 R8 18GY/LG RIGHT SEAT SQUIB 1 LINE 1
