Removal







REMOVAL





1. Remove the radioRemoval.
2. Remove the instrument cluster Instrument Cluster - Removal.

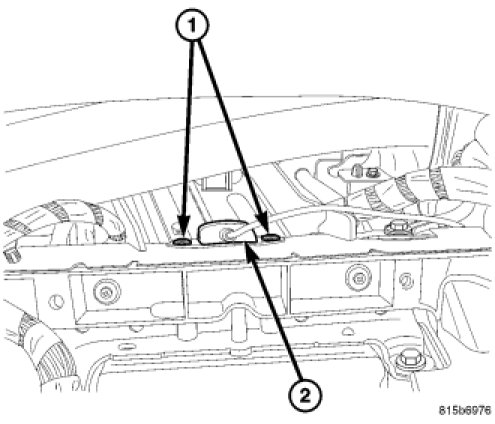

3. Remove the navigation antenna fasteners (1).
4. Remove the navigation antenna (2) from the vehicle.
