Right Engine Mount

REMOVAL





1. Disconnect negative battery (1) cable located in trunk.




2. Remove air cleaner housing (3)Air Cleaner Housing - Removal.
3. Raise vehicle.




4. Remove lower splash shield retaining bolts (1) and splash shield (2).




5. Remove engine mount nuts (1).
6. Remove engine mount studs (1) from the right engine mount isolator.
7. Place a block of wood under the oil pan (4) and raise engine with suitable jackstand.

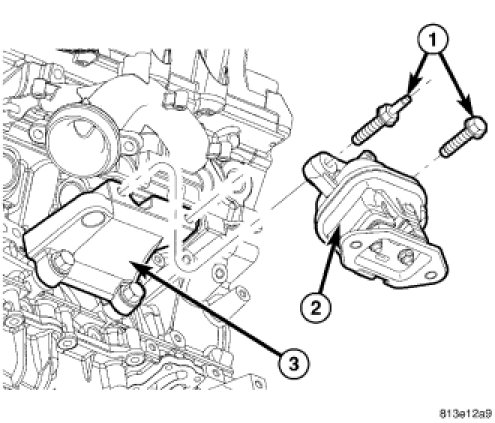

8. Remove engine mount isolator to engine mount adapter bolts (1).
9. Remove engine mount isolator (2).
