Canister Purge Solenoid: Locations

The solenoid attaches to a bracket near the right rear of the engine. The solenoid will not operate unless it is installed correctly.

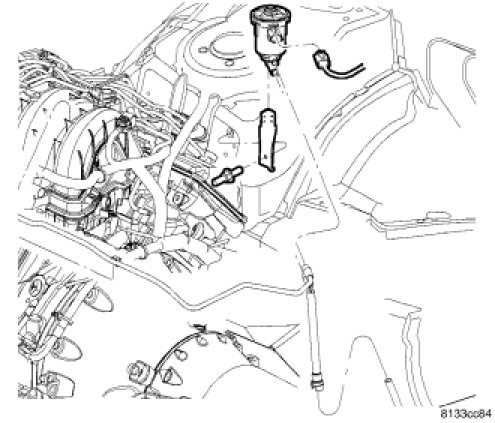

Location for 5.7L engine.

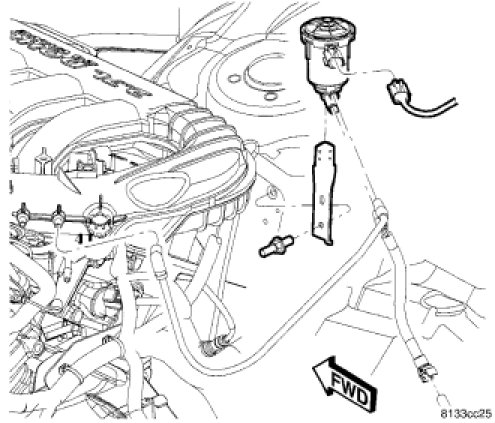

Location for 2.7 and 3.5L engine.
