Fluid Cooler

FLUID COOLER





1. Disconnect and isolate battery negative cable (2) from battery post.
2. Siphon power steering fluid from pump reservoir.
3. Raise and support vehicle. Service and Repair
4. Remove belly pan. Belly Pan - Removal




5. Remove hose clamp, then return hose (1) from steering gear at cooler (2).
6. Remove hose clamp, then return hose (3) to reservoir at cooler (2).

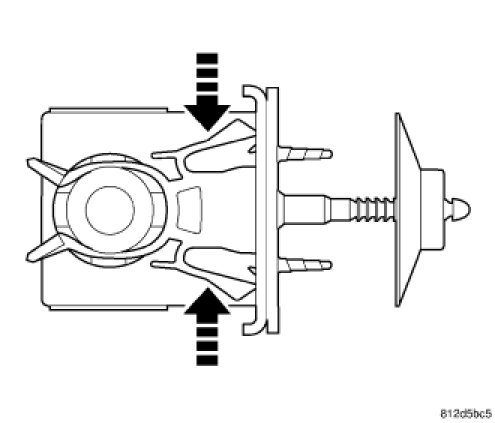

7. Push in on cooler mounting clip tabs.
8. Remove cooler from clips mounted to cooling module.
