Installation

INSTALLATION

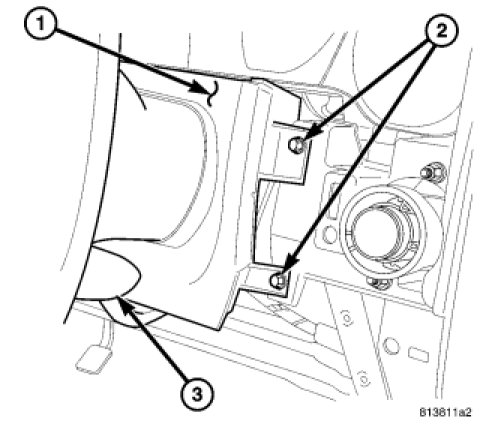

1. Install the roll top shroud (1) over the steering column (2).




2. Install the three shroud mounting screws (2).




3. Manual tilt and telescoping columns - Position the manual adjustment handle (2) over the column adjustment pin and rotate the locking tab (3) rearward as shown latching the handle to the column. Make sure the tab snaps into locked position.

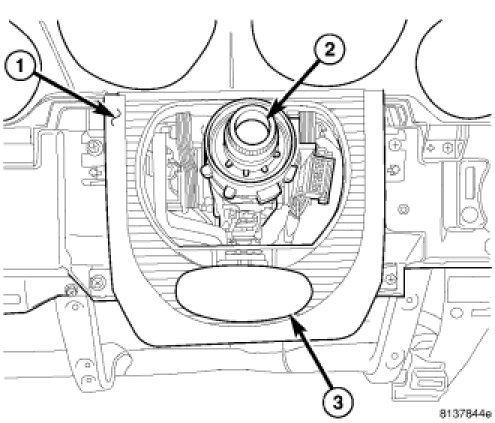

4. Install the cluster bezel (3). Instrument Panel Cluster Bezel - Installation

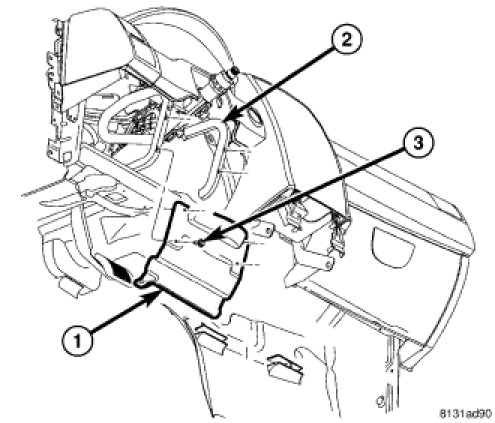

5. Install the steering column opening reinforcement (1).
6. Install the steering column opening cover (1).

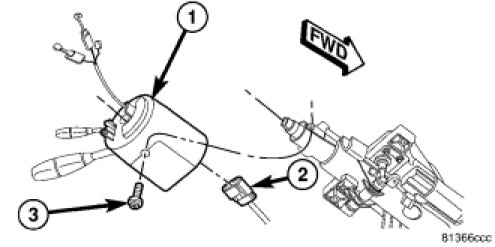

7. Install the steering column control module (SCCM) (1) and all components removed to access it. Installation
8. Install the negative battery terminal on the battery. It is important that this is performed properly (including calibration of steering angle sensor if equipped with ESP). Battery Reconnection
9. Test the operation of the horn, lights and any other functions that are steering column operated.
