Rear - Wagon Only

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the rear wiper arm (3) Wiper Arms - Removal.




3. Remove the liftgate trim panel Removal.

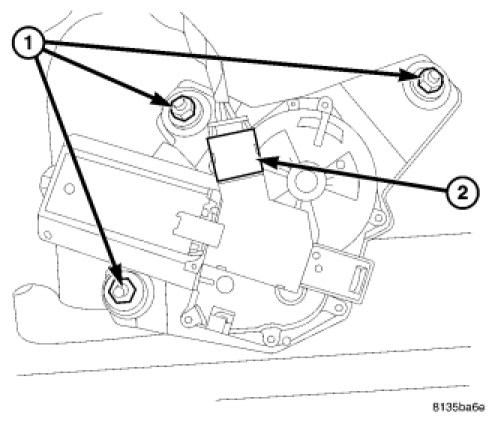

4. Remove the three mounting fasteners (1).

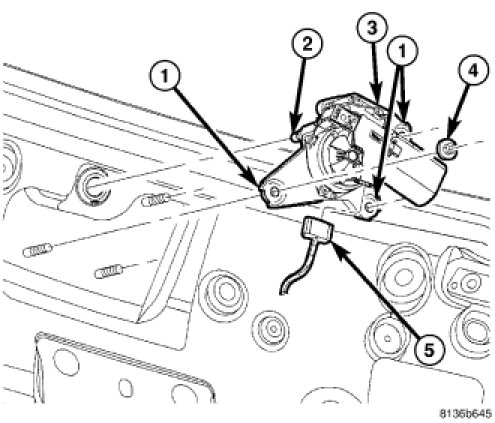

5. Disconnect the electrical harness connector (5).
6. Separate the wiper motor (3) from the liftgate.

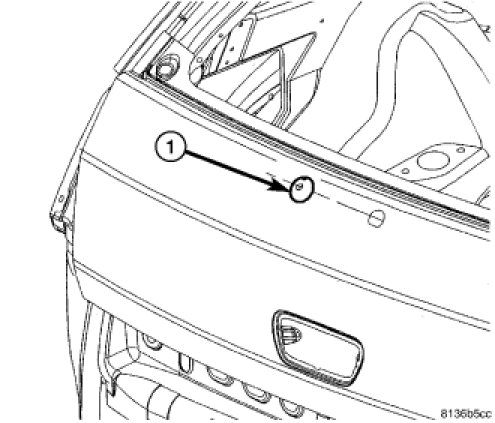

7. Inspect the wiper motor shaft to liftgate seal (1).
