Driver Airbag Squib 2 (Steering Wheel) 2 Way
Driver Airbag Squib 2 (Steering Wheel) 2 Way

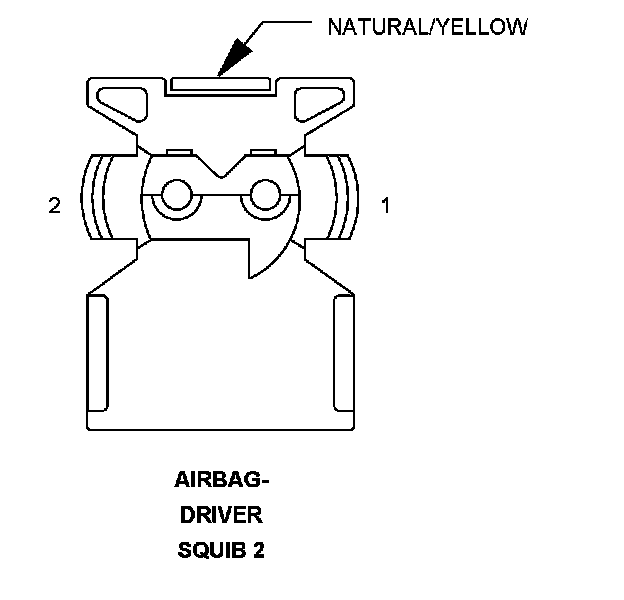

Connector - (STEERING WHEEL) 2 WAY

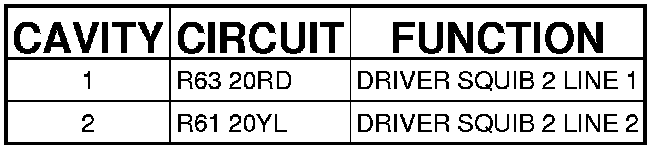

AIRBAG-DRIVER SQUIB 2 - (STEERING WHEEL) 2 WAY
