Air Door Actuator / Motor, HVAC
Air Door Actuator / Motor, HVAC

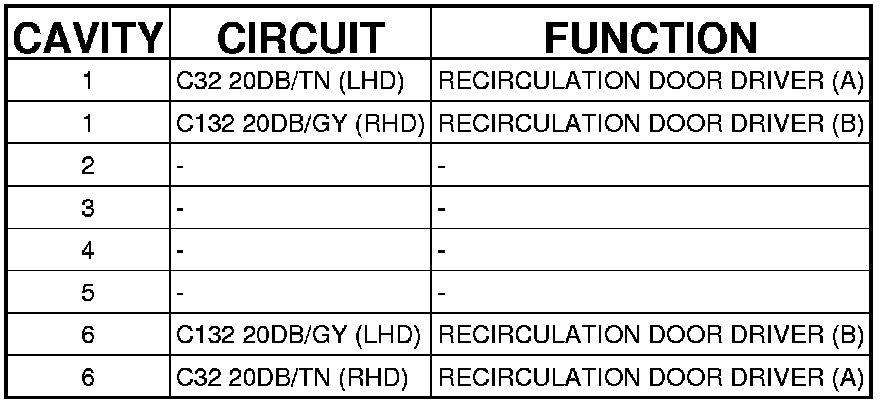

Connector - (INSTRUMENT PANEL) 6 WAY

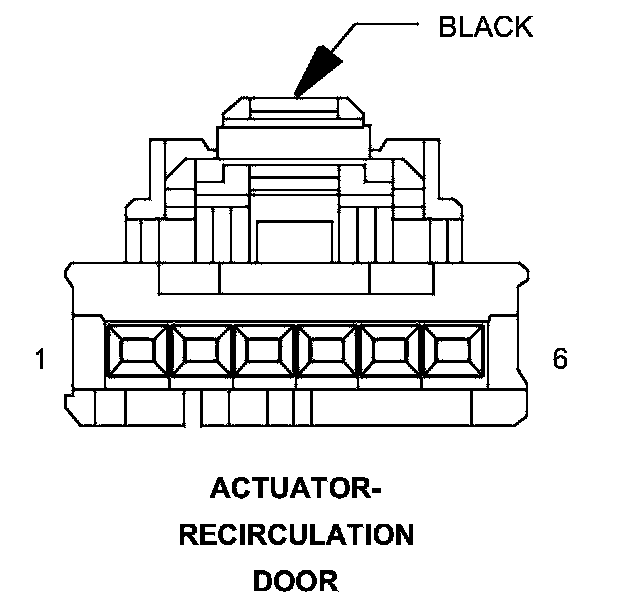

ACTUATOR-RECIRCULATION DOOR - (INSTRUMENT PANEL) 6 WAY
