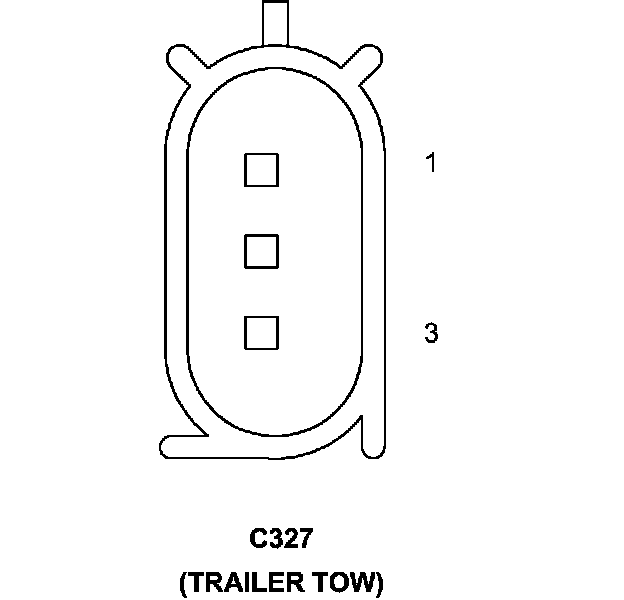

C327 (Trailer Tow) (Trailer Tow Side) 3 Way
C327 (Trailer Tow) (Trailer Tow Side) 3 Way

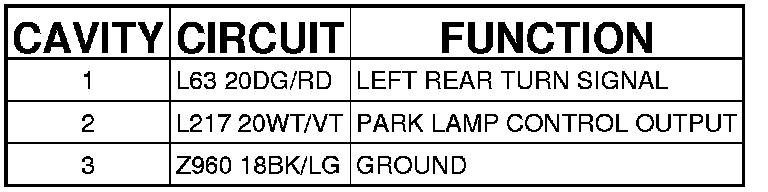

Connector (TRAILER TOW) - (TRAILER TOW SIDE) 3 WAY
C323 (TRAILER TOW) - (TRAILER TOW SIDE) 3 WAY
