Diagrams
>>
Connector Views
>>
Speaker
>>
Subwoofer Speaker (Premium) (Body) 10 Way
Subwoofer Speaker (Premium) (Body) 10 Way

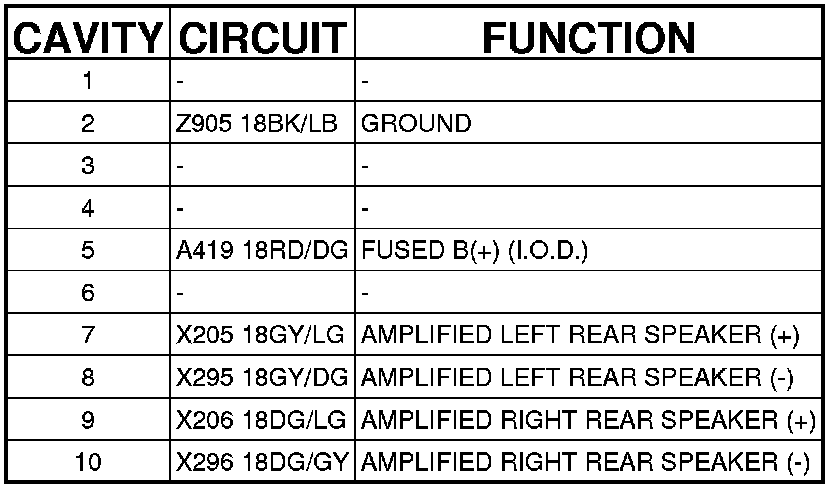

Connector (PREMIUM) - (BODY) 10 WAY

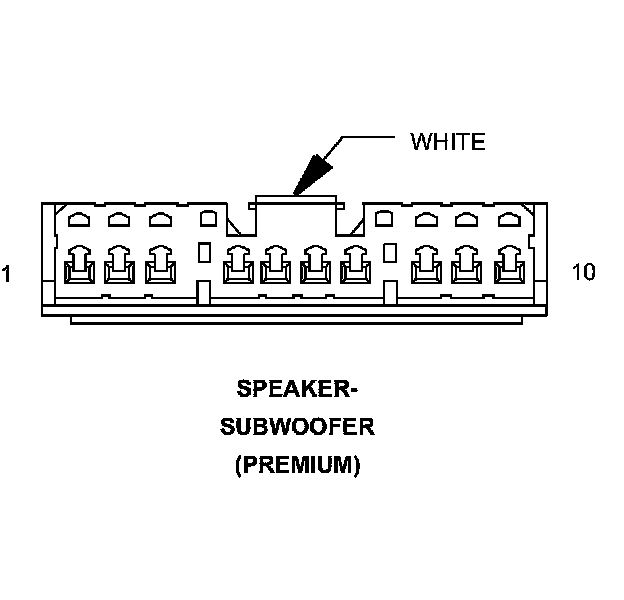

SPEAKER-SUBWOOFER (PREMIUM) - (BODY) 10 WAY
