Accessory Drive Belt Tensioner - Removal

GAS ENGINE










1. Raise vehicle on hoist.

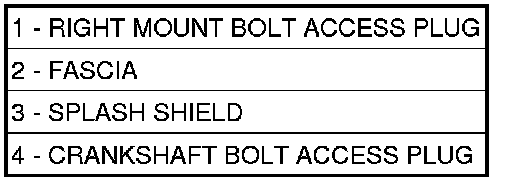

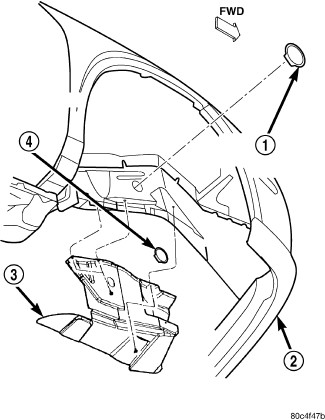

2. Remove belt splash shield (3).










3. Remove accessory drive belt Serpentine Accessory Drive Belt - Removal.

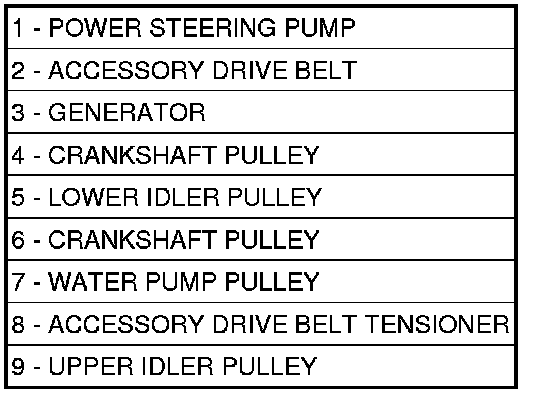

4. Remove accessory drive belt tensioner mounting bolt. Remove accessory drive belt tensioner (8).
