Speaker: Description and Operation

DESCRIPTION

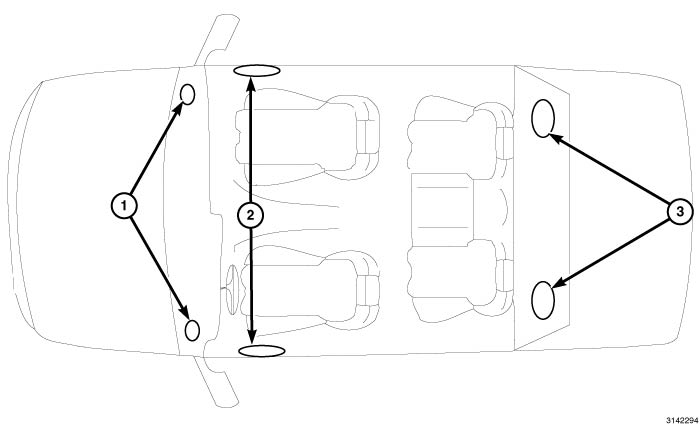

BASE AUDIO SYSTEM (RCG)





The base speaker system includes six speakers.

- Two 8.89 centimeter (3.5 inch) diameter midrange tweeters located in the instrument panel (1).
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located in each front door (2).
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located on each side of the rear shelf (3).

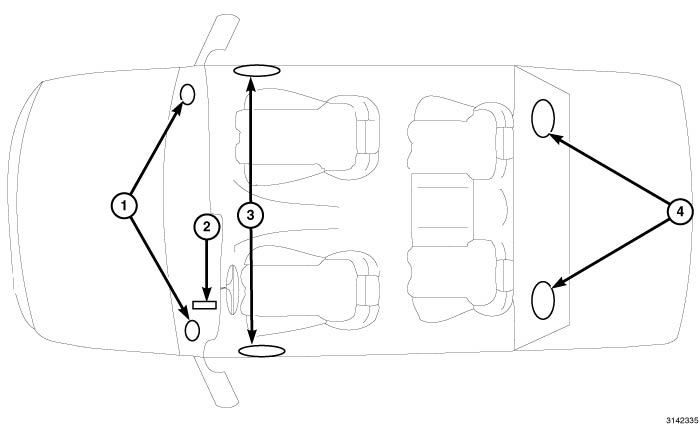

PREMIUM AUDIO SYSTEM (RCJ/RD7)





The premium audio system includes six speakers and a amplifier.

- Two 8.89 centimeter (3.5 inch) diameter midrange tweeters located in the instrument panel (1).
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located in each front door (3).
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located on each side of the rear shelf (4).
- 8 channel 276 watts amplifier located under the instrument panel to the left of the steering column (2).

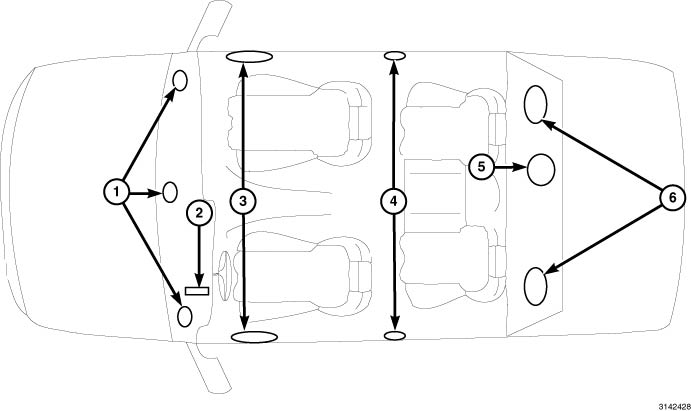

PREMIUM SURROUND AUDIO SYSTEM (RC3/RFD)





The premium audio system includes nine speakers and a amplifier.

- Three 8.89 centimeter (3.5 inch) diameter midrange tweeters located in the instrument panel (1).
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speaker is located in each front door (3).
- Two 8.89 centimeter (3.5 inch) diameter midrange tweeters located in each rear door (4).
- One 20.32 centimeter (8 inch) DVC subwoofer (5).
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located on each side of the rear shelf (6).
- 12 channel 506 watts amplifier located under the instrument panel to the left of the steering column (2).
