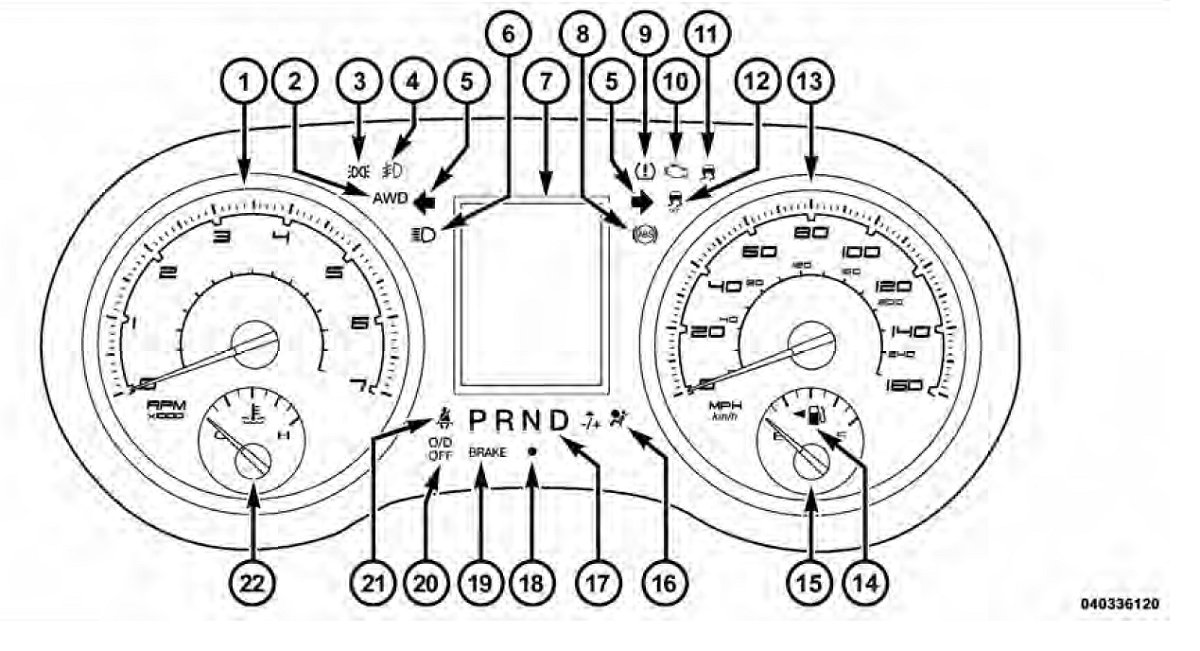

Instrument Cluster / Carrier: Locations

Instrument Cluster:

1. Tachometer
2. AWD (All Wheel Drive) Indicator
3. Position Light Indicator - If Equipped
4. Front Fog Light Indicator - If Equipped
5. Turn Signal Indicators
6. High Beam Indicator
7. Odometer Display/Electronic Vehicle Information Center (EVIC) Display
8. Anti-Lock Brake (ABS) Light
9. Tire Pressure Monitoring Telltale Light - If Equipped
10. Malfunction Indicator Light (MIL)
11. Electronic Stability Control (ESC) Activation/Malfunction Indicator Light - If Equipped
12. Electronic Stability Control (ESC) OFF Indicator Light - If Equipped
13. Speedometer
14. Fuel Door Reminder
15. Fuel Gauge
16. Airbag Warning Light
17. Shift Lever Indicator
18. Vehicle Security Light - If Equipped
19. Brake Warning Light
20. O/D (Overdrive) OFF Indicator Light
21. Seat Belt Reminder Light
22. Temperature Gauge
