Gearshift Mechanism - Installation

INSTALLATION










1. Install the shift linkage assembly onto the transmission. Install the shifter roll pins (2).

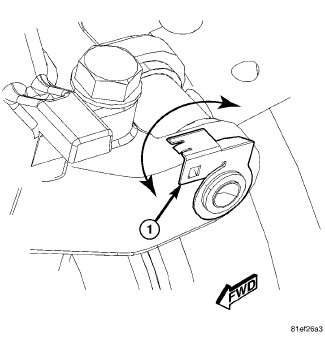

2. Rotate each of the shift linkage roll pin locking tabs (1) into place.










3. Install the shifter linkage bolt (1). Tighten the bolt to 20 Nm (15 ft. lbs.)





4. Raise the transmission into place and install transmission crossmember. Tighten crossmember bolts (1) to 61 Nm (45 ft. lbs.).
5. Install the propeller shaft center bearing support mounting bolts. Tighten the bolts to 27 Nm (20 ft. lbs.).
6. Align the propeller shaft with the pre-scribed marks. Install the propeller shaft flange mounting bolts. Tighten the bolts to 58 Nm (43 ft. lbs.).
7. Install the propeller shaft center bearing heat shield
8. Install the exhaust system
9. Lower the vehicle.





10. Install the nut (1) securing the shift linkage to the vehicle. Tighten the nut to 20 Nm ( 15 ft. lbs.).





11. Install the shift lever and the bolts (1). Tighten the bolts to 20 Nm ( 15 ft. lbs.).
12. Install the shift lever bezel.
