Diesel Data
: Automotive Repair
Home
>>
Eagle
>>
1993
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
51
Manufacturer Code Charts: 51

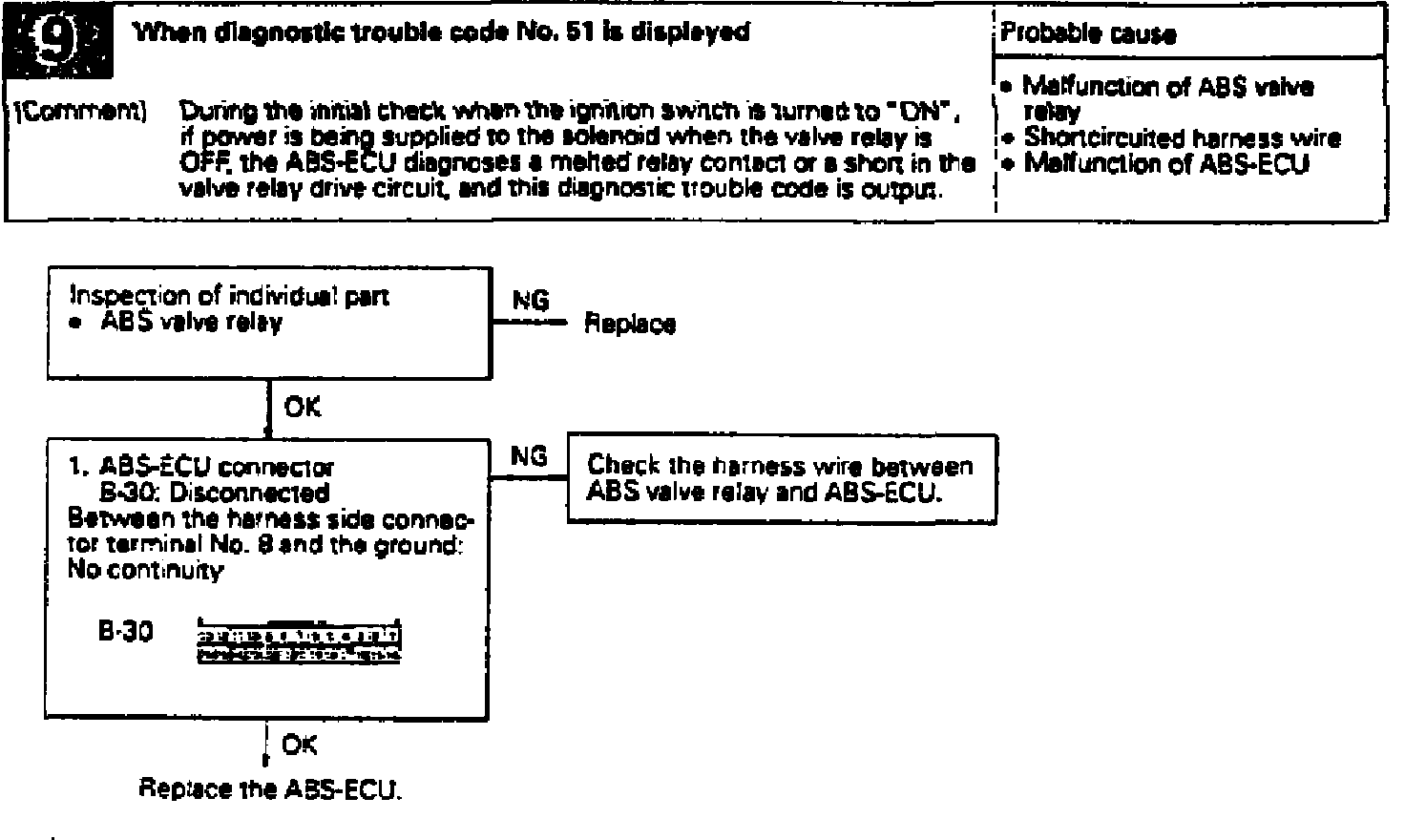

Fig. 18 Diagnostic Trouble Code Chart 9:
