Diagnostic Trouble Symptom Chart 4
Diagnostic Trouble Symptom Chart 4

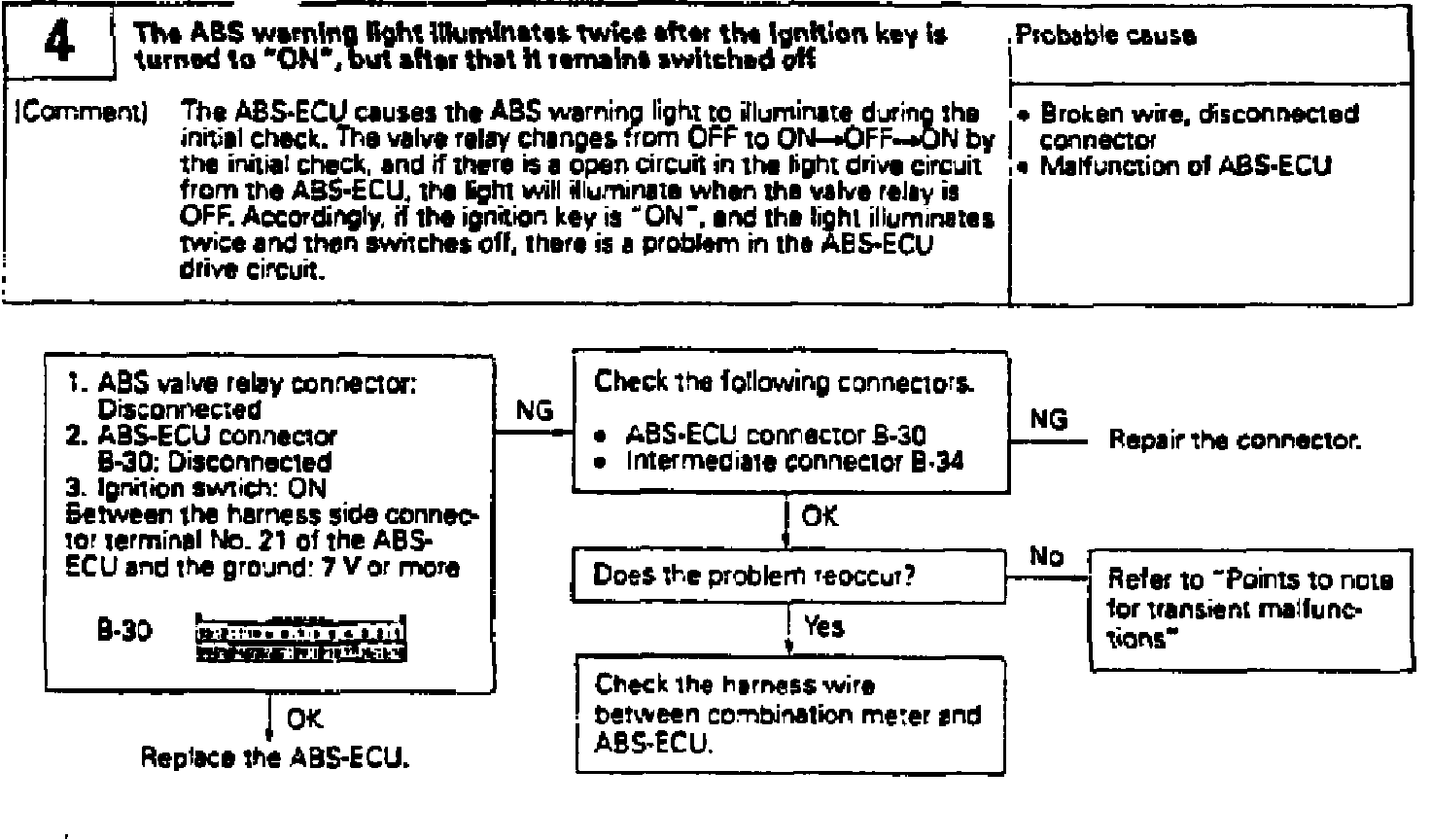

Fig. 27 Diagnostic Trouble Symptom Chart 4:
