Home
>>
Eagle
>>
1993
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>

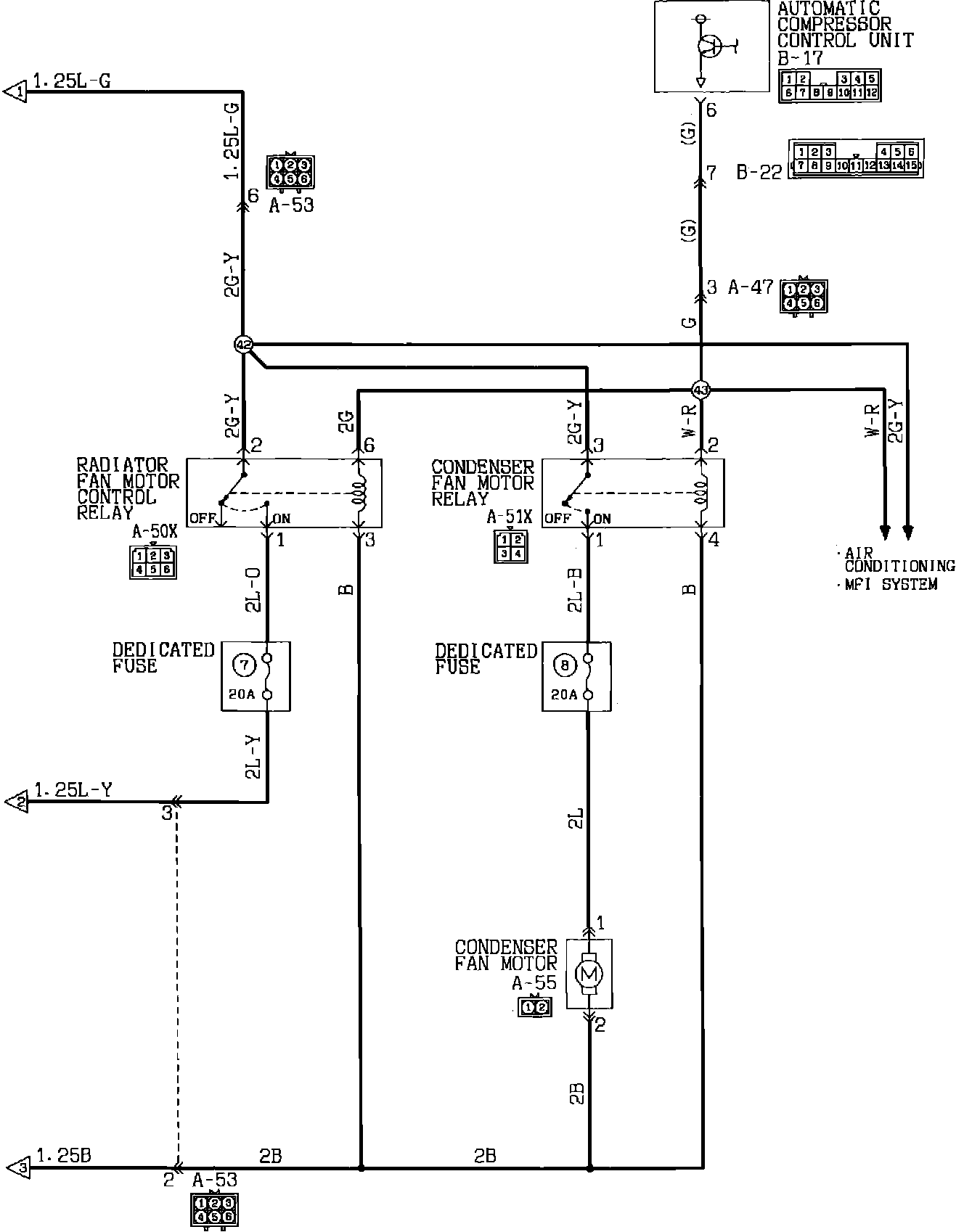

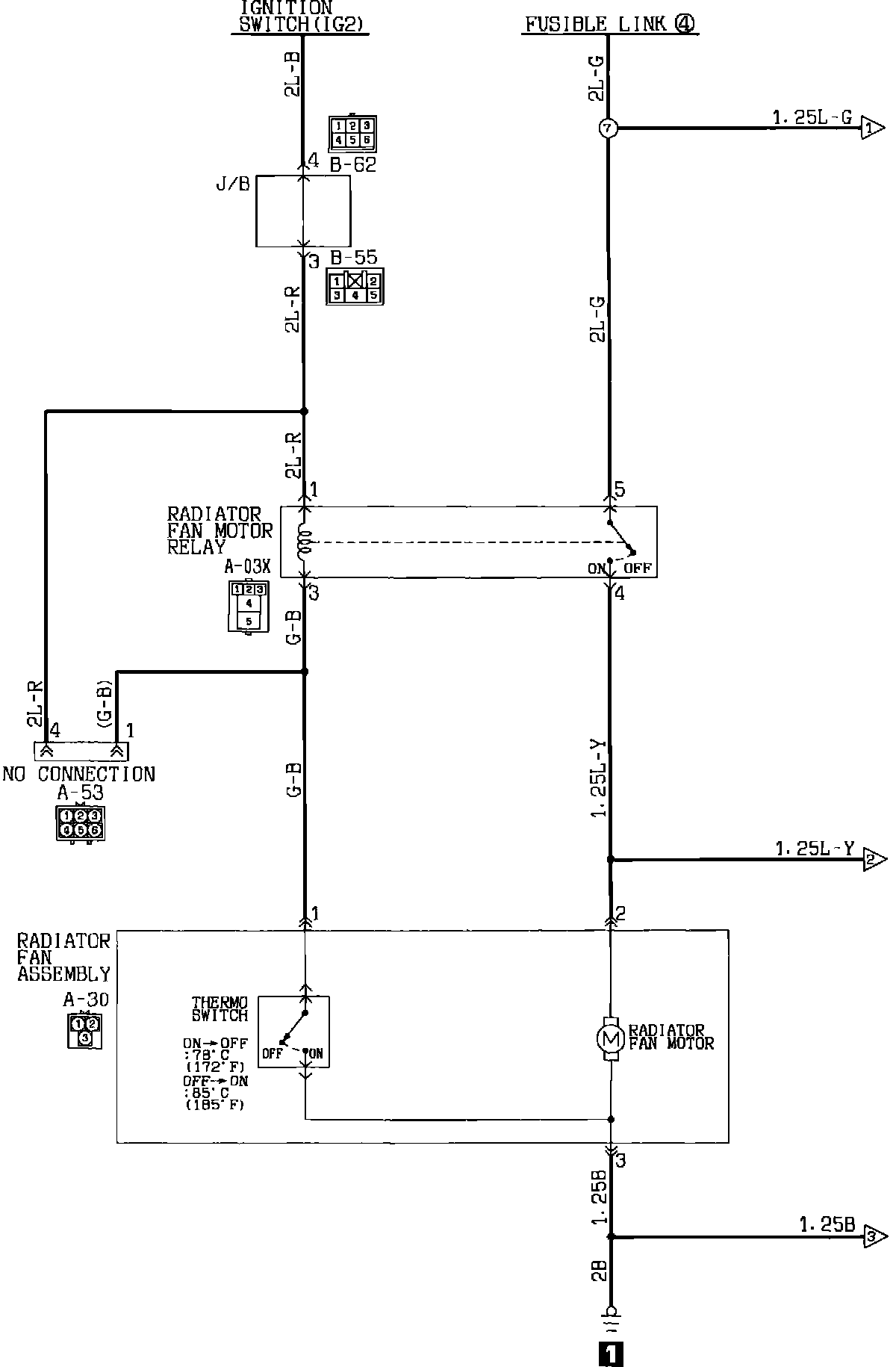

Radiator Cooling Fan Temperature Sensor / Switch
>>
With Automatic Trans
With Automatic Trans
Automatic Transmission:
Automatic Transmission:
