Eagle
>>
1993
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>

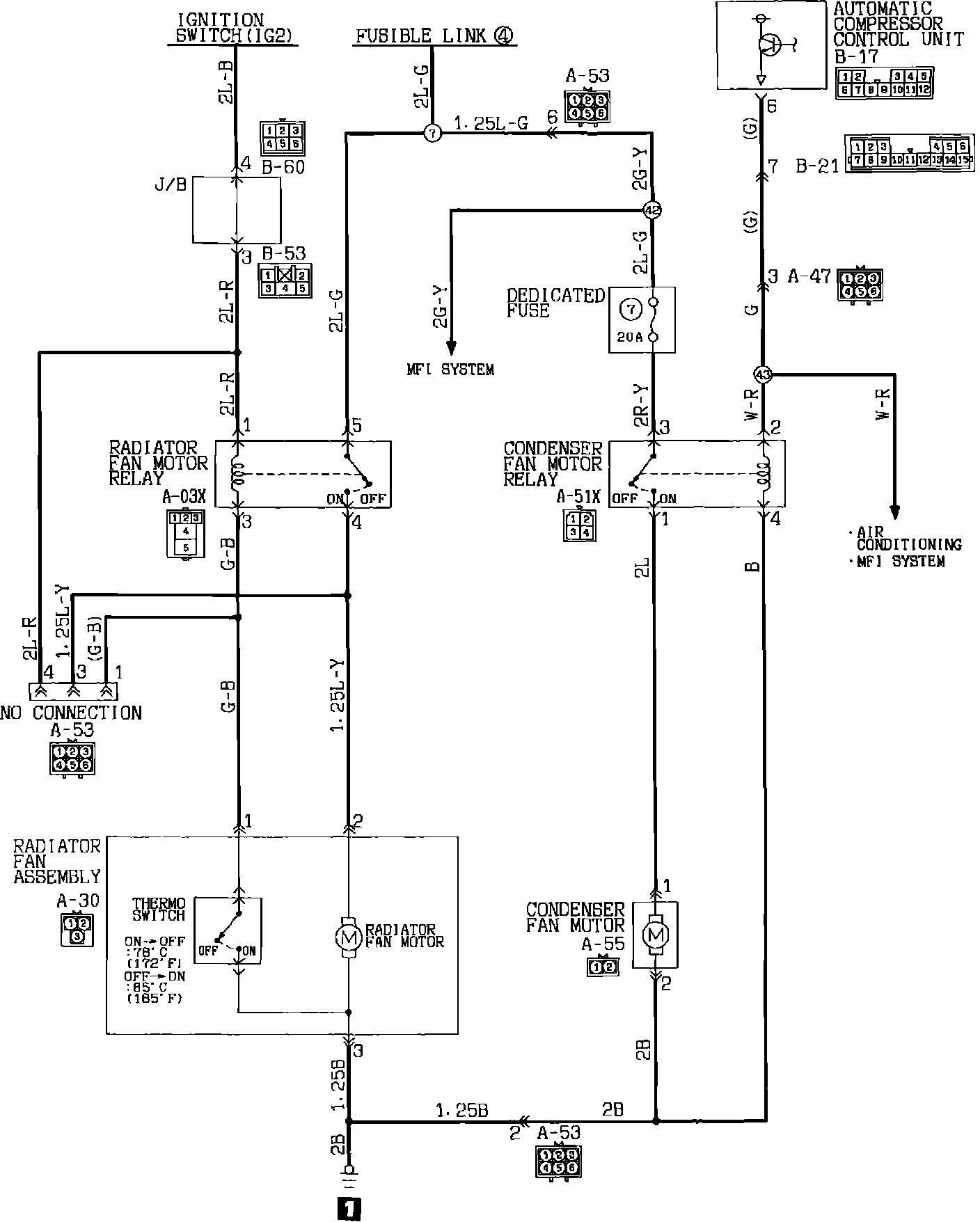

Radiator Cooling Fan Temperature Sensor / Switch
>>
With Manual Trans
With Manual Trans
Manual Transmission:
