Eagle
>>
1993
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
Radio/Stereo

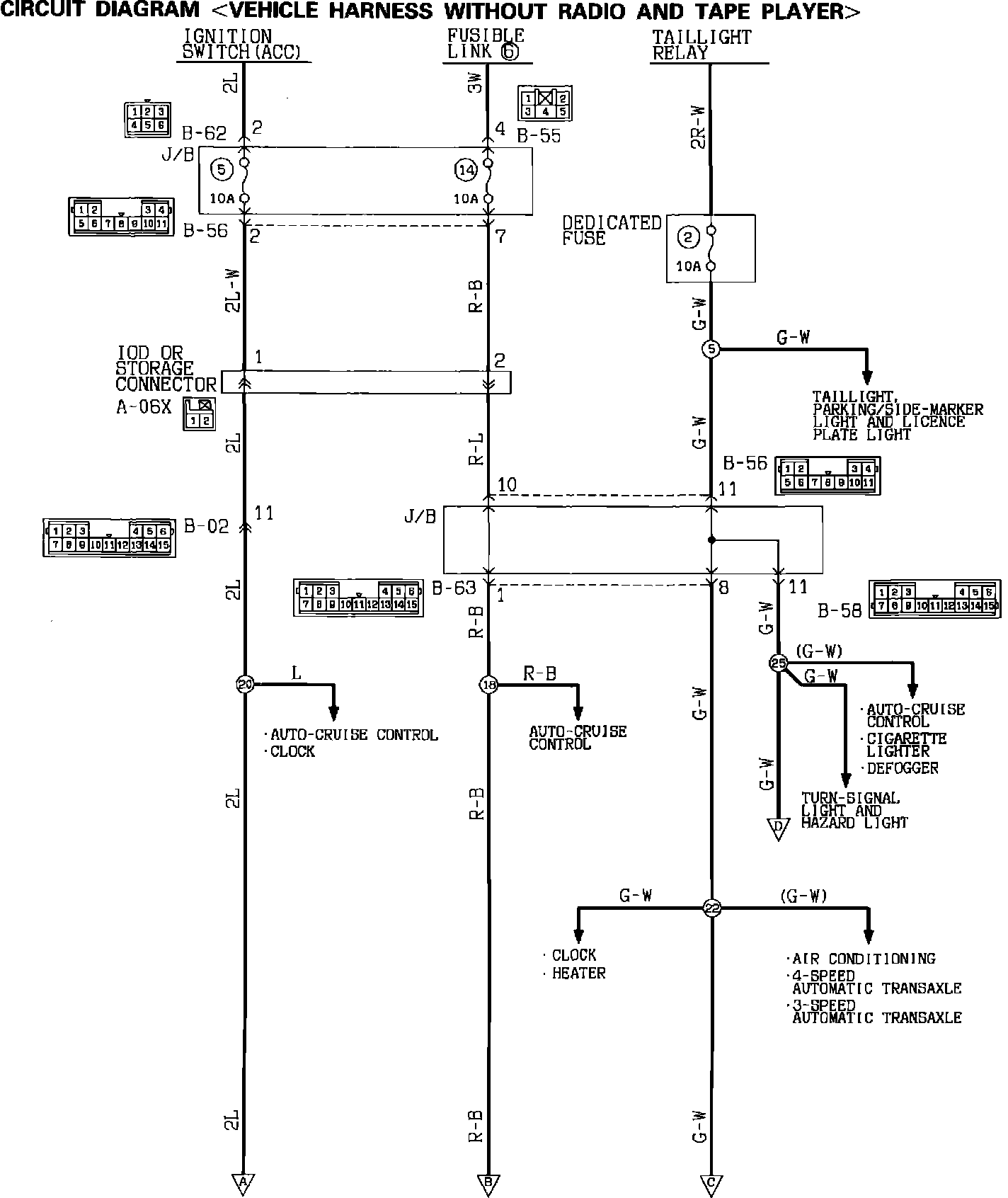

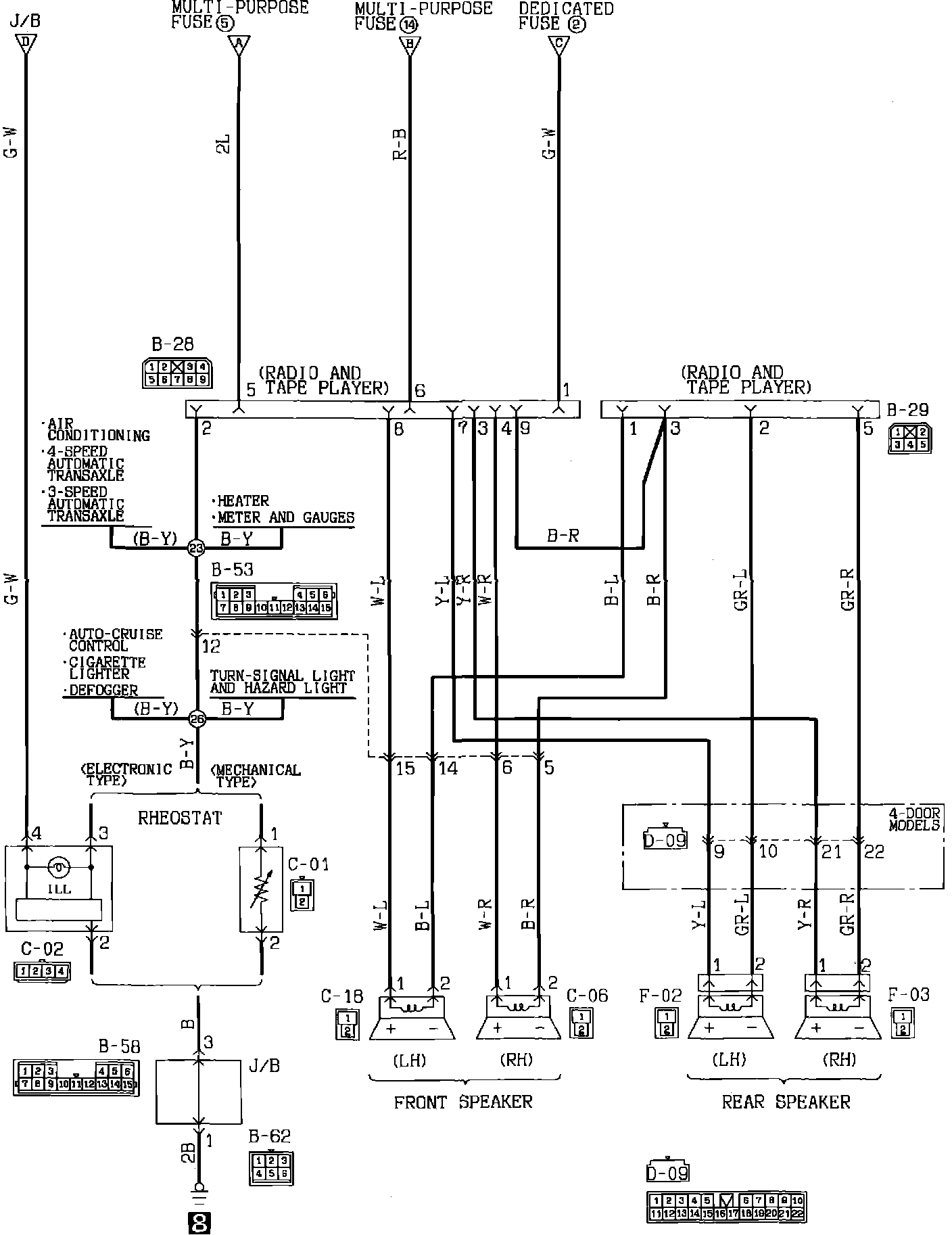

Radio And Tape Player Circuit:
Radio And Tape Player Circuit:
