Eagle
>>
1993
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

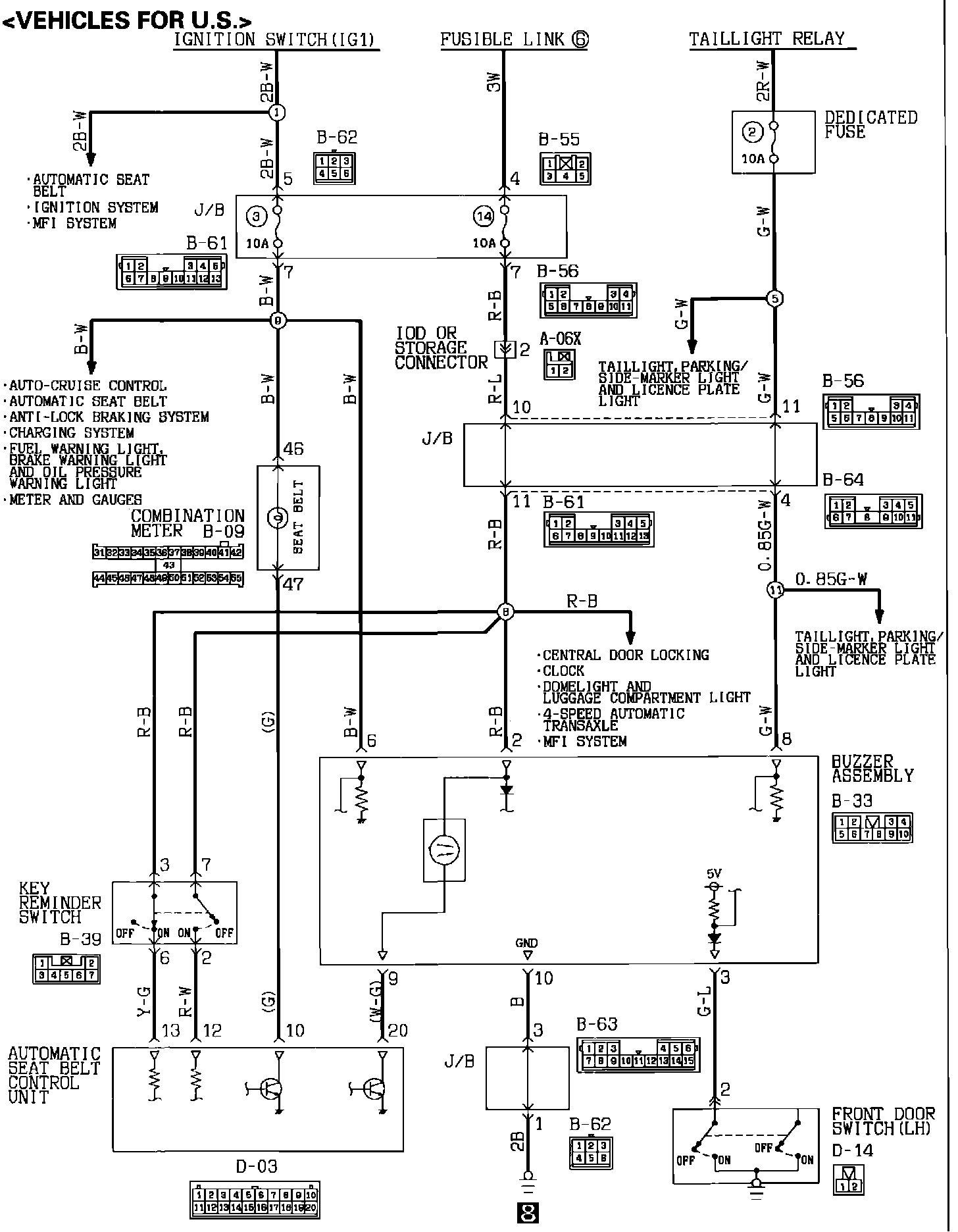

Buzzer Circuit:

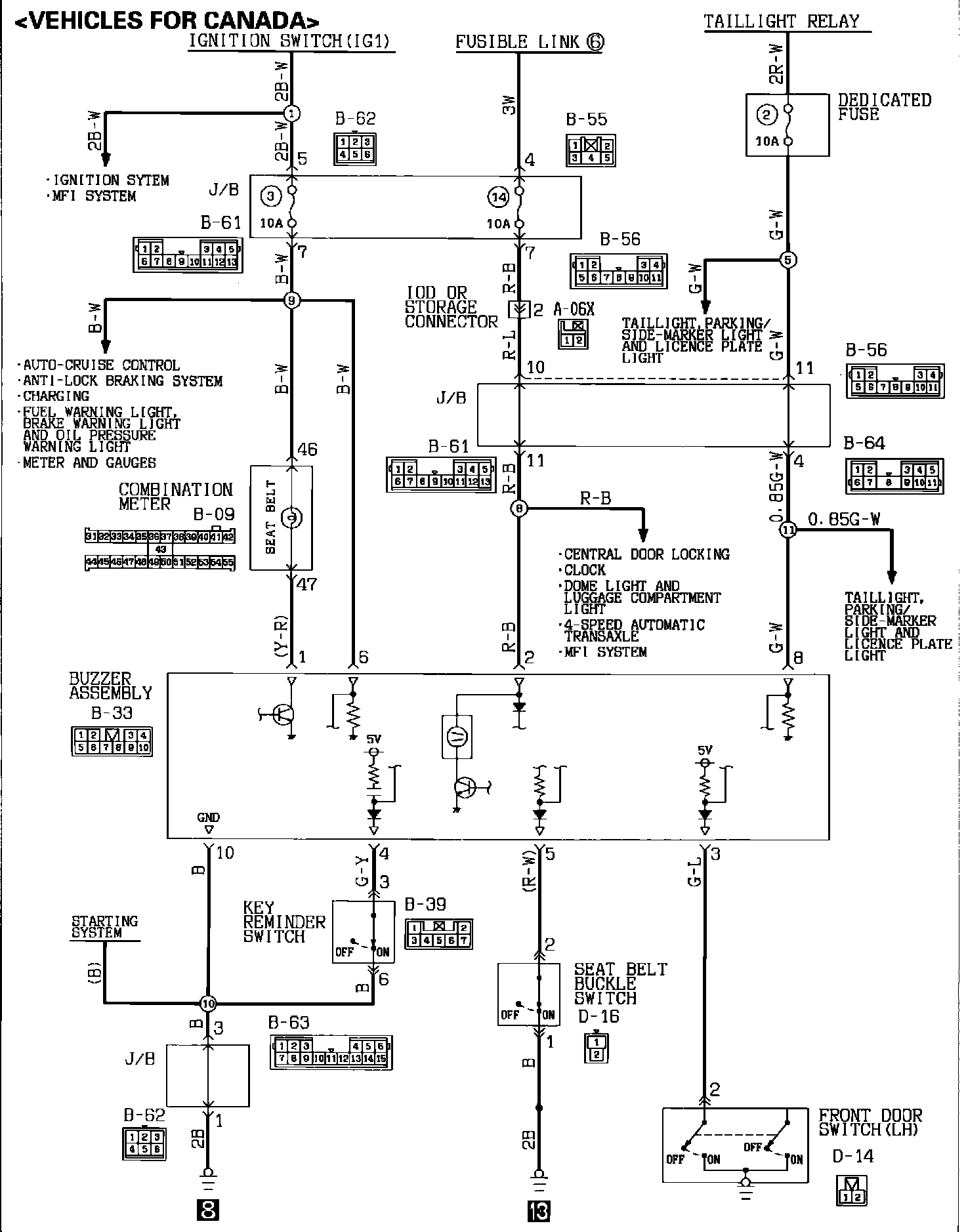

Buzzer Circuit:
