Electrical Diagrams

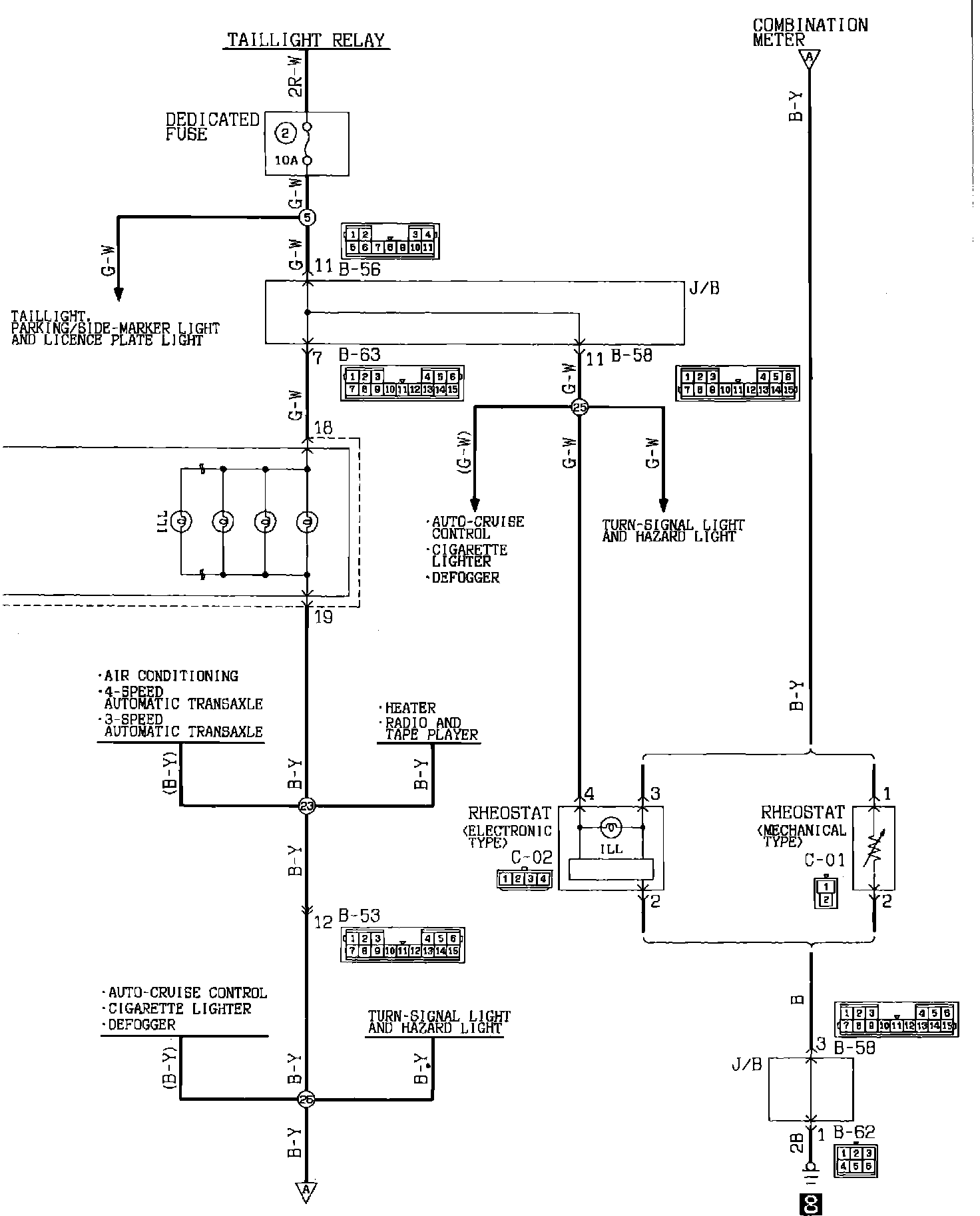

Meters And Gauges Circuit Diagram:

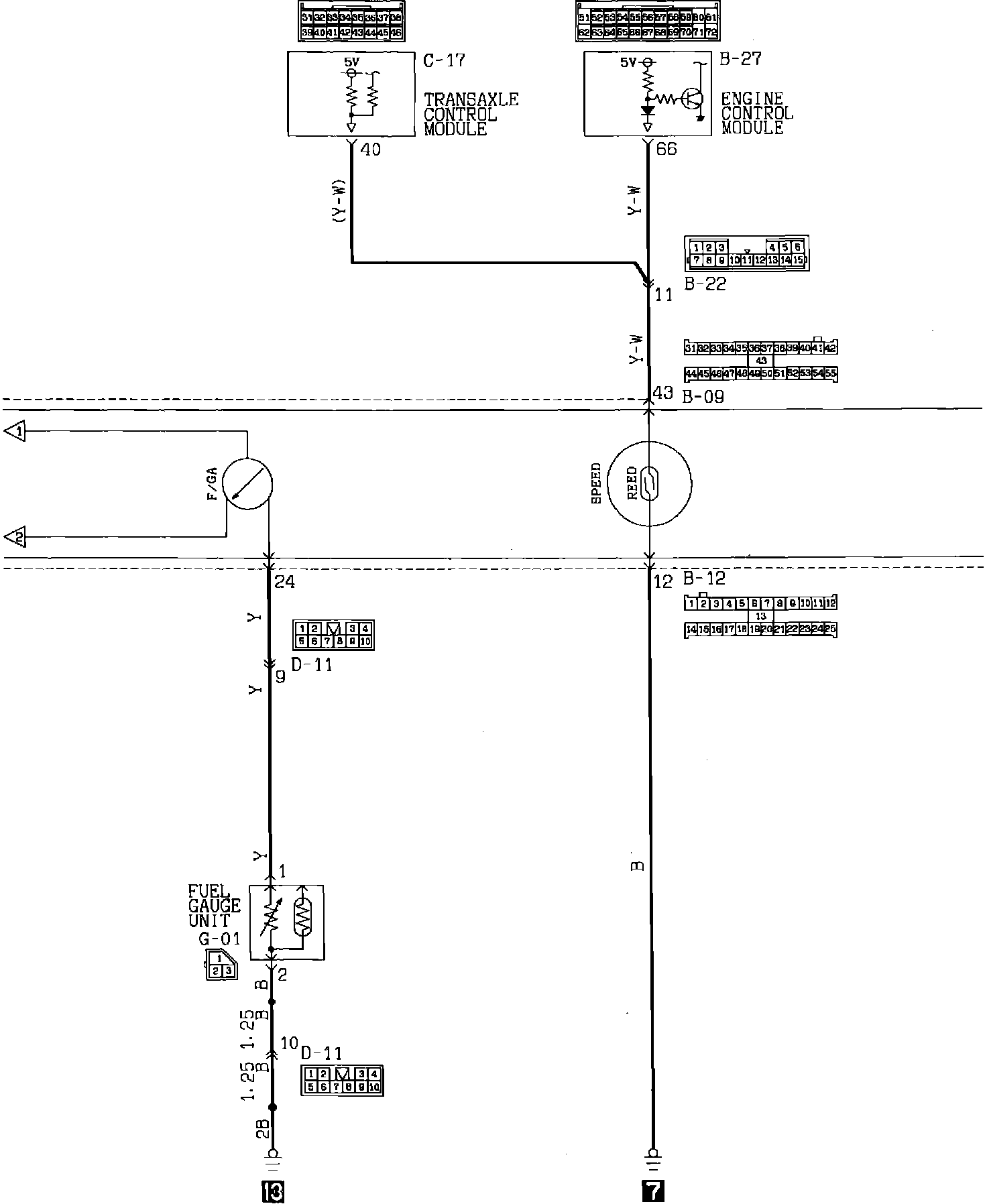

Meters And Gauges Circuit Diagram:

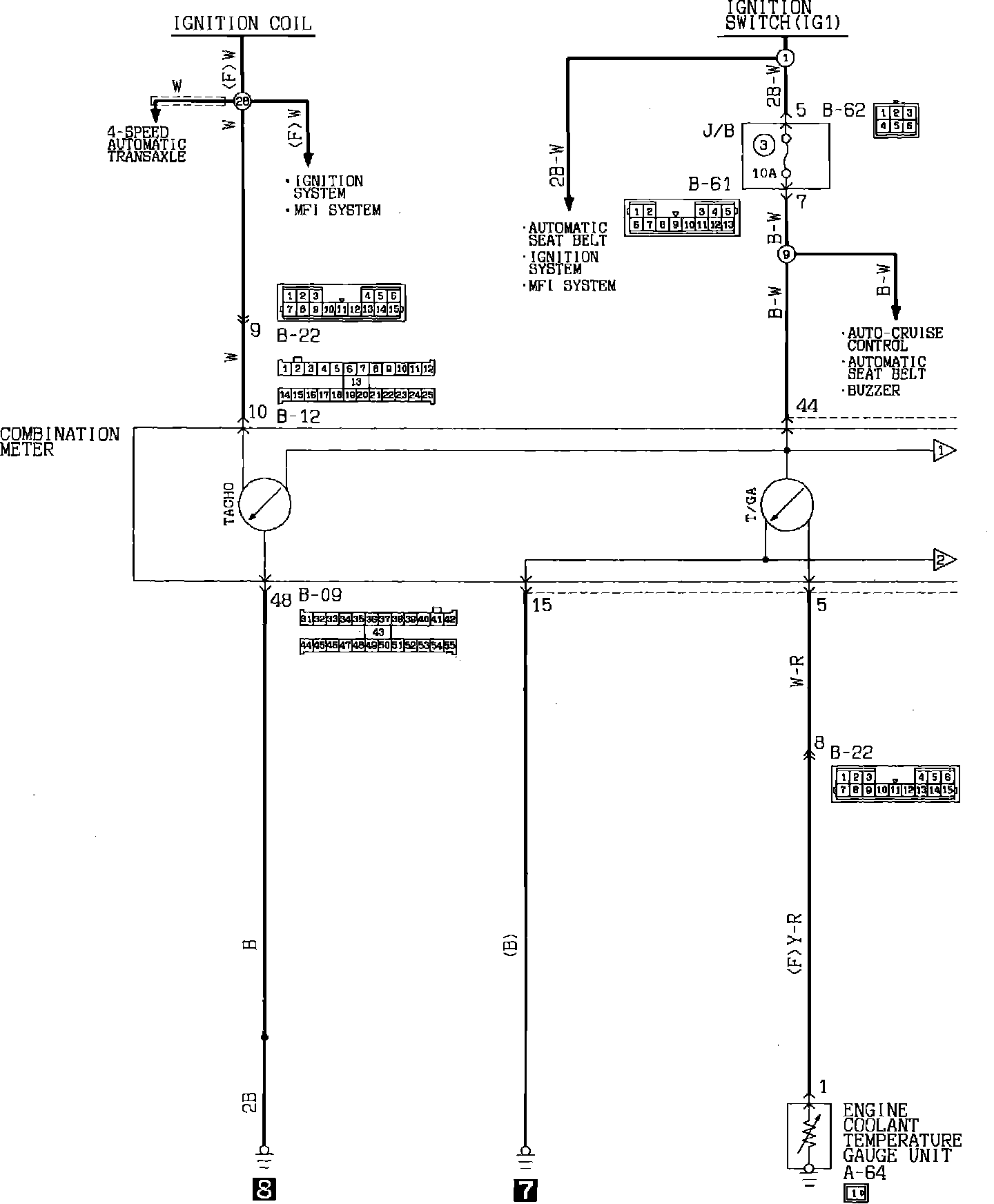

Meters And Gauges Circuit Diagram:
