Canister Purge Solenoid: Locations

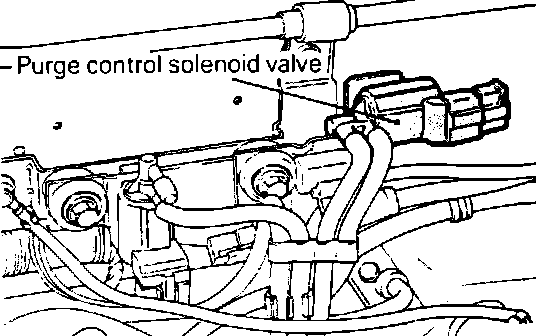

Purge Control Solenoid Location:





On the firewall, near the top, at the center.
