Diesel Data
: Automotive Repair
Home
>>
Eagle
>>
1993
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Locations
Transmission Control Systems: Locations

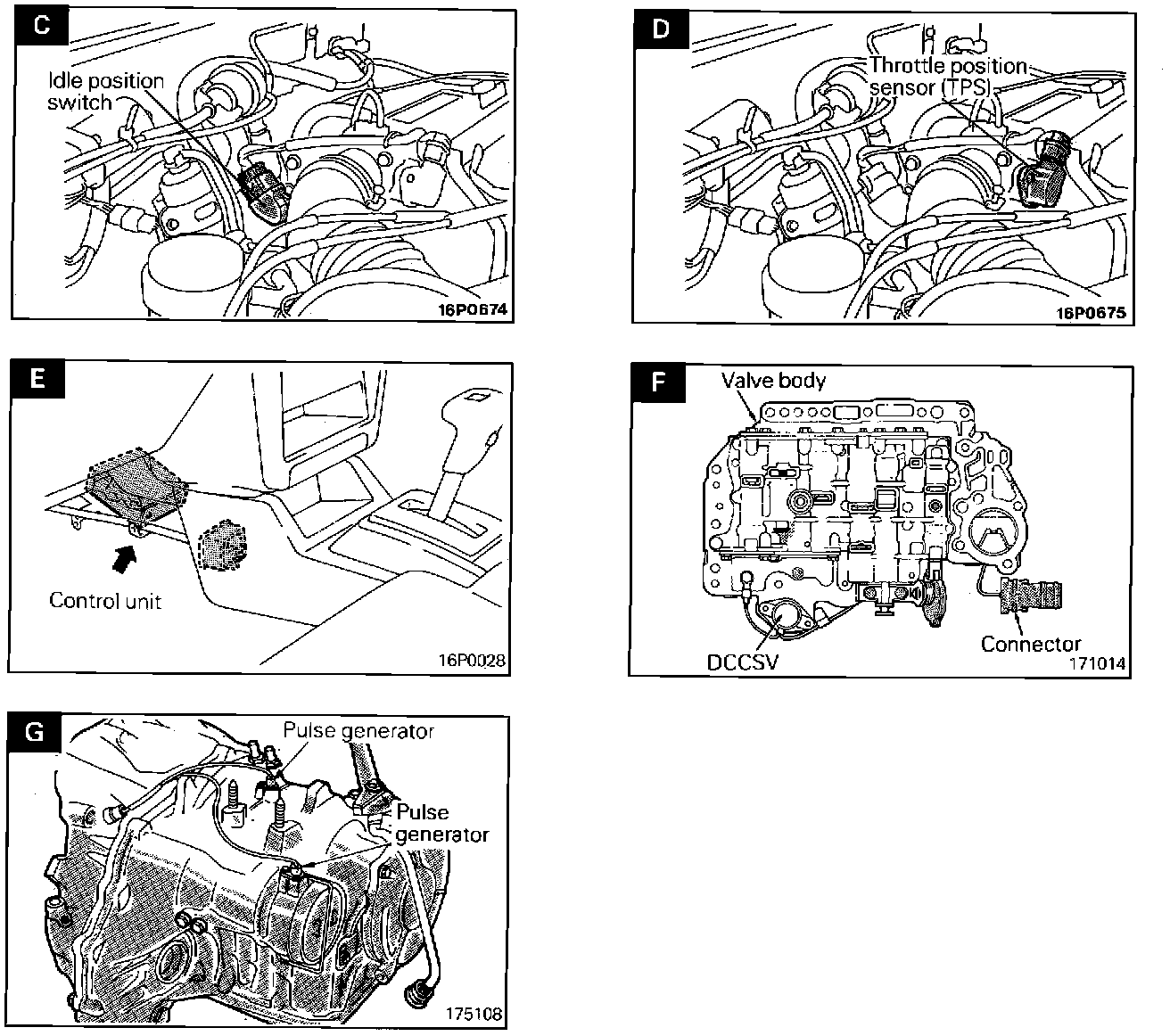

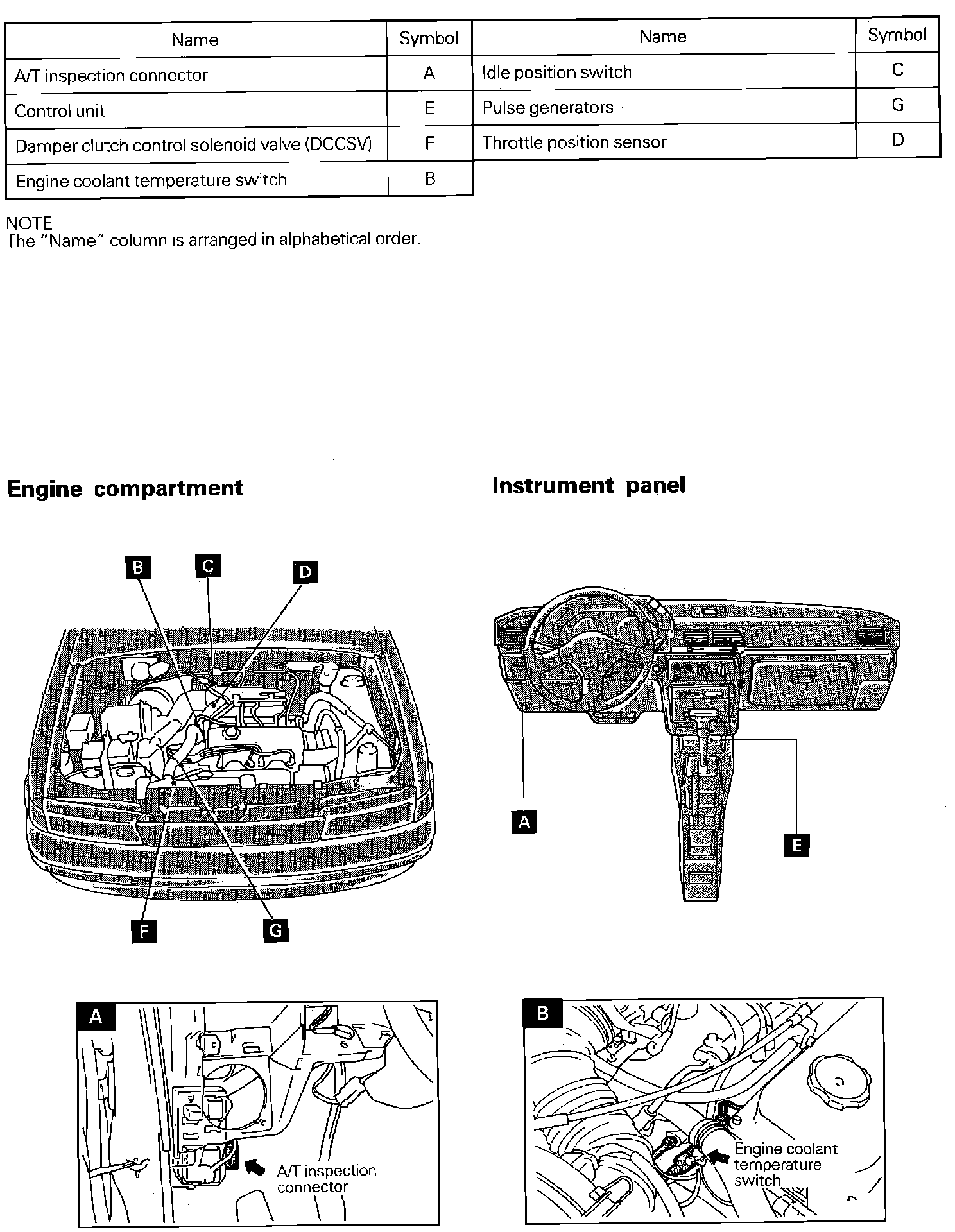

Component/Relay/Switch Locations (Automatic Transaxle, 3-Speed):
Component/Relay/Switch Locations (Automatic Transaxle, 3-Speed):
