Shoulder Belt Replacement

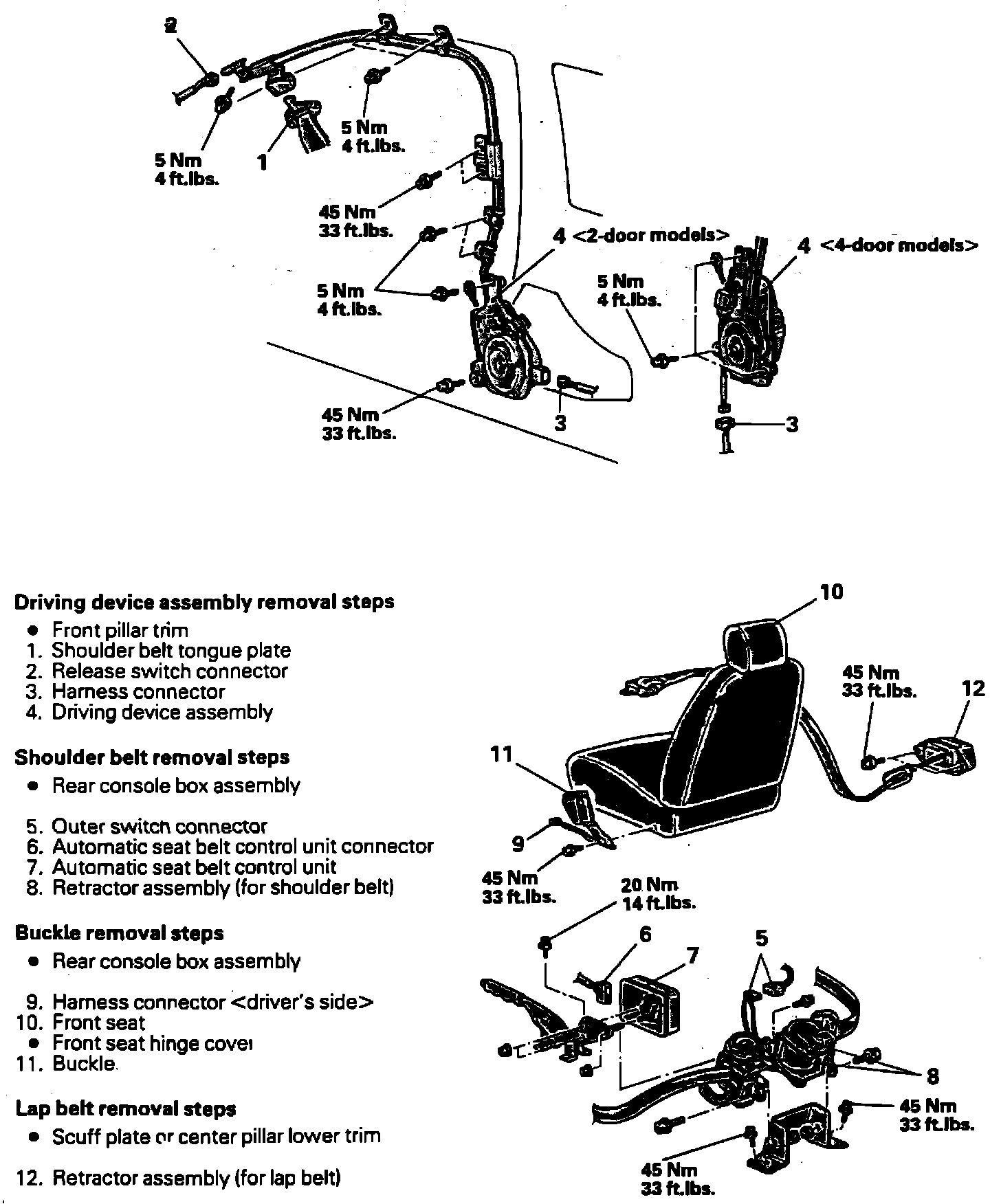

Fig. 148 Automatic Seat Belt System Components:

1. Remove shoulder belt tongue plate, then the guide ring.
2. Remove rear console box.
3. Disconnect outer switch connector, then remove retractor assembly.
4. Reverse procedure to install.
