A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
2 and 3 Digit Codes
2 and 3 Digit Codes

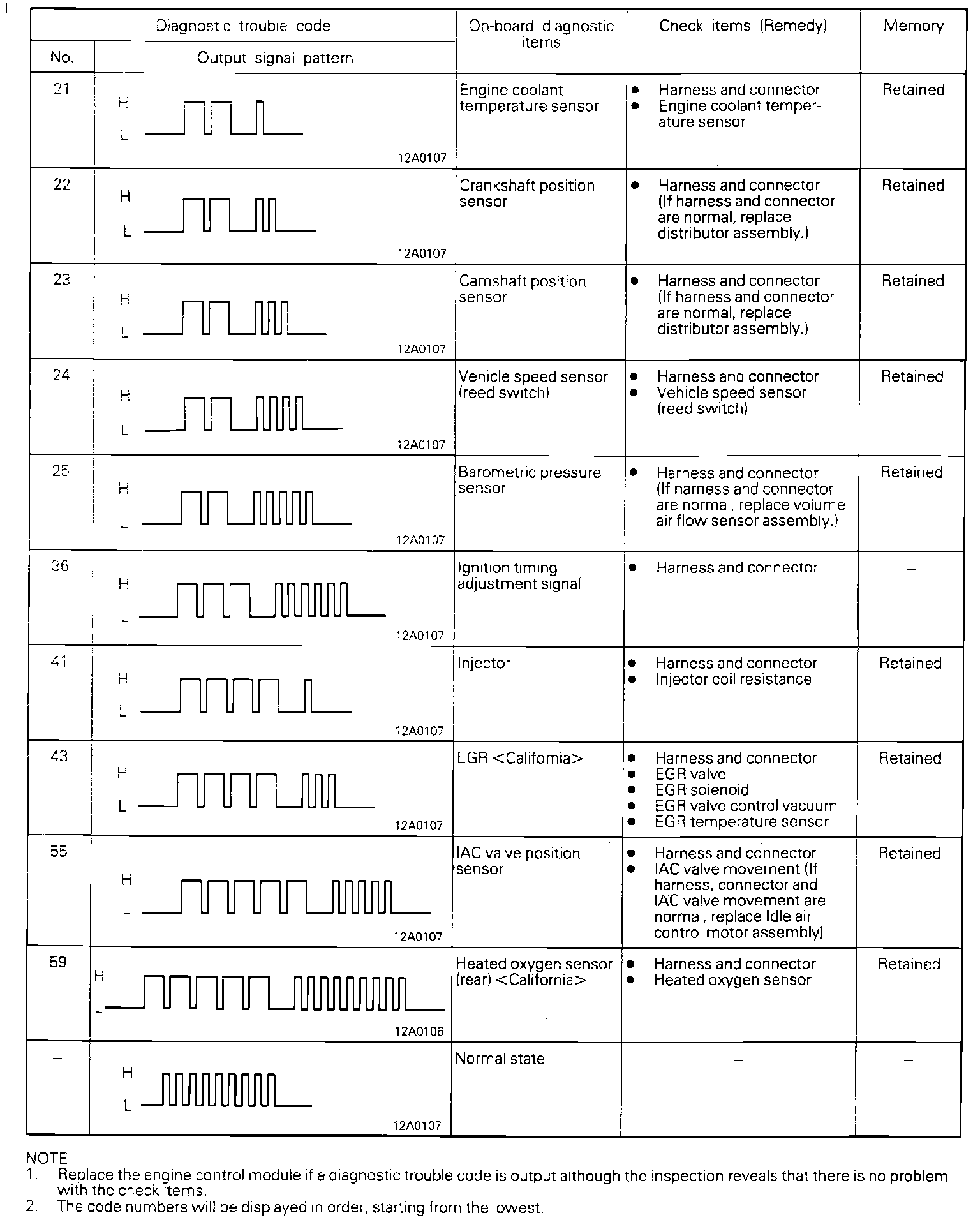

Fault Code Chart:
21 - 59:

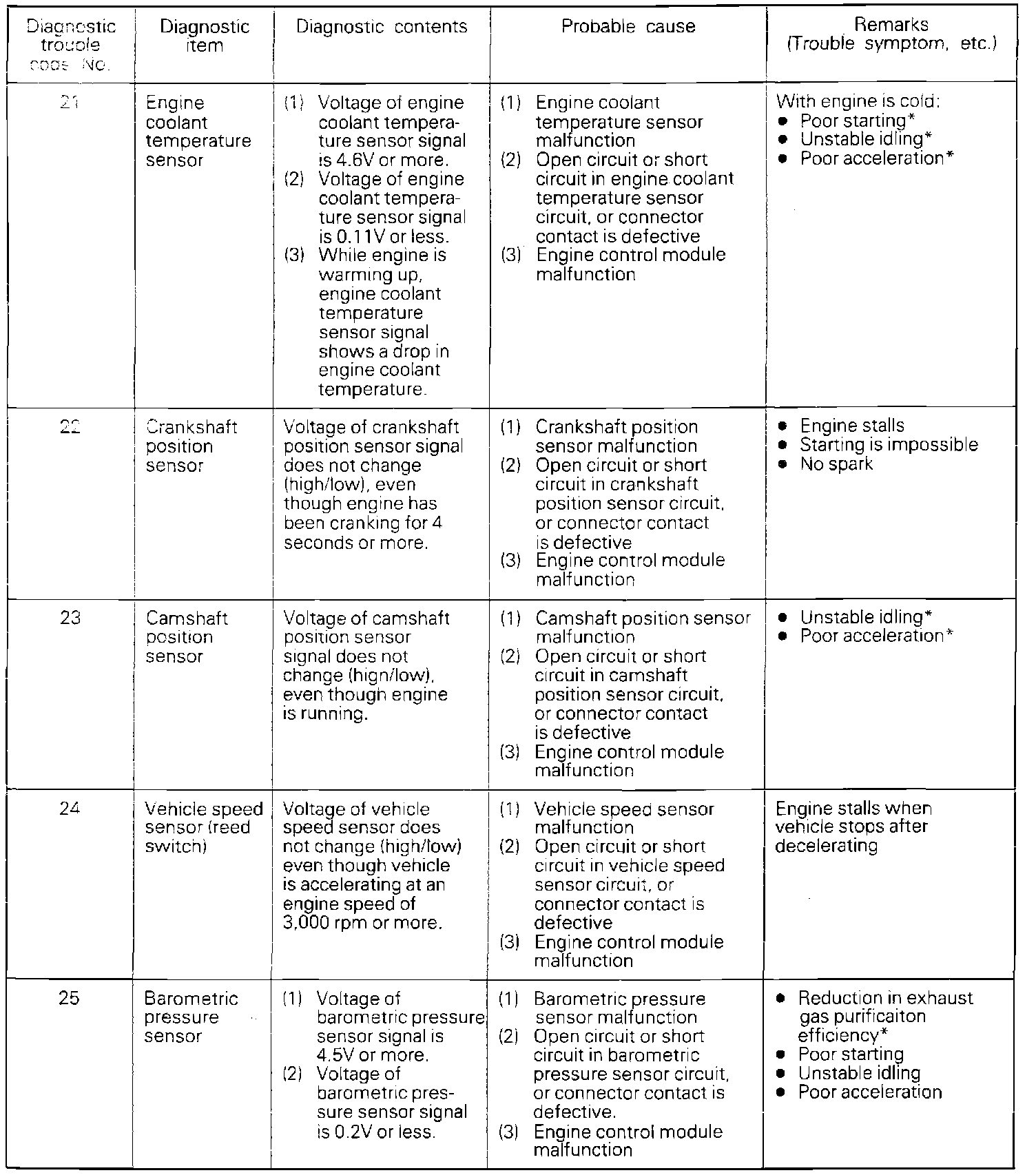

Fault Code Cause And Effect Chart:
Fault Code Cause And Effect Chart:

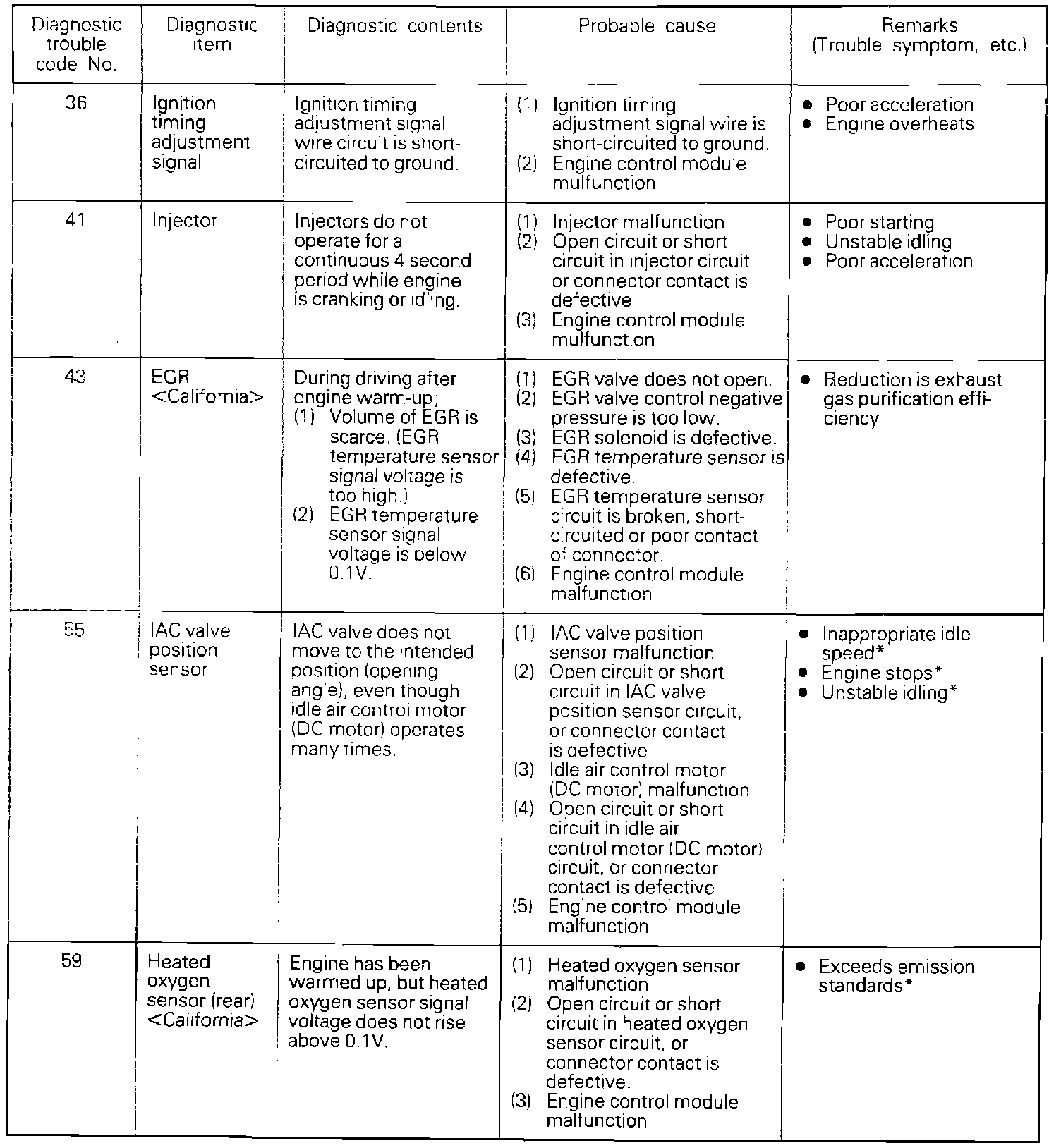

36 - 59:
