Antilock Brakes / Traction Control Systems: Locations

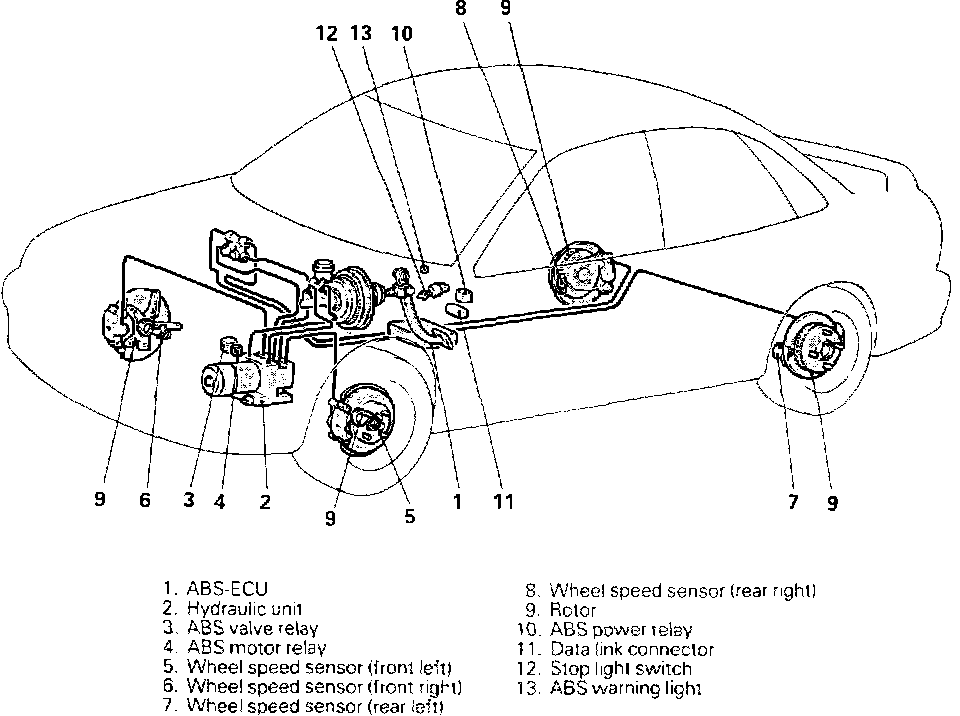

Fig. 2 ABS Component Locations:

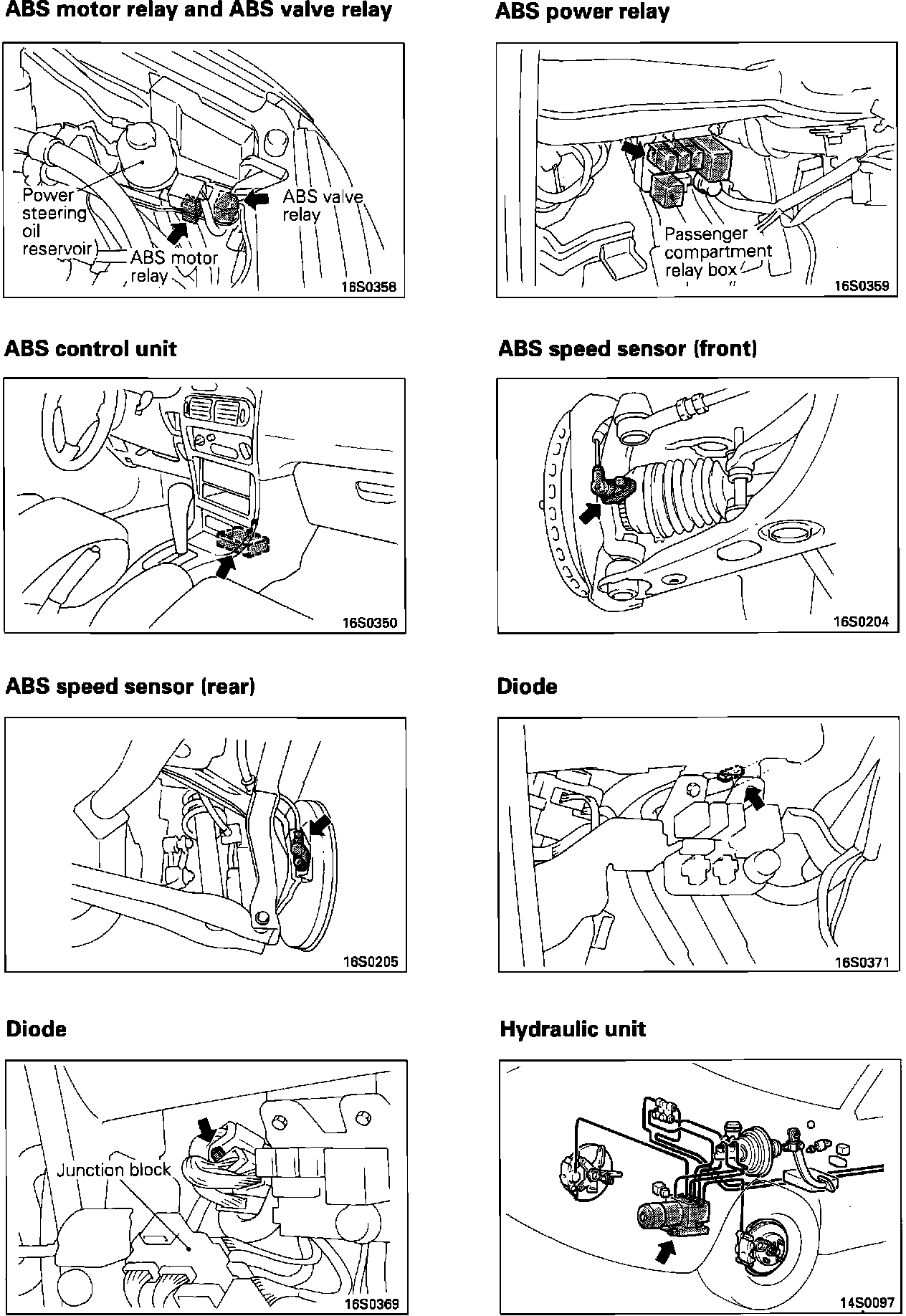

Anti-lock Brake System Component Locations:

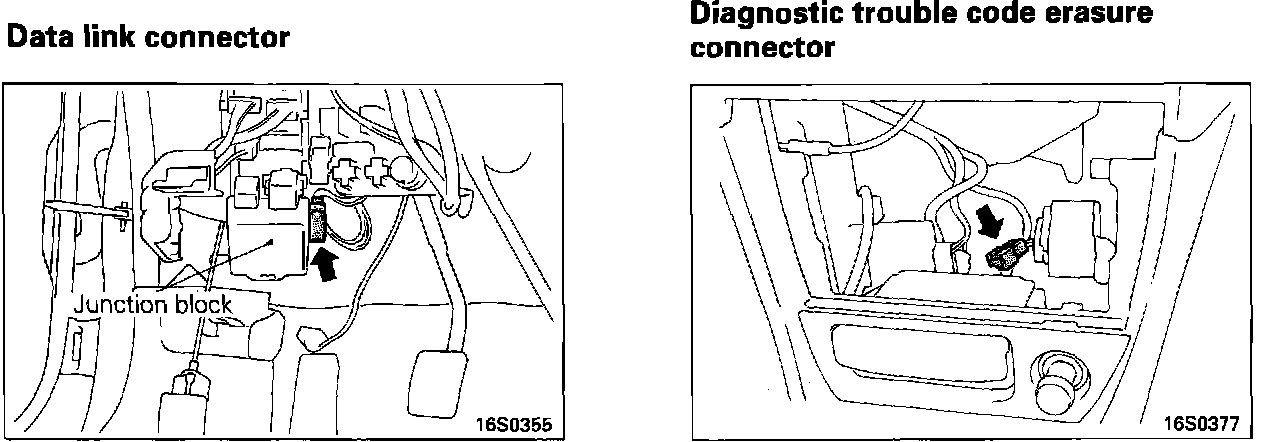

Anti-lock Brake System Component Locations:
