1993
>>
Summit L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnosis Chart
Symptom Diagnosis Chart

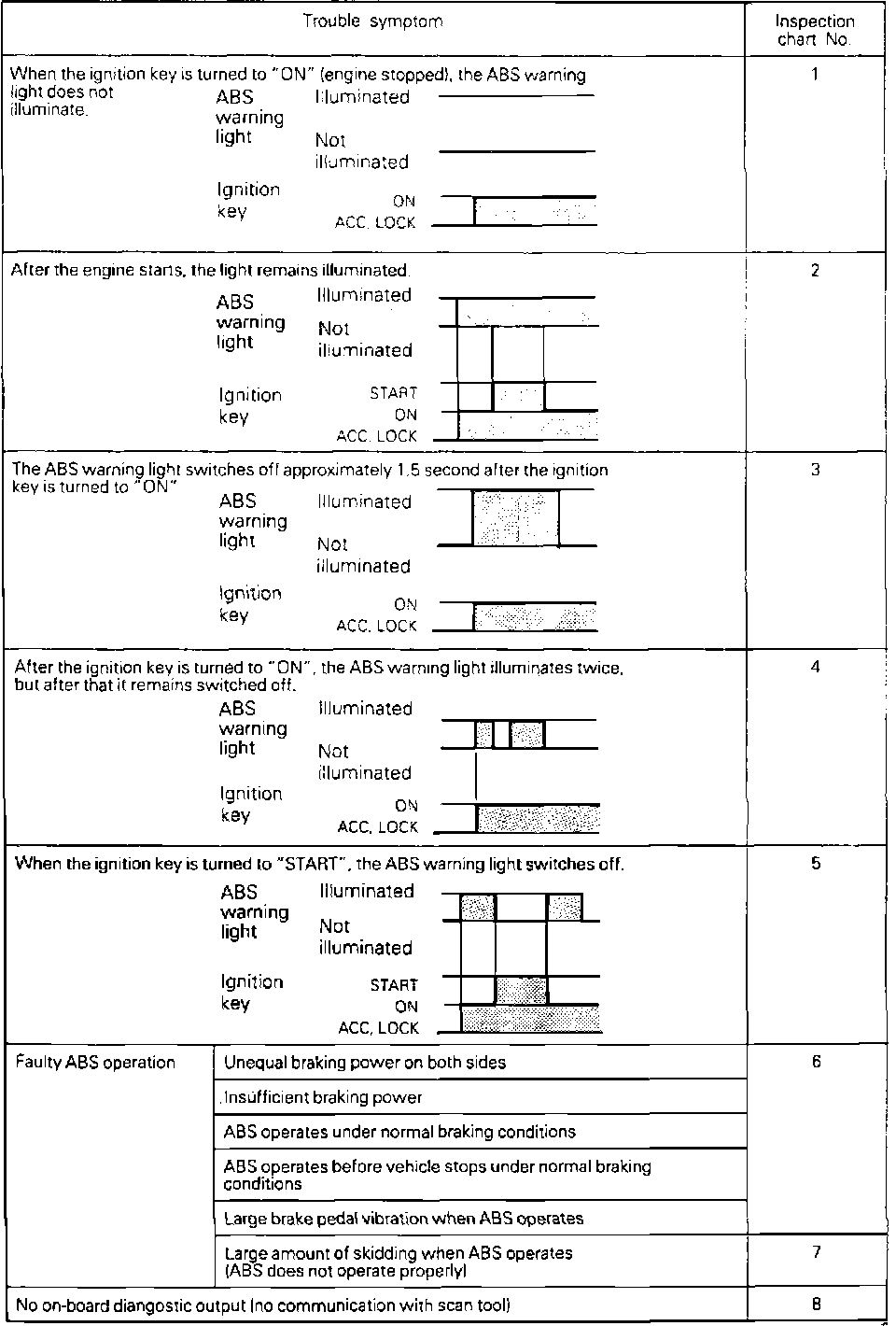

Fig. 6 Diagnostic Trouble Symptom Quick Reference Chart:
