Diesel Data
: Automotive Repair
Home
>>
Eagle
>>
1993
>>
Summit L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts
>>
Diagnostic Trouble Symptom Chart 2
Diagnostic Trouble Symptom Chart 2

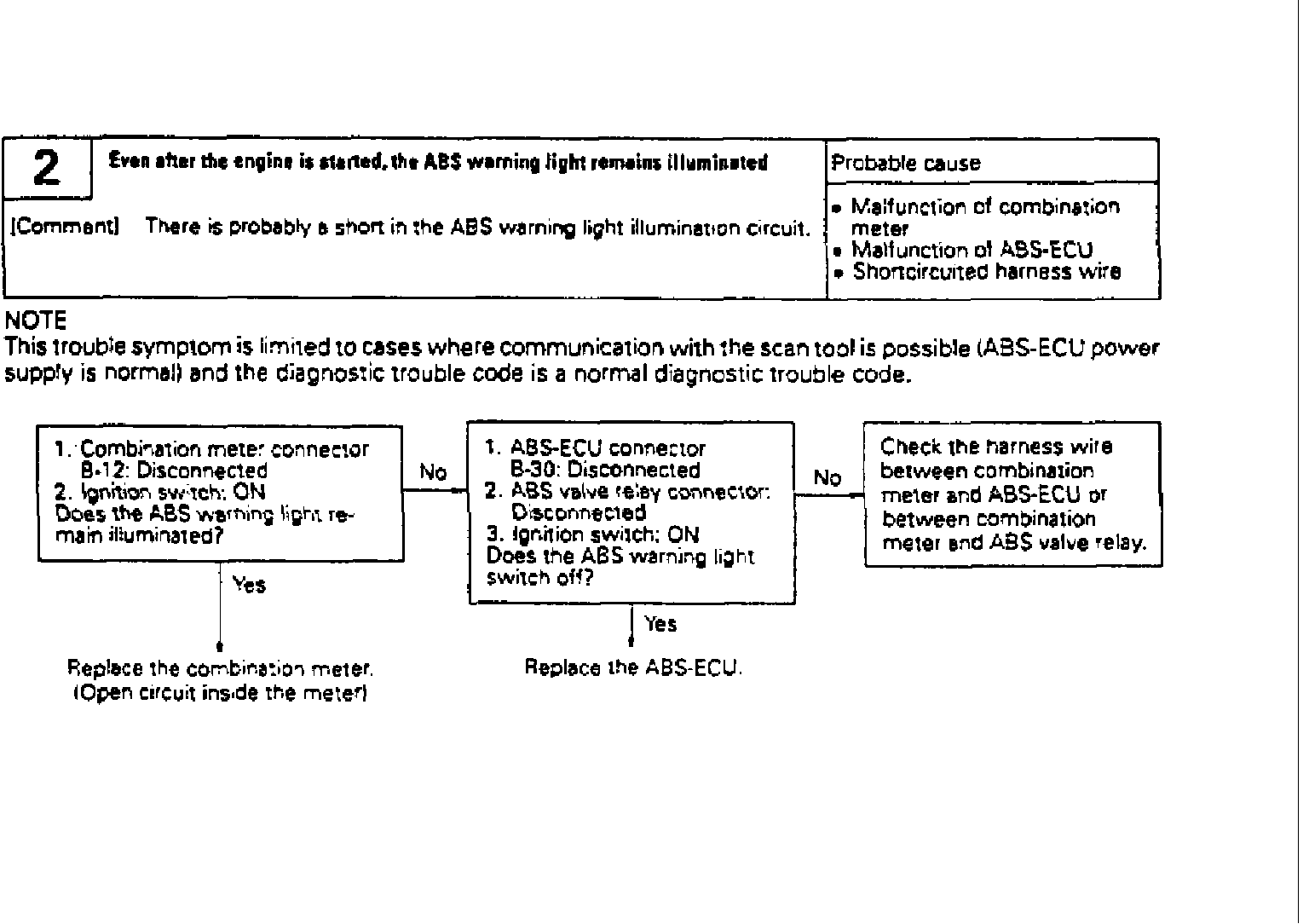

Fig. 25 Diagnostic Trouble Symptom Chart 2:
