Diagnostic Trouble Symptom Chart 5
Diagnostic Trouble Symptom Chart 5

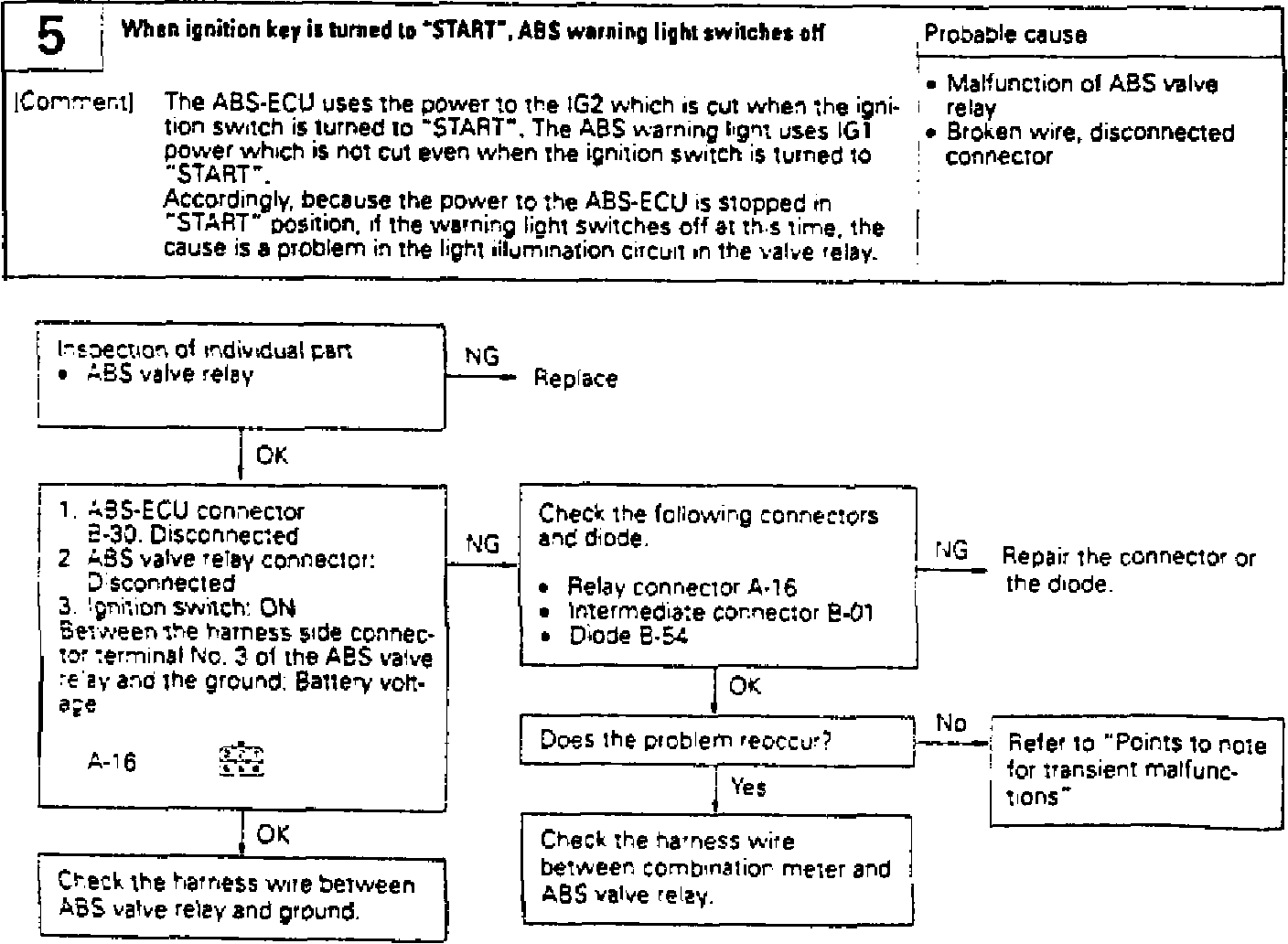

Fig. 28 Diagnostic Trouble Symptom Chart 5:
