Diagnostic Trouble Symptom Chart 6
Diagnostic Trouble Symptom Chart 6

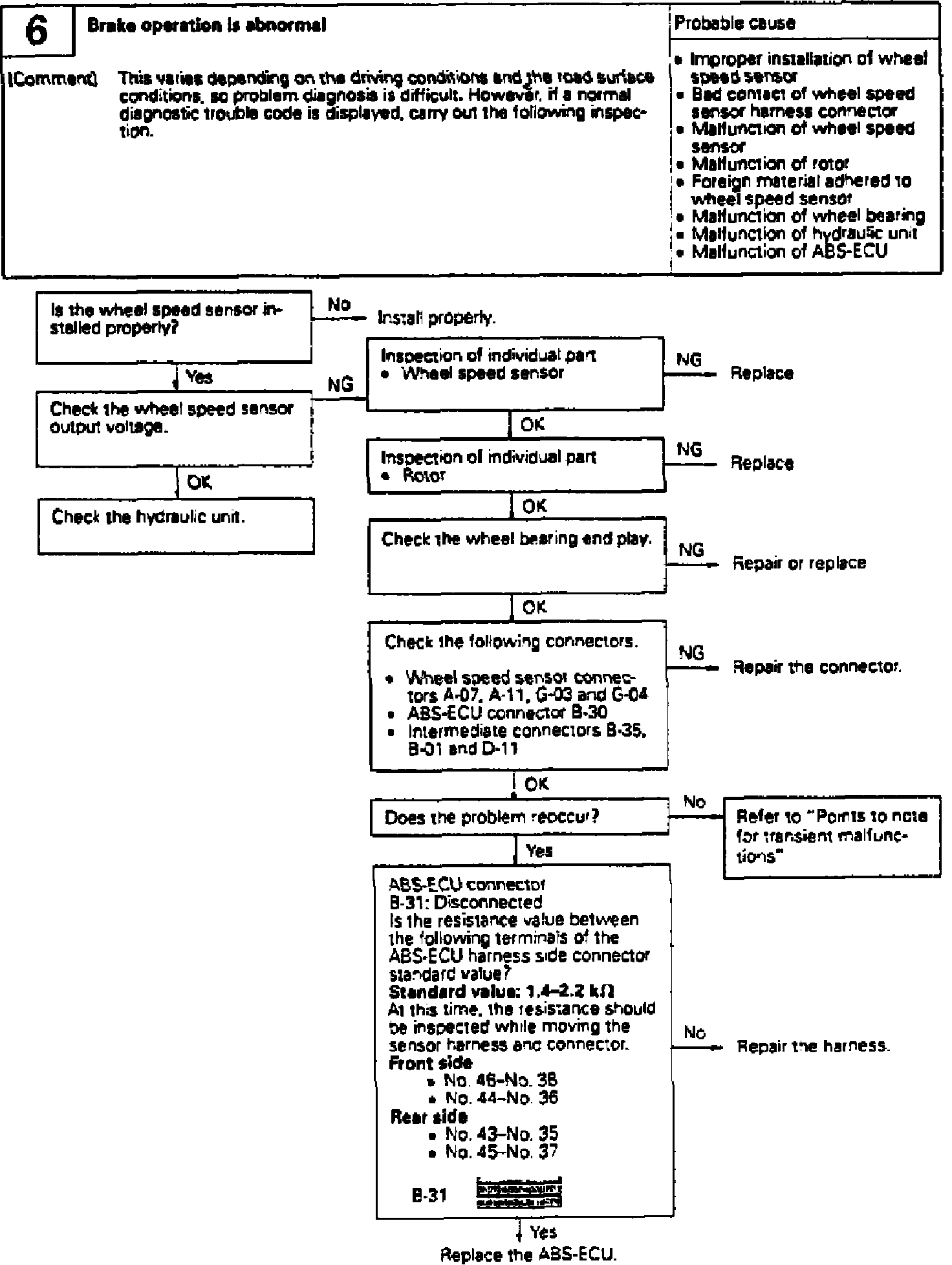

Fig. 29 Diagnostic Trouble Symptom Chart 6:
