Eagle
>>
1993
>>
Summit L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Lamp
>>
4 Door Models For U.S.
4 Door Models For U.S.

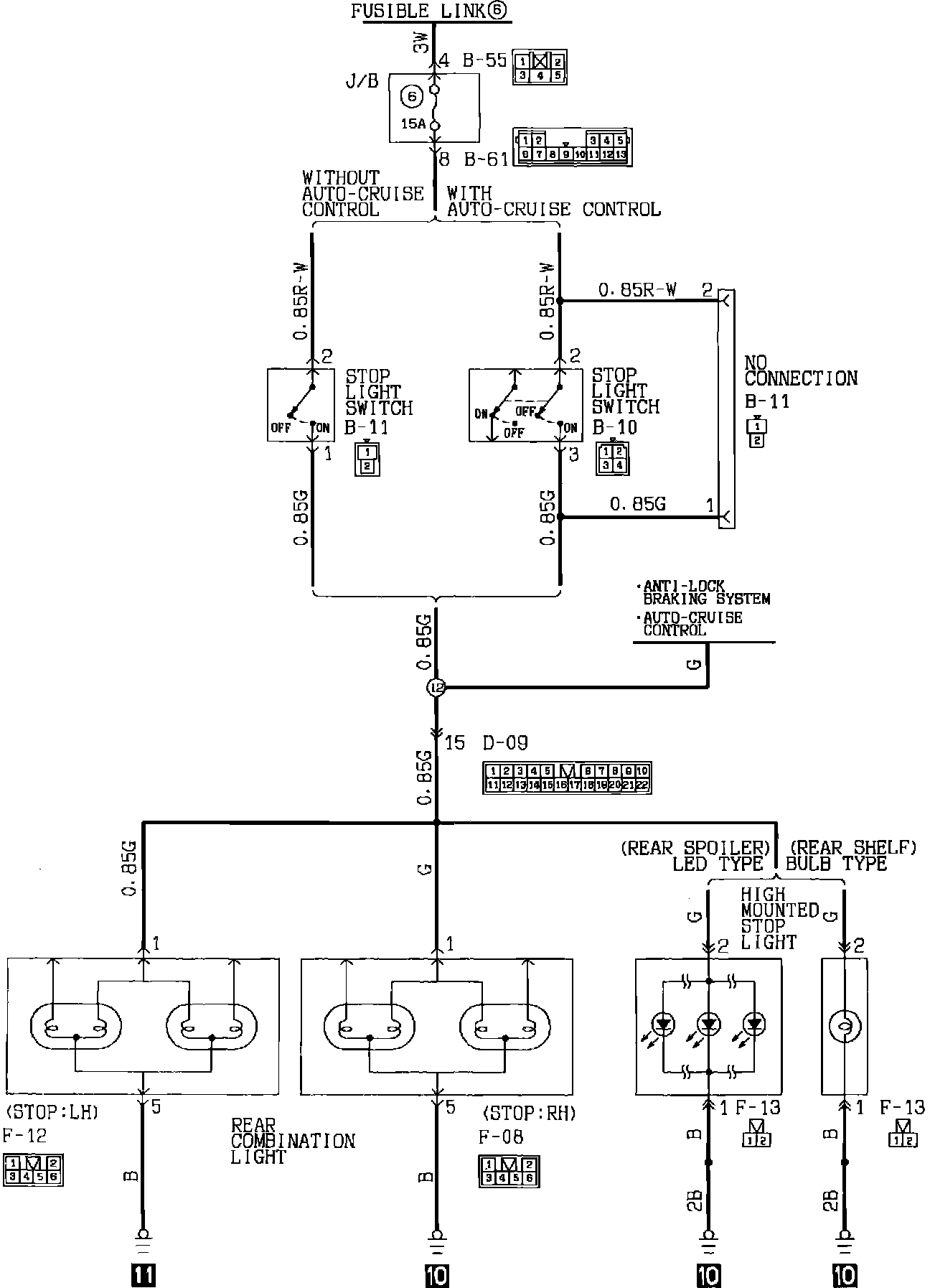

Stop Light Circuit:
