Eagle
>>
1993
>>
Summit L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
With Automatic Transmission
With Automatic Transmission

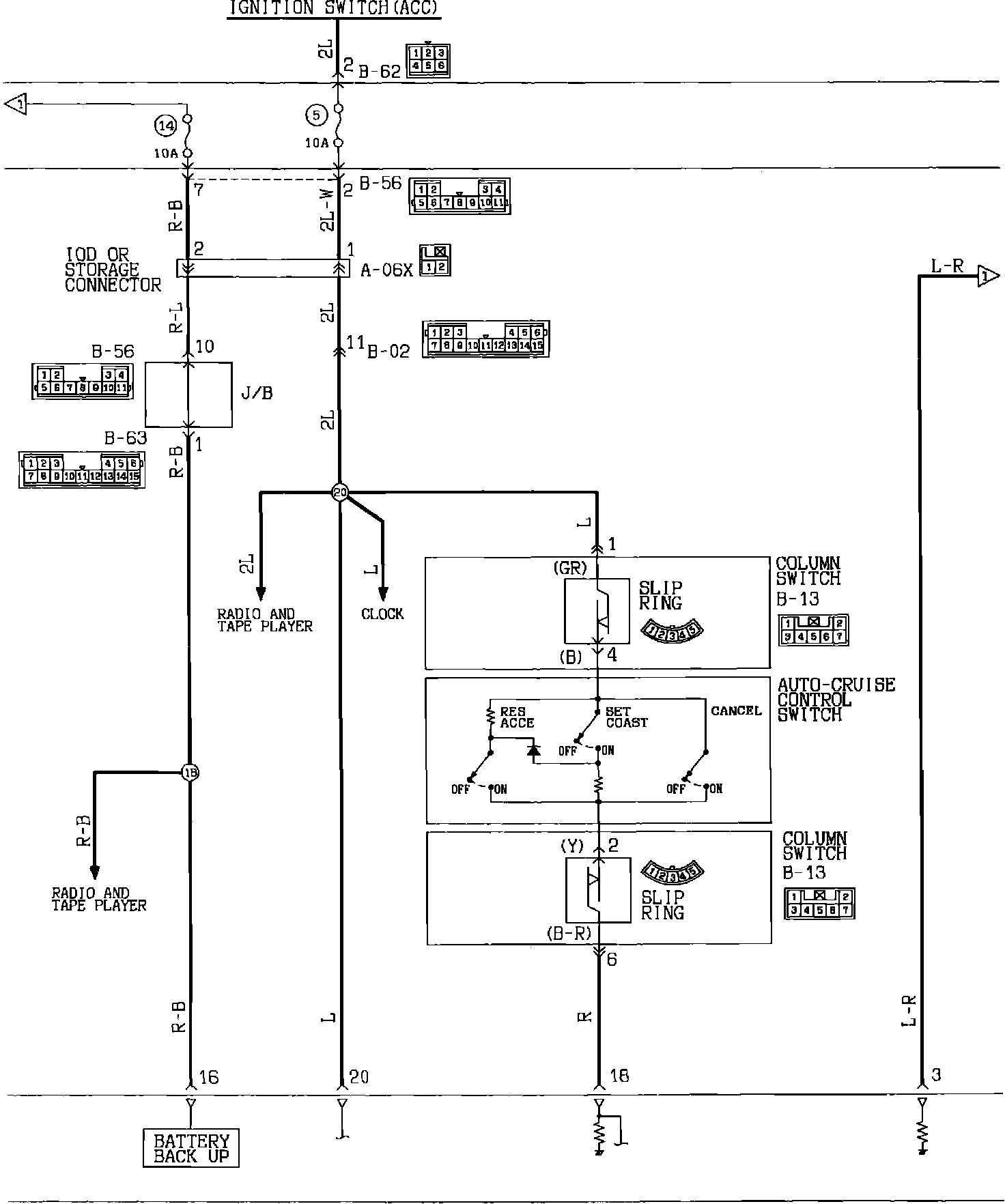

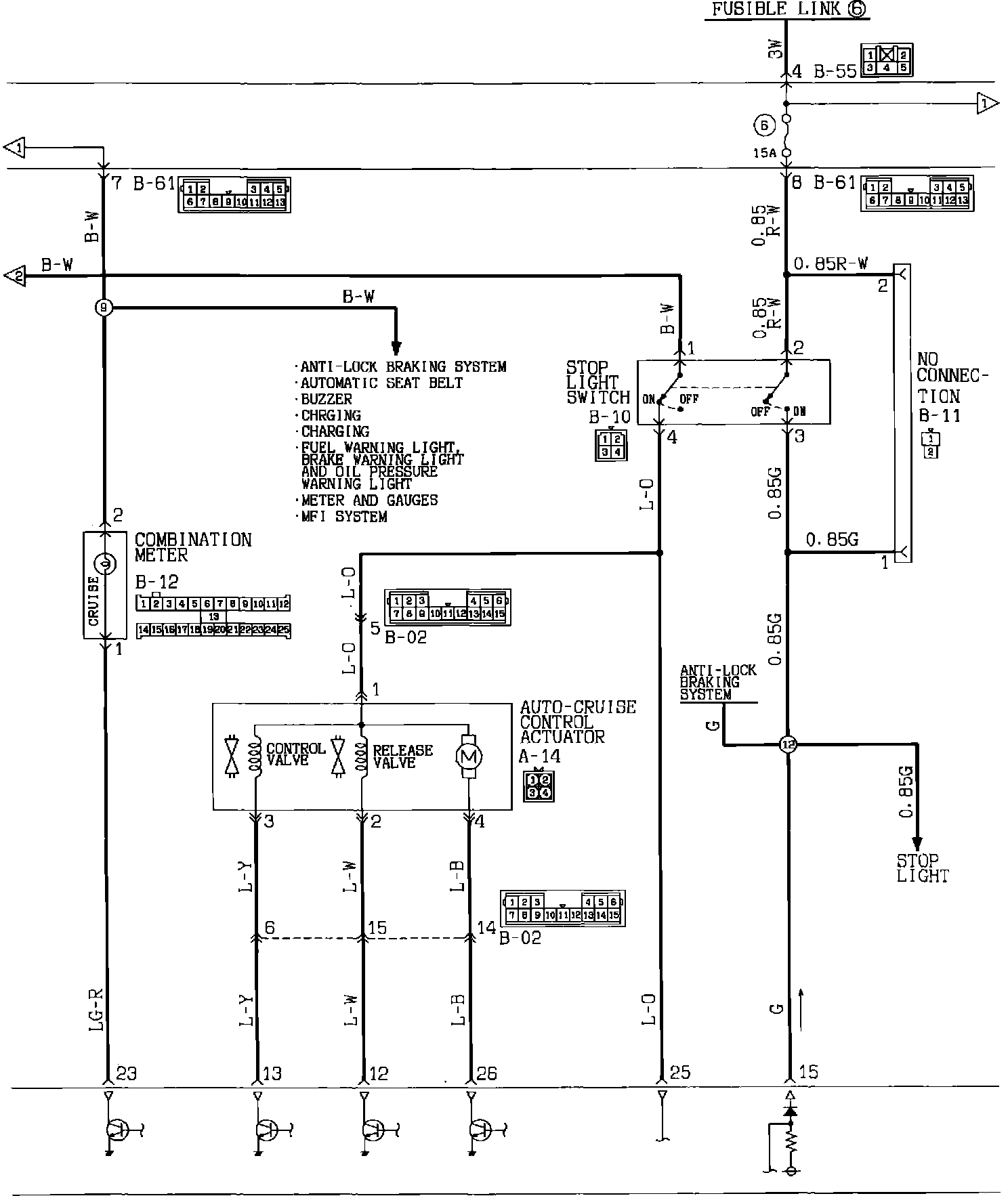

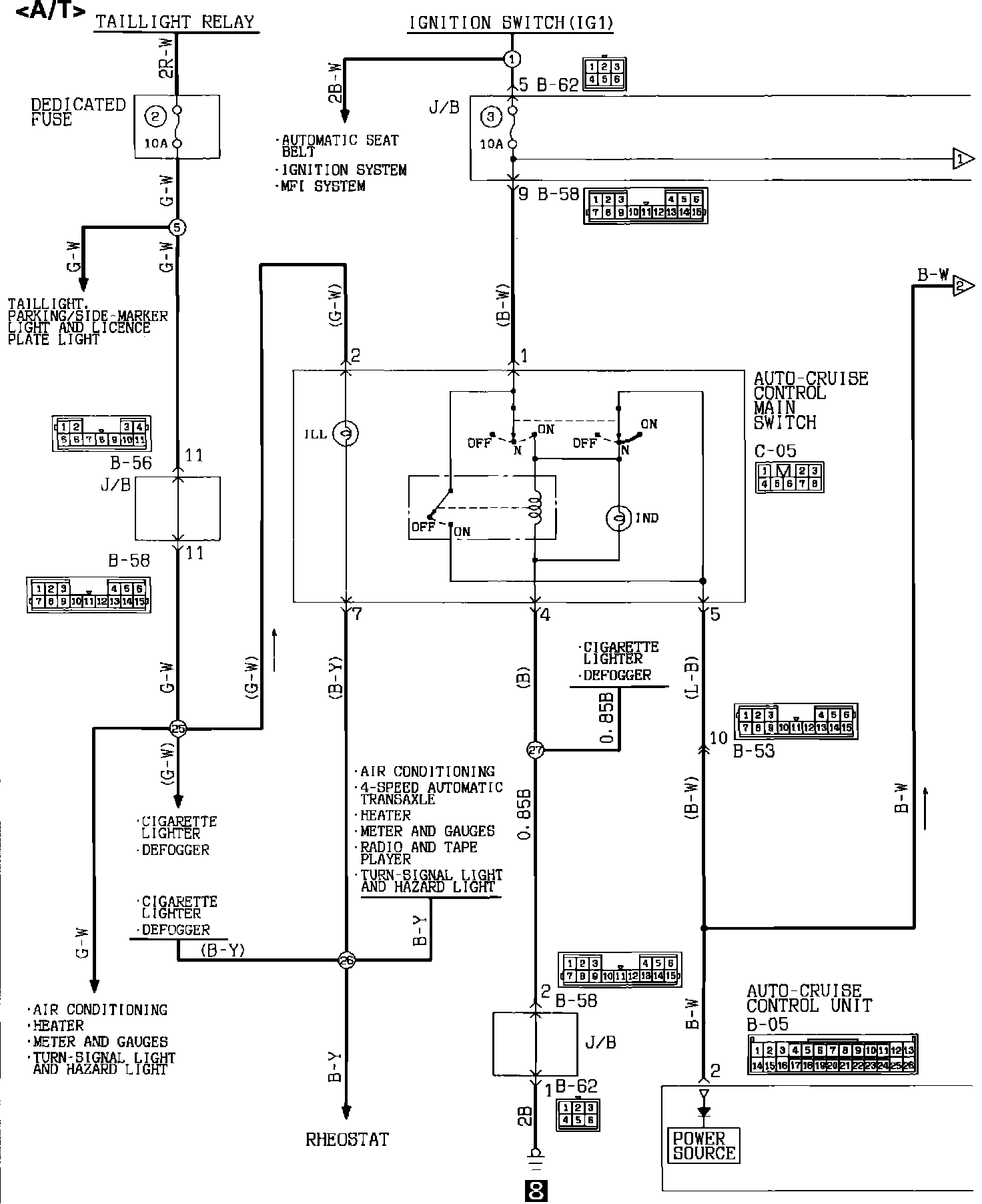

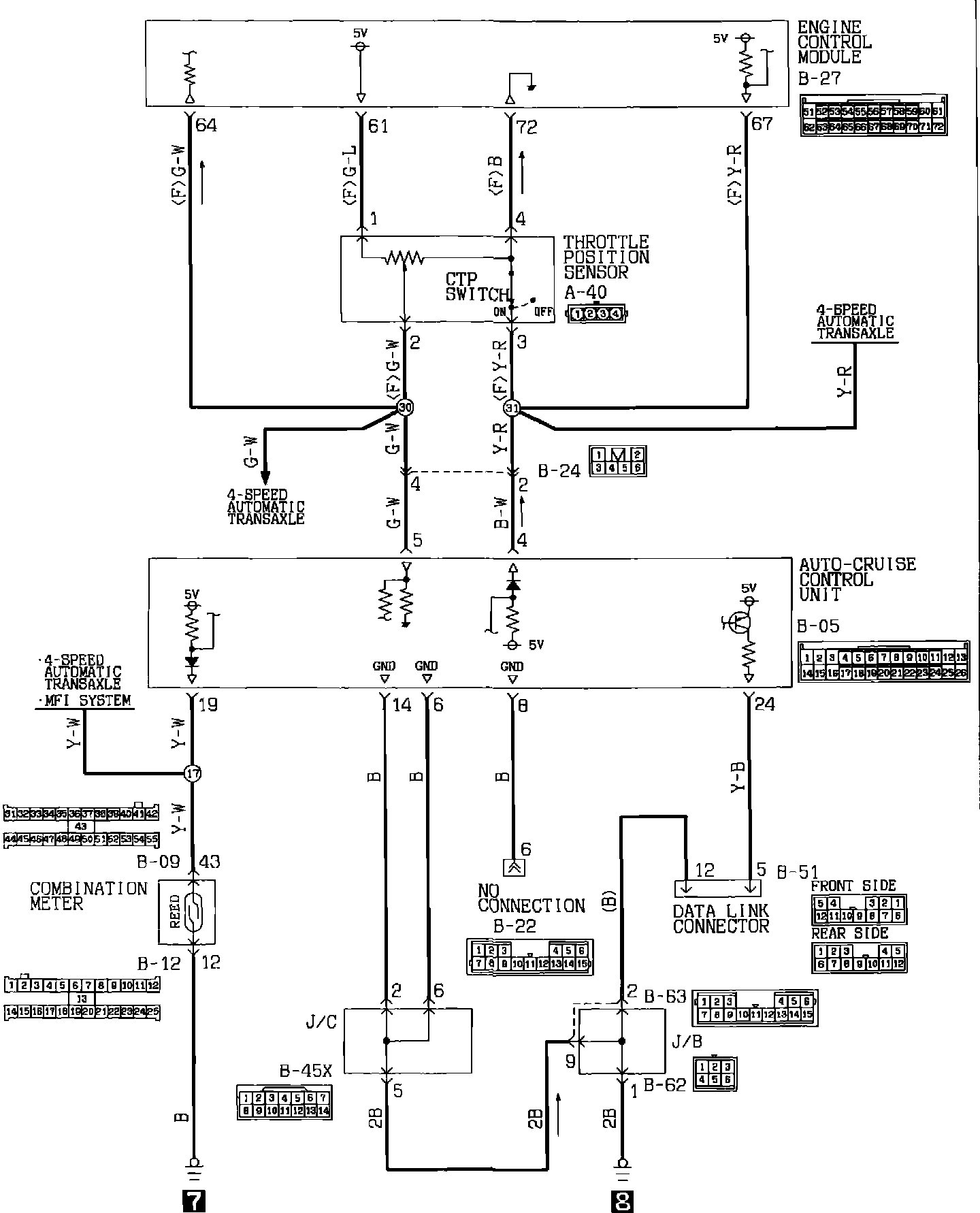

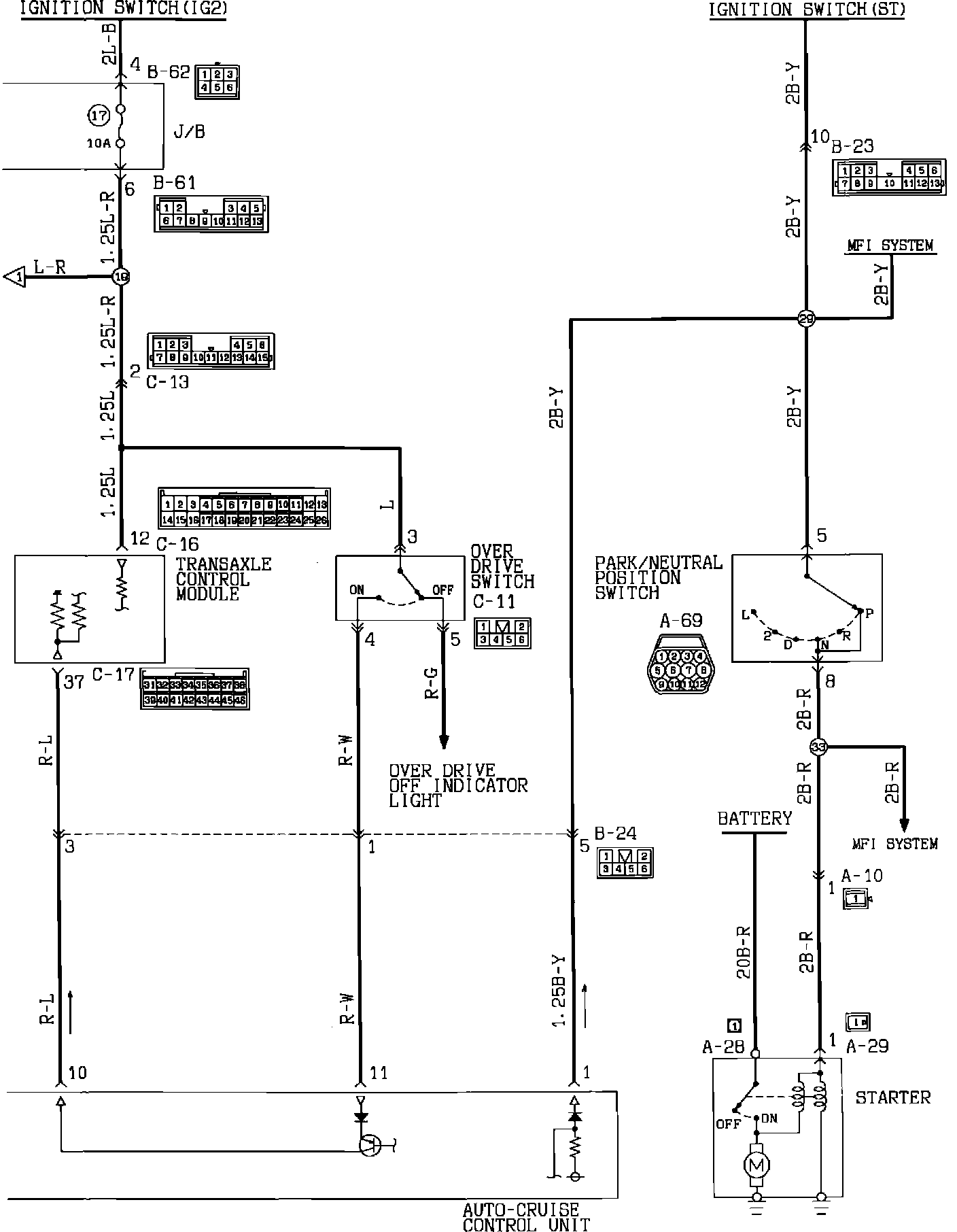

Auto-cruise Control Circuit:
Auto-cruise Control Circuit:
Auto-cruise Control Circuit:
Auto-cruise Control Circuit:
Auto-cruise Control Circuit:
