Hazard Warning Flasher
Hazard Warning Flasher

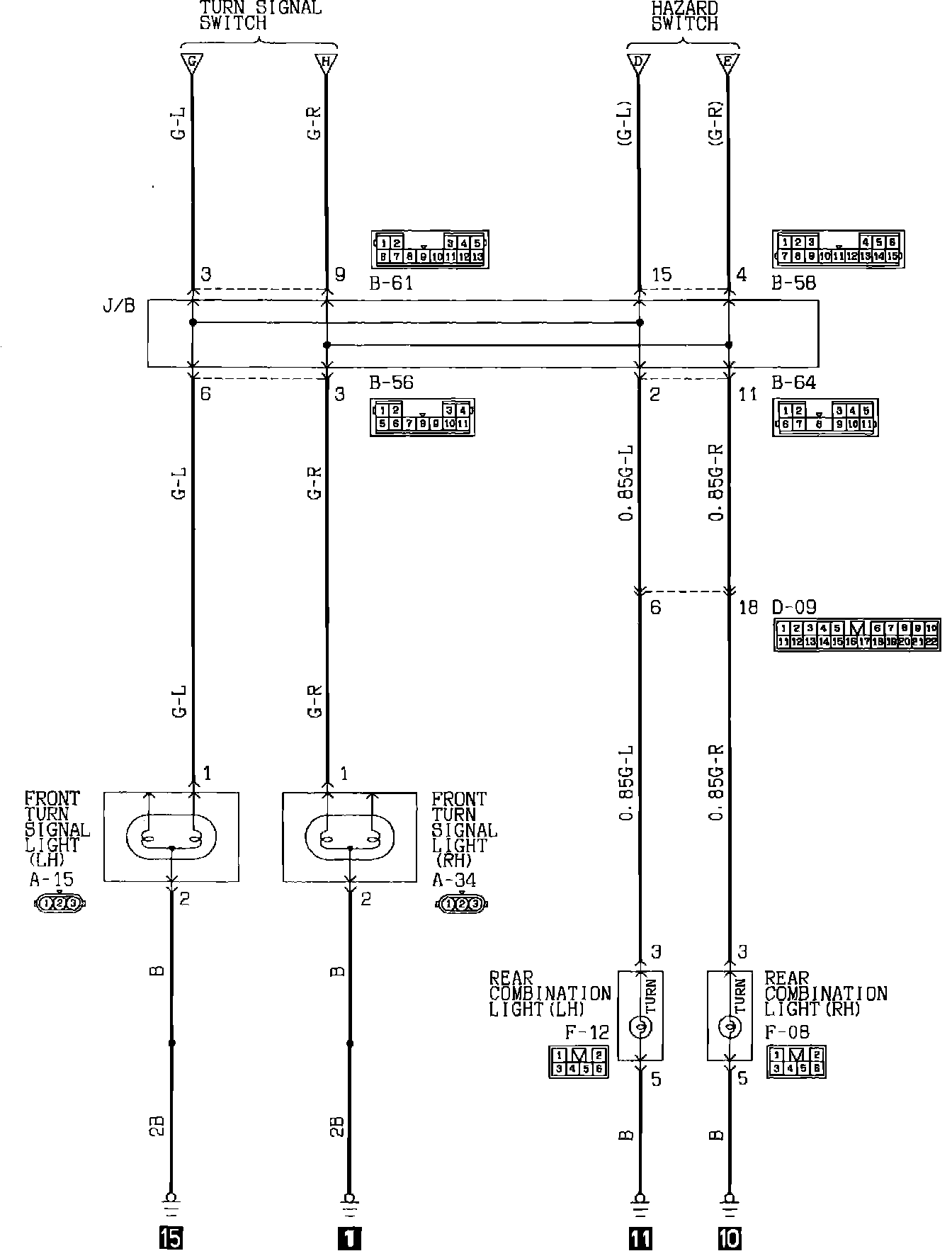

Turn Signal And Hazard Light Circuit:

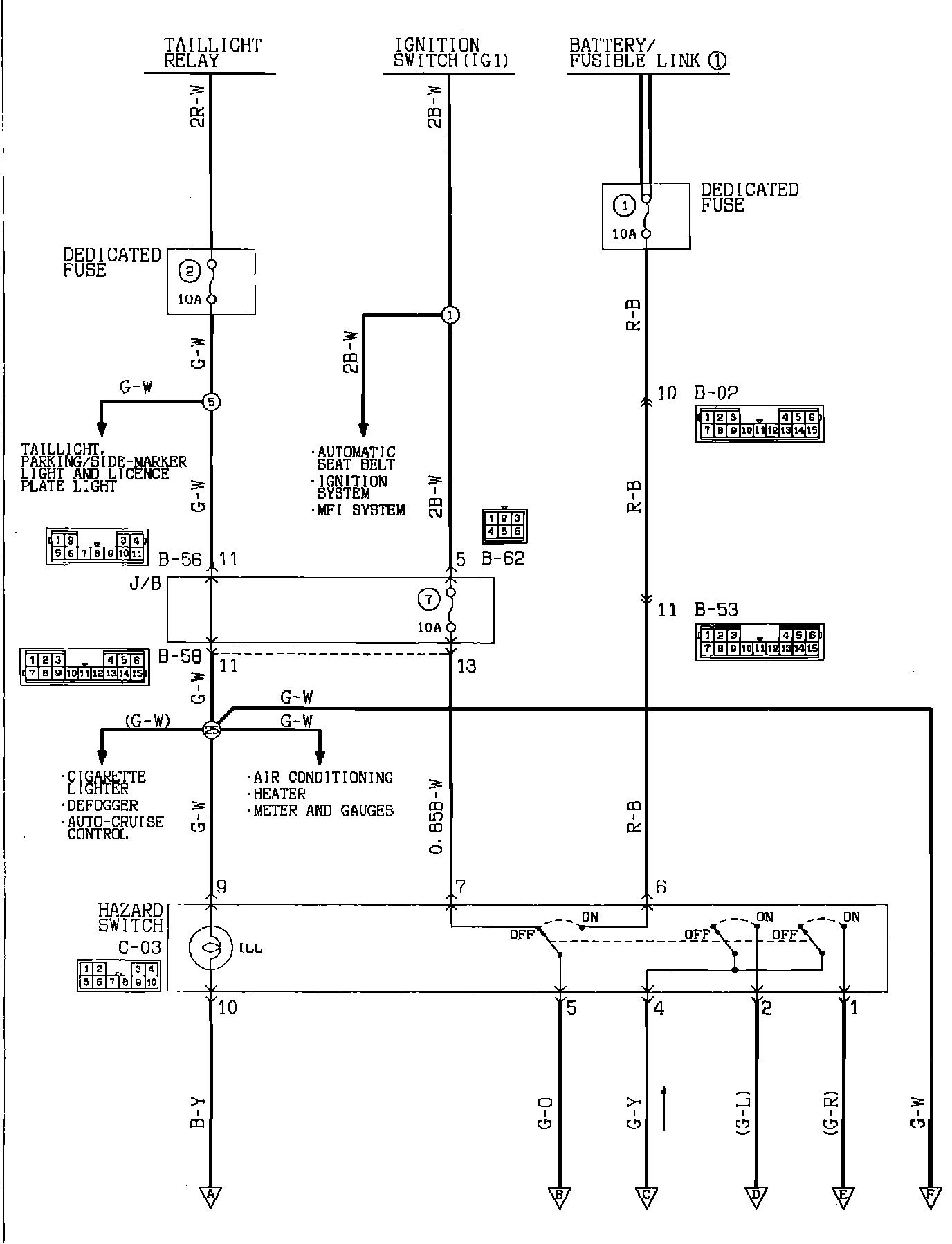

Turn Signal And Hazard Light Circuit:

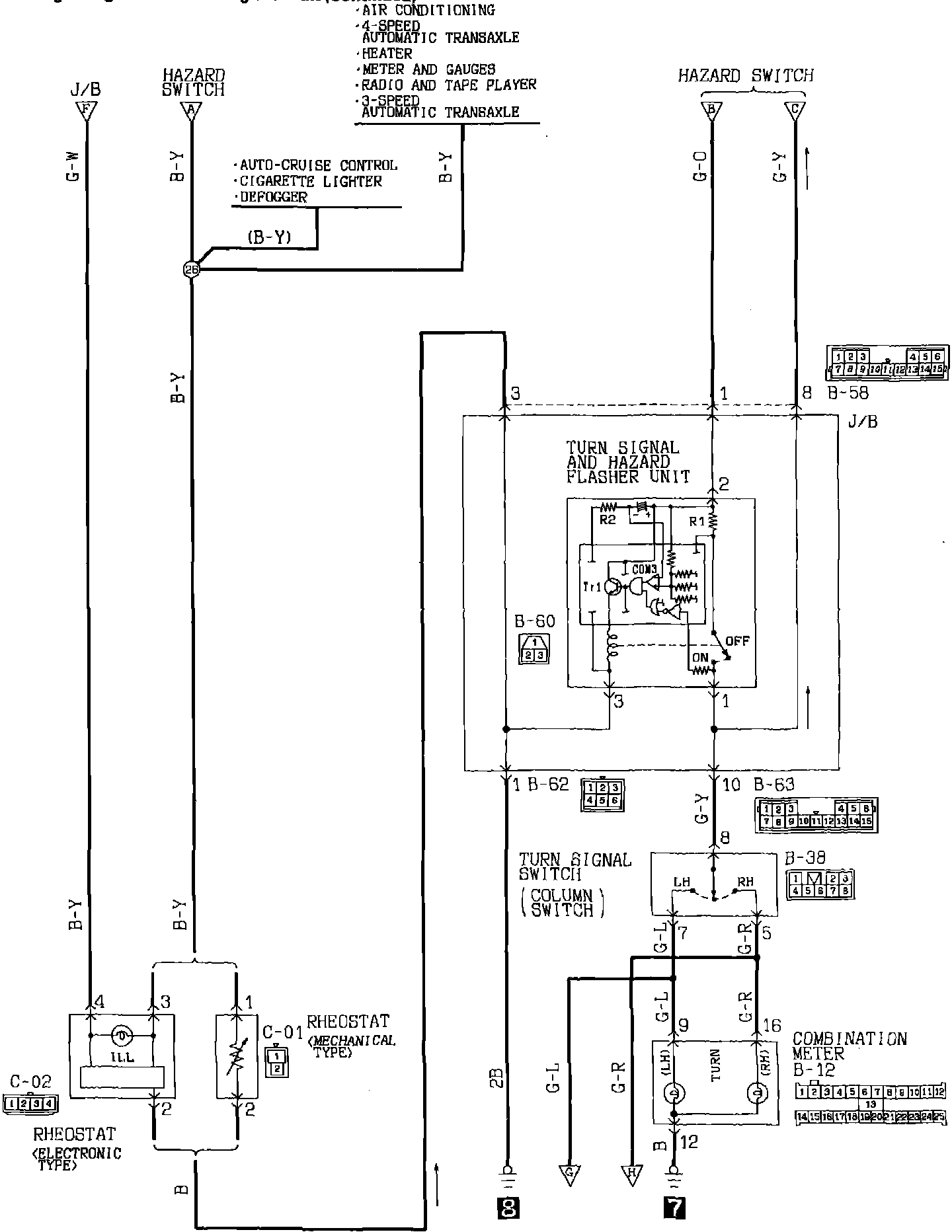

Turn Signal And Hazard Light Circuit:
