1993
>>
Summit L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>

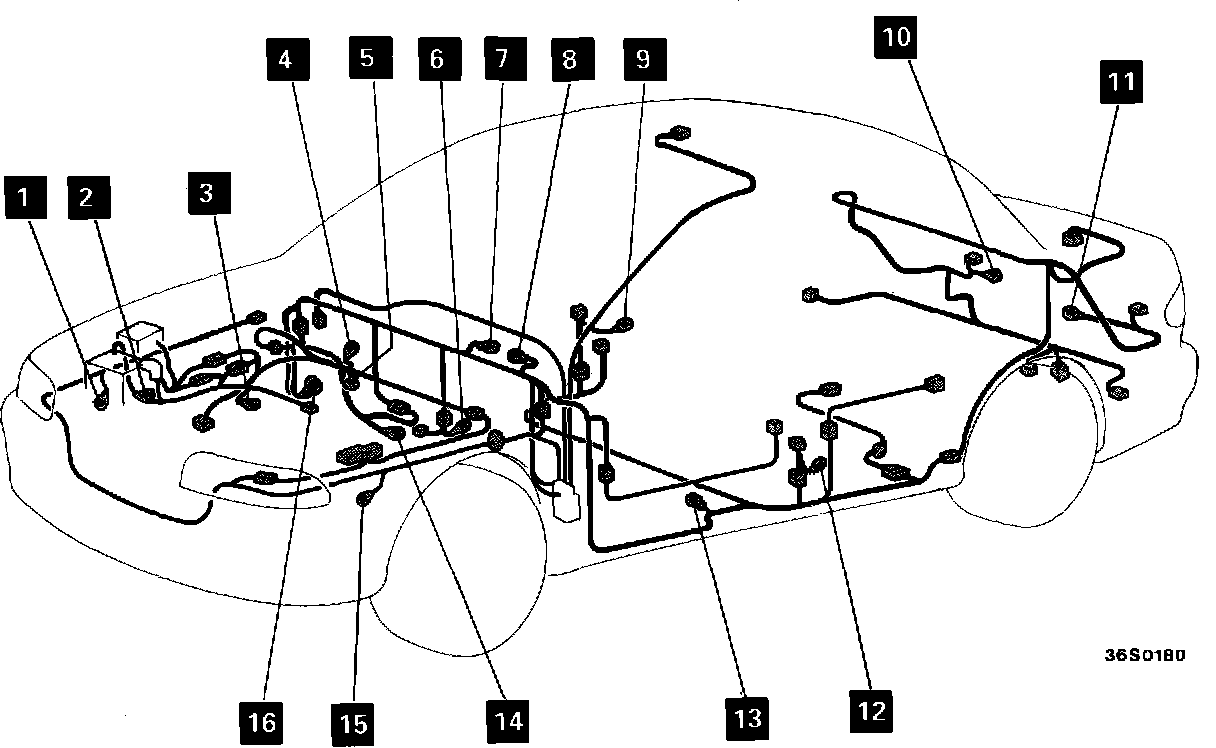

Ground Locations
Ground Locations

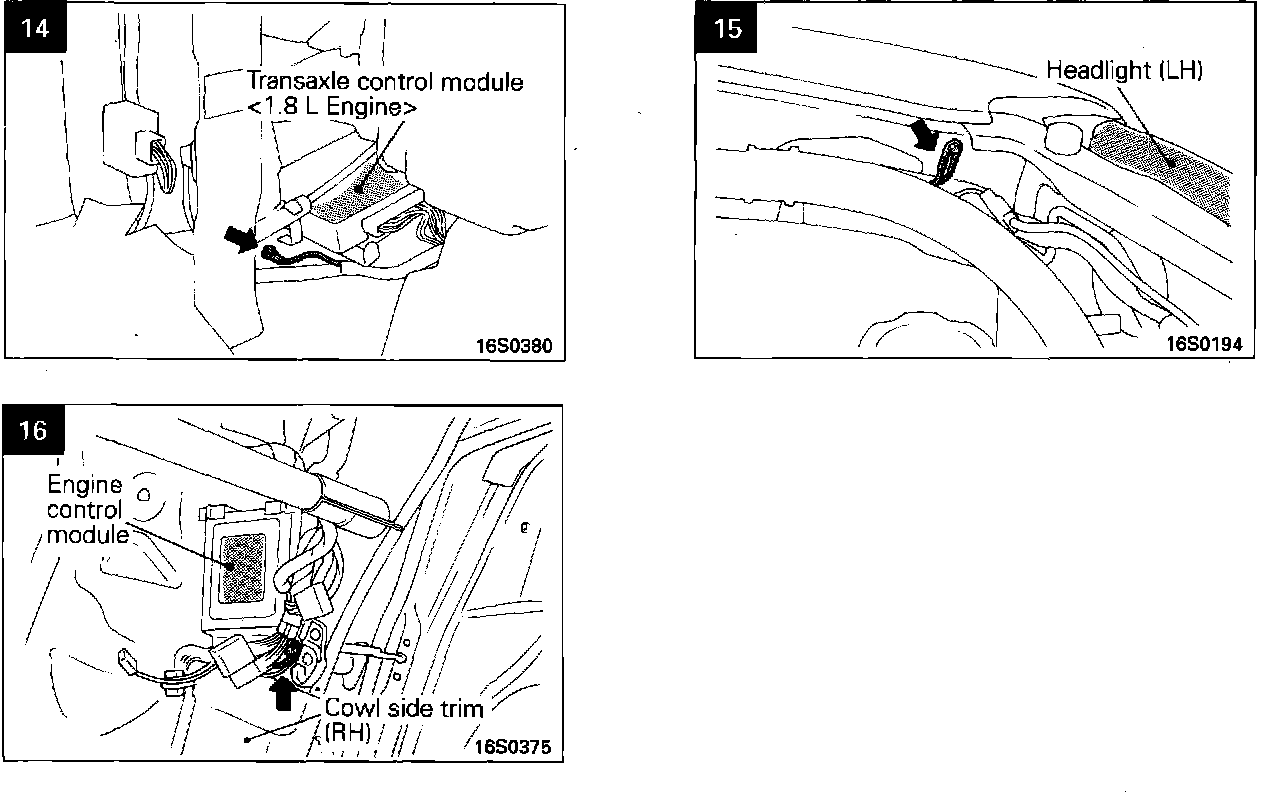

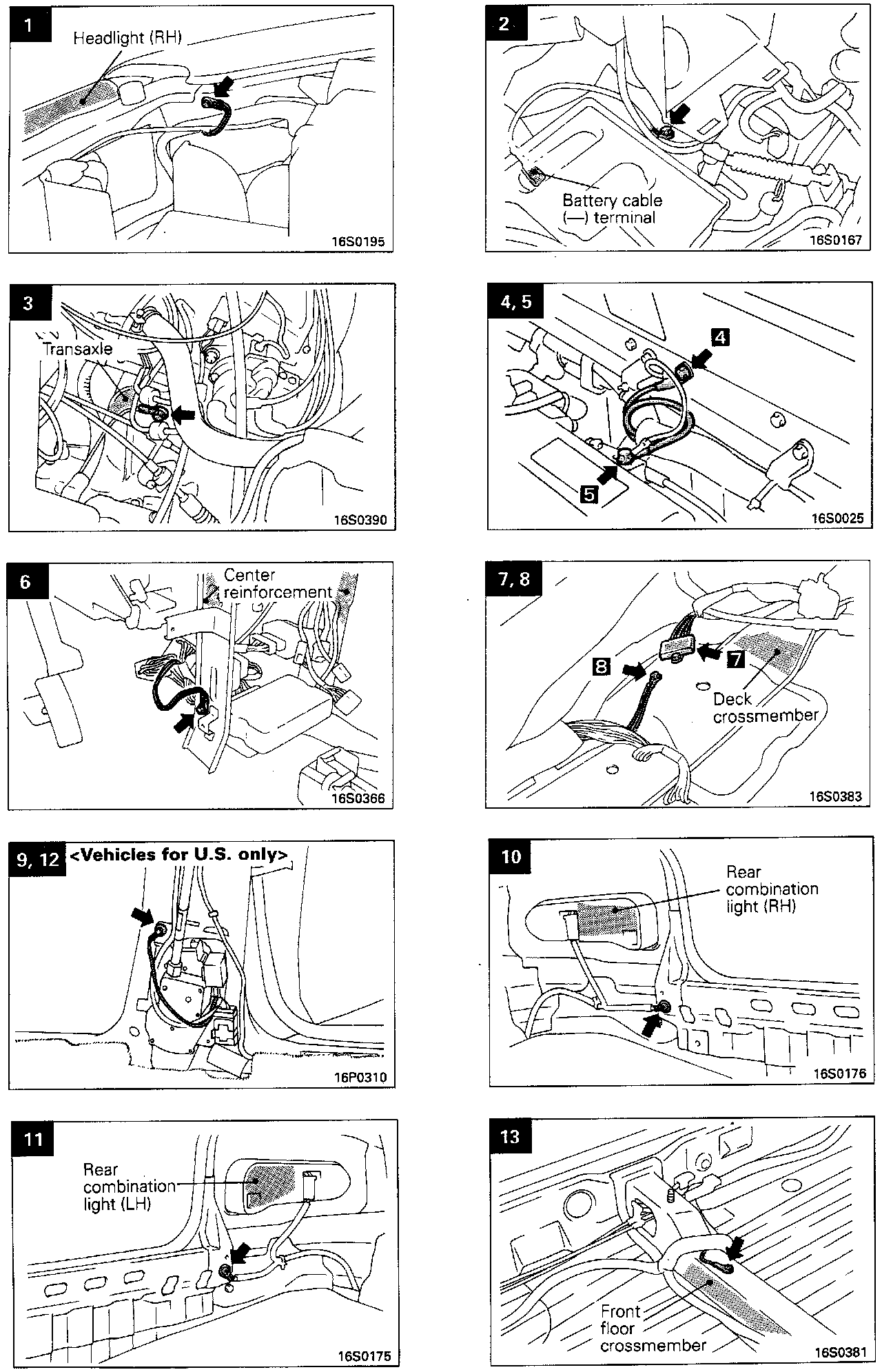

Grounding Locations:
Grounding Locations:
Grounding Locations:
