Diesel Data
: Automotive Repair
Home
>>
Eagle
>>
1993
>>
Summit L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

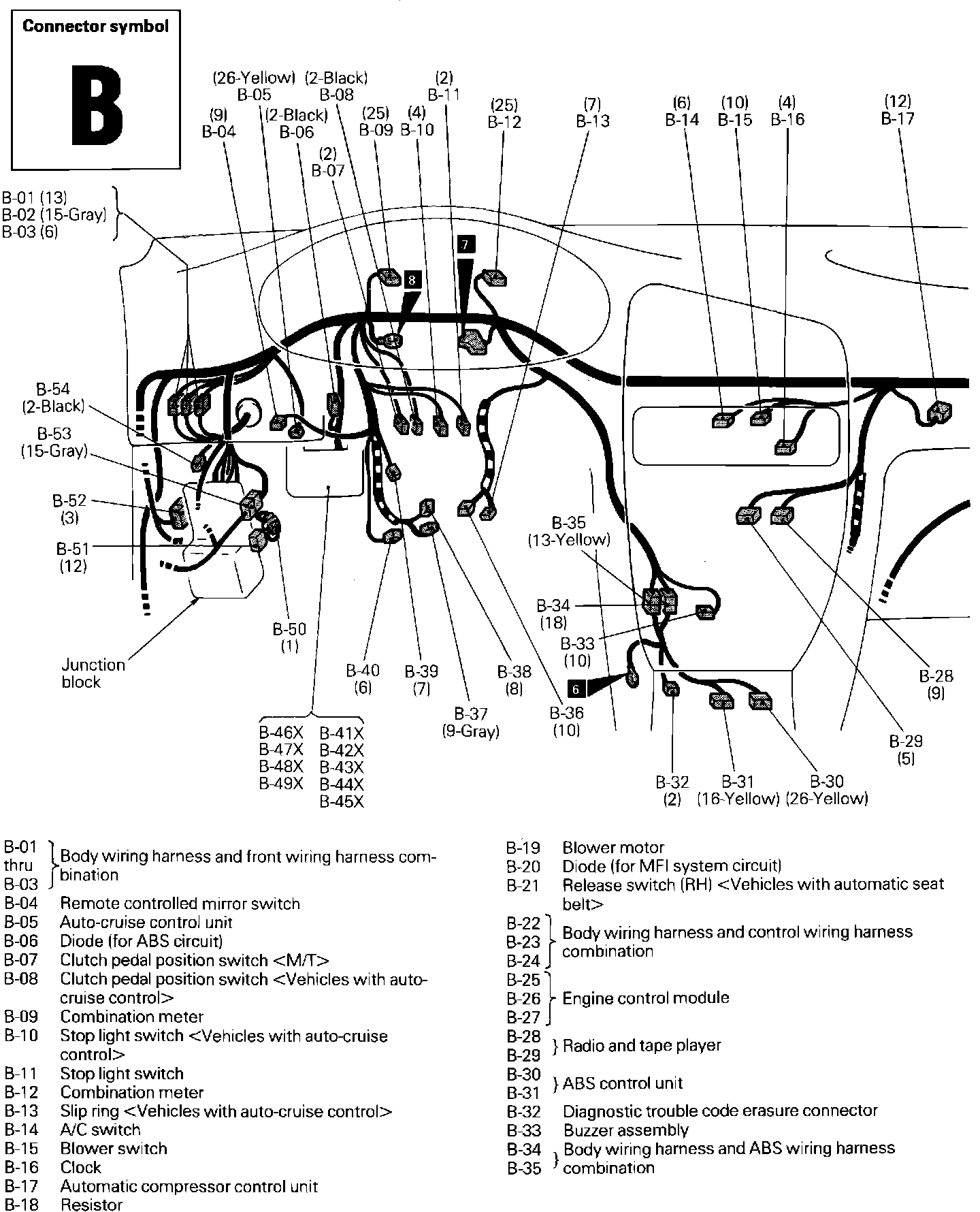

B Connectors Instrument Panel
B Connectors Instrument Panel

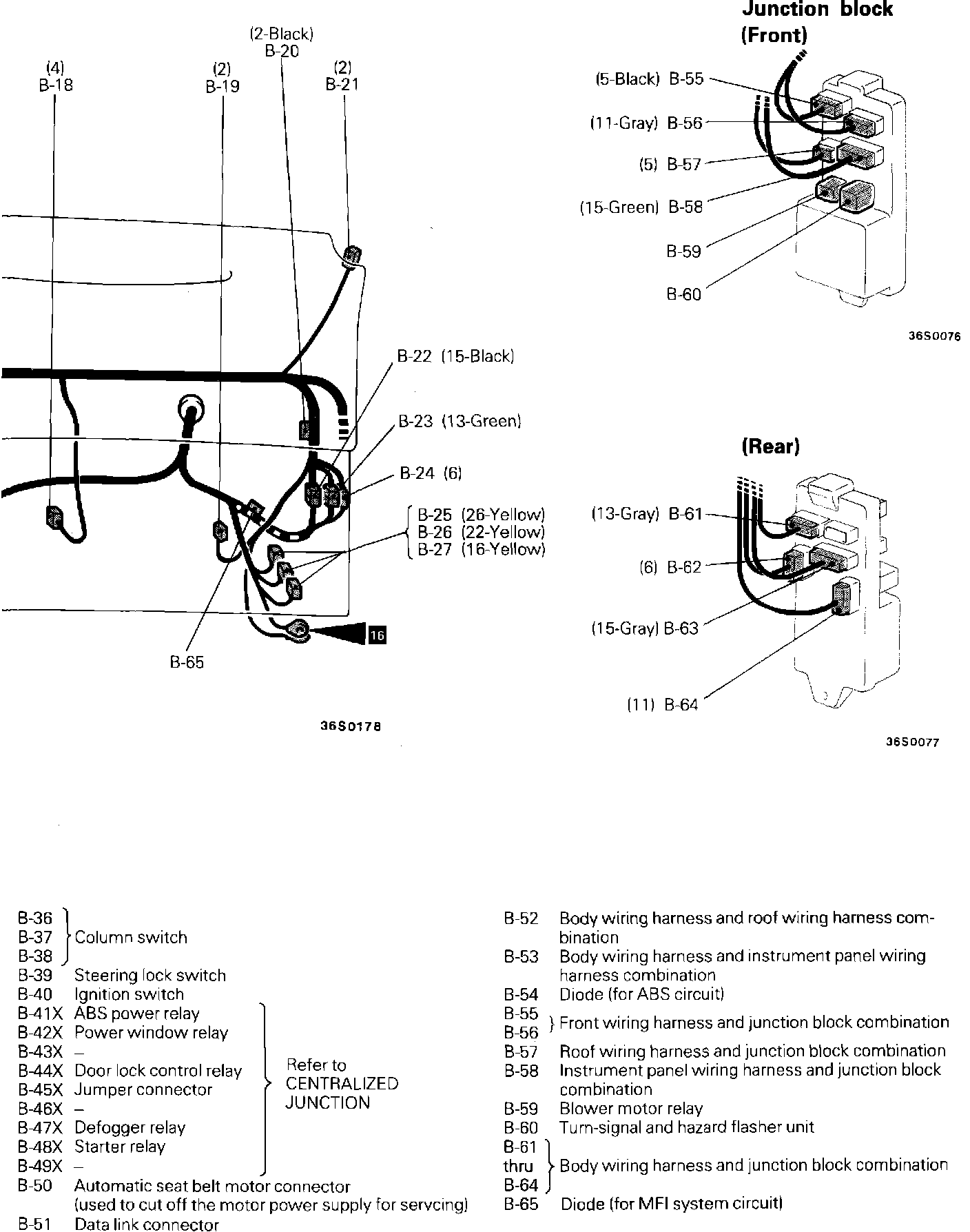

Dash Panel Connectors:
Dash Panel Connectors:
