Diesel Data
: Automotive Repair
Home
>>
Eagle
>>
1993
>>
Summit L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

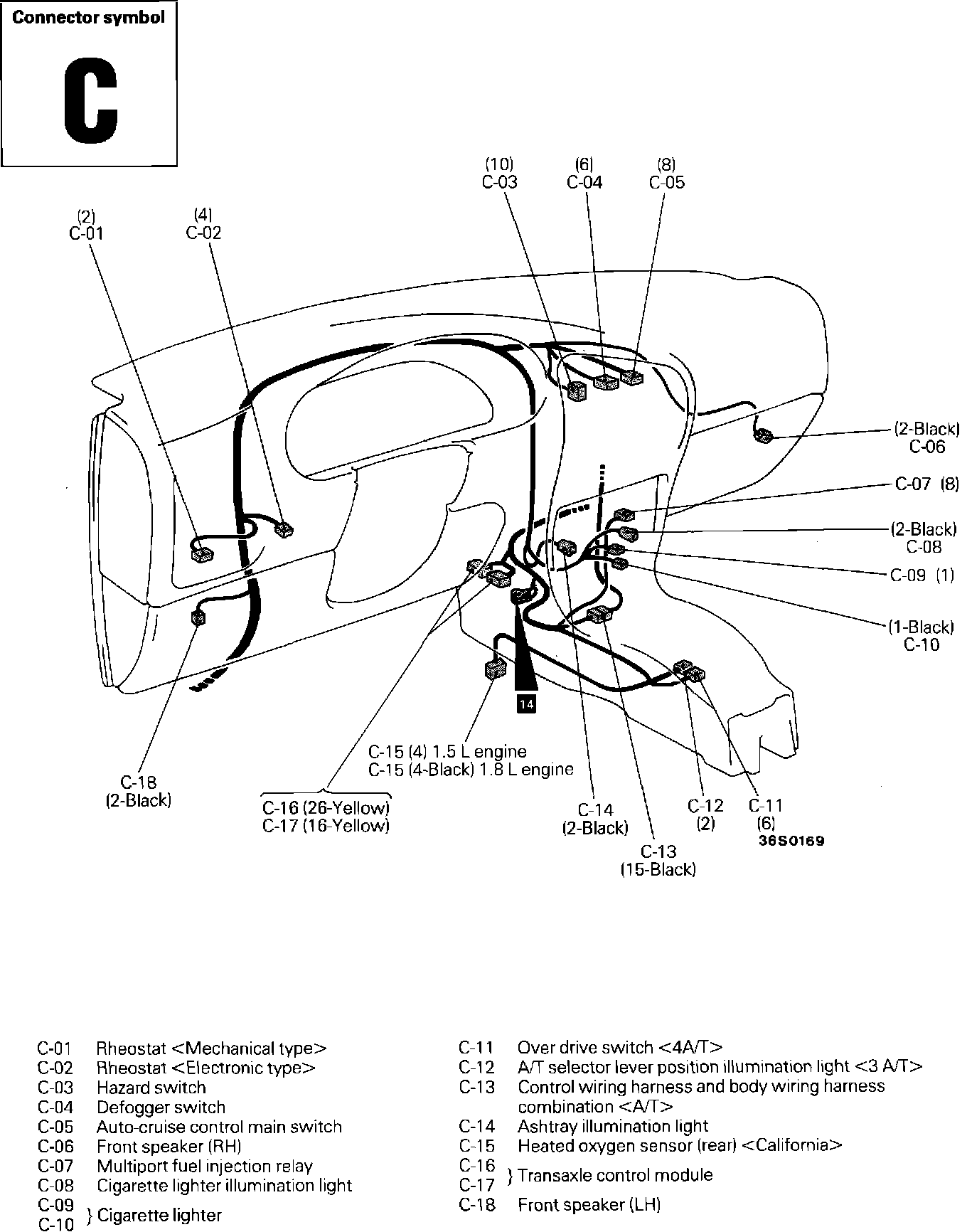

C-01 Thru D-18 (Instrument Panel and Floor)
C-01 Thru D-18 (Instrument Panel and Floor)
Instrument Panel Connectors:
