Fuel Rail: Locations

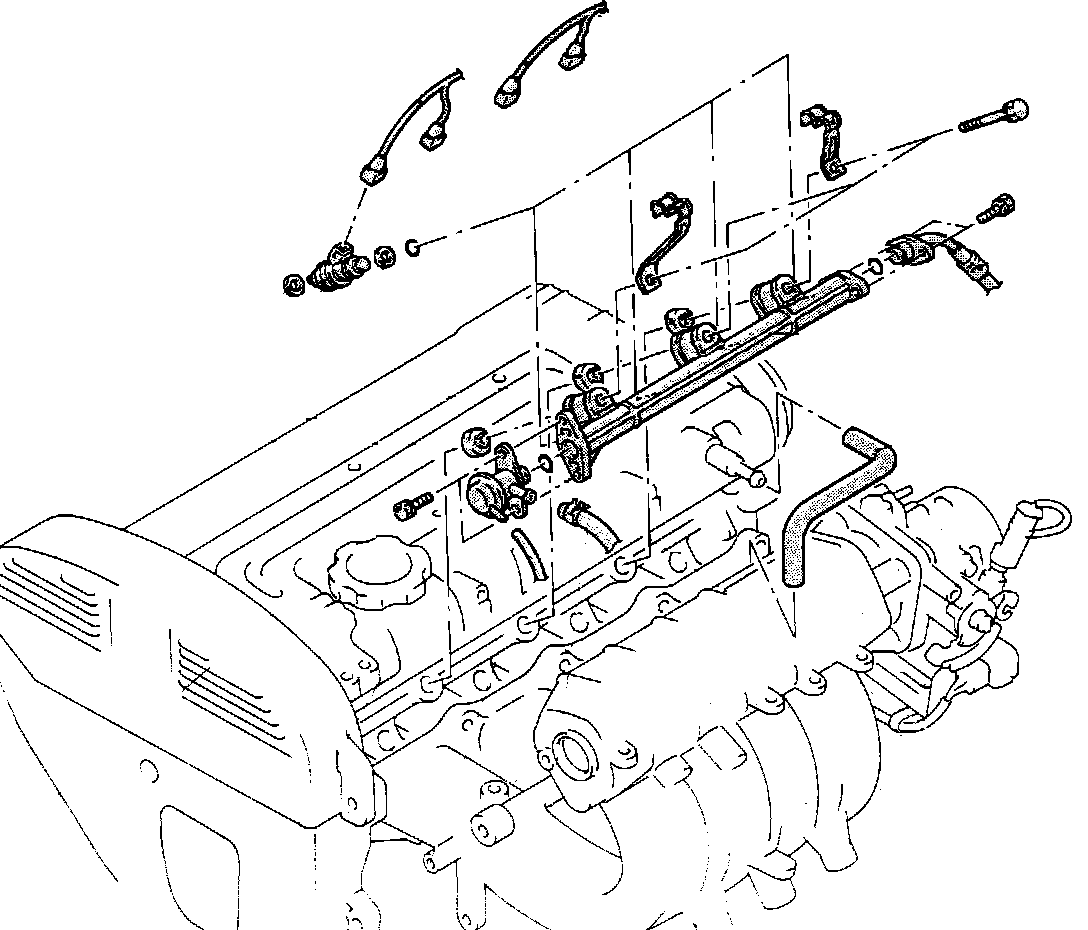

Fuel Rail, Injectors, Fuel Regulator And Components:





The fuel rail is mounted to the intake manifold.
