Valve Body: Testing and Inspection

Pressure Control Solenoid Valve Inspection:

1. Disconnect the Pressure Control Solenoid connector.

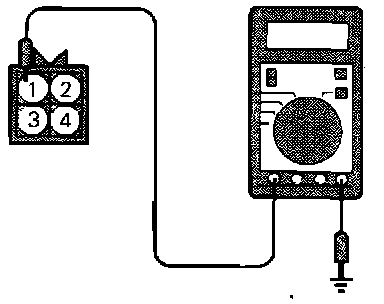

2. Measure the resistance between the solenoid connector terminal 1 and ground.

Resistance: Approx. 3 ohms at 68° F

3. If the measured resistance does not match the standard value, replace the solenoid valve assembly.
