Home
>>
Eagle
>>
1993
>>
Summit L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

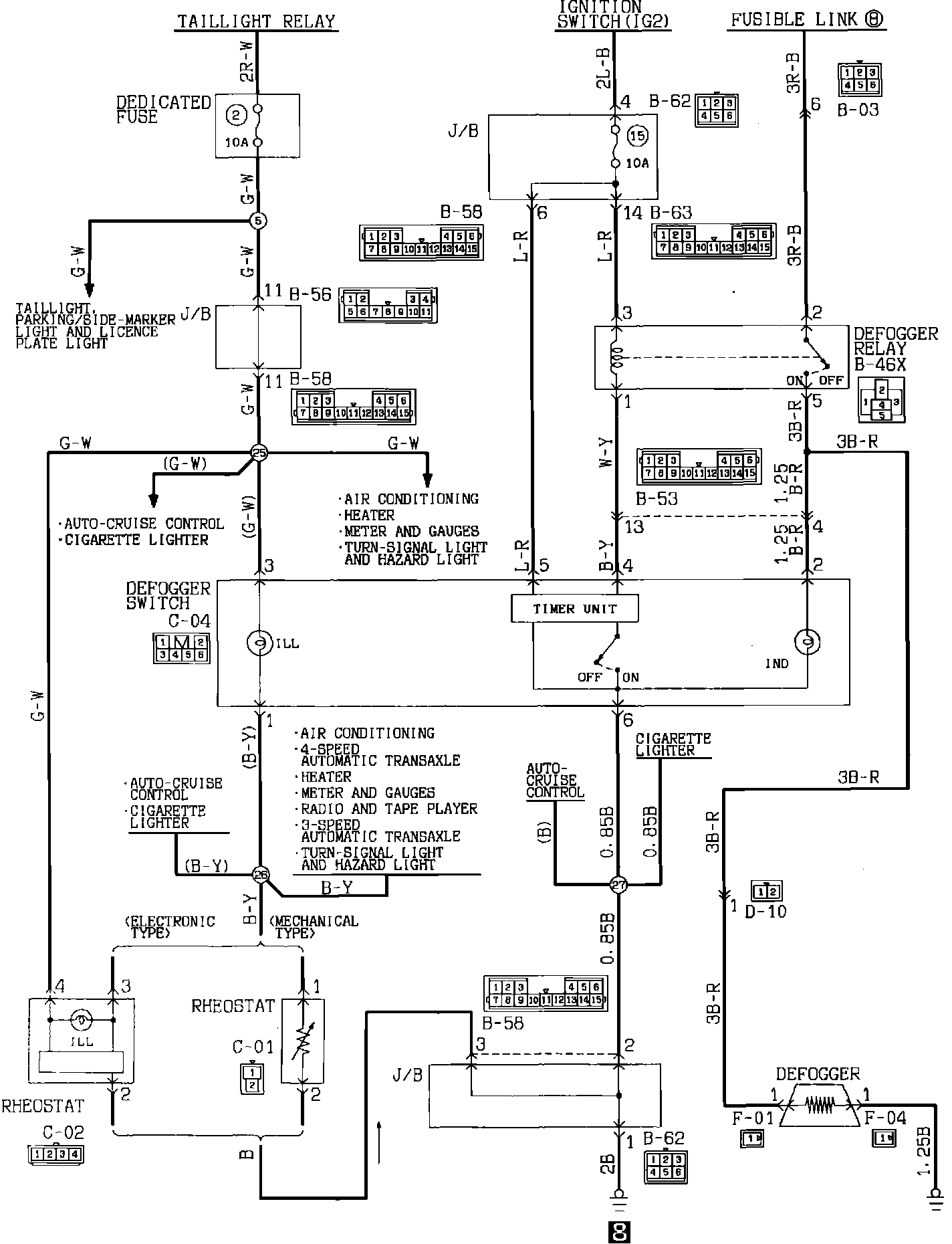

Rear Window Defroster Circuit:

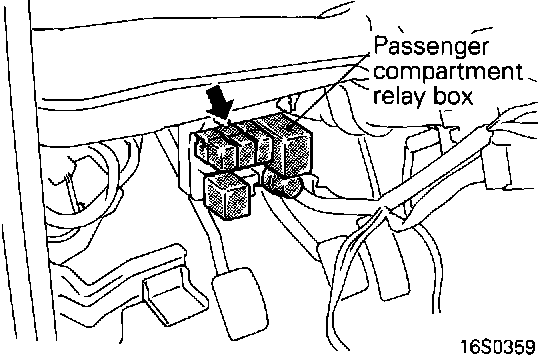

Power Window Relay:
