Chart E5 - Abnormality of Solenoid Valve Drive Circuit
Chart E5 - Abnormality of Solenoid Valve Drive Circuit

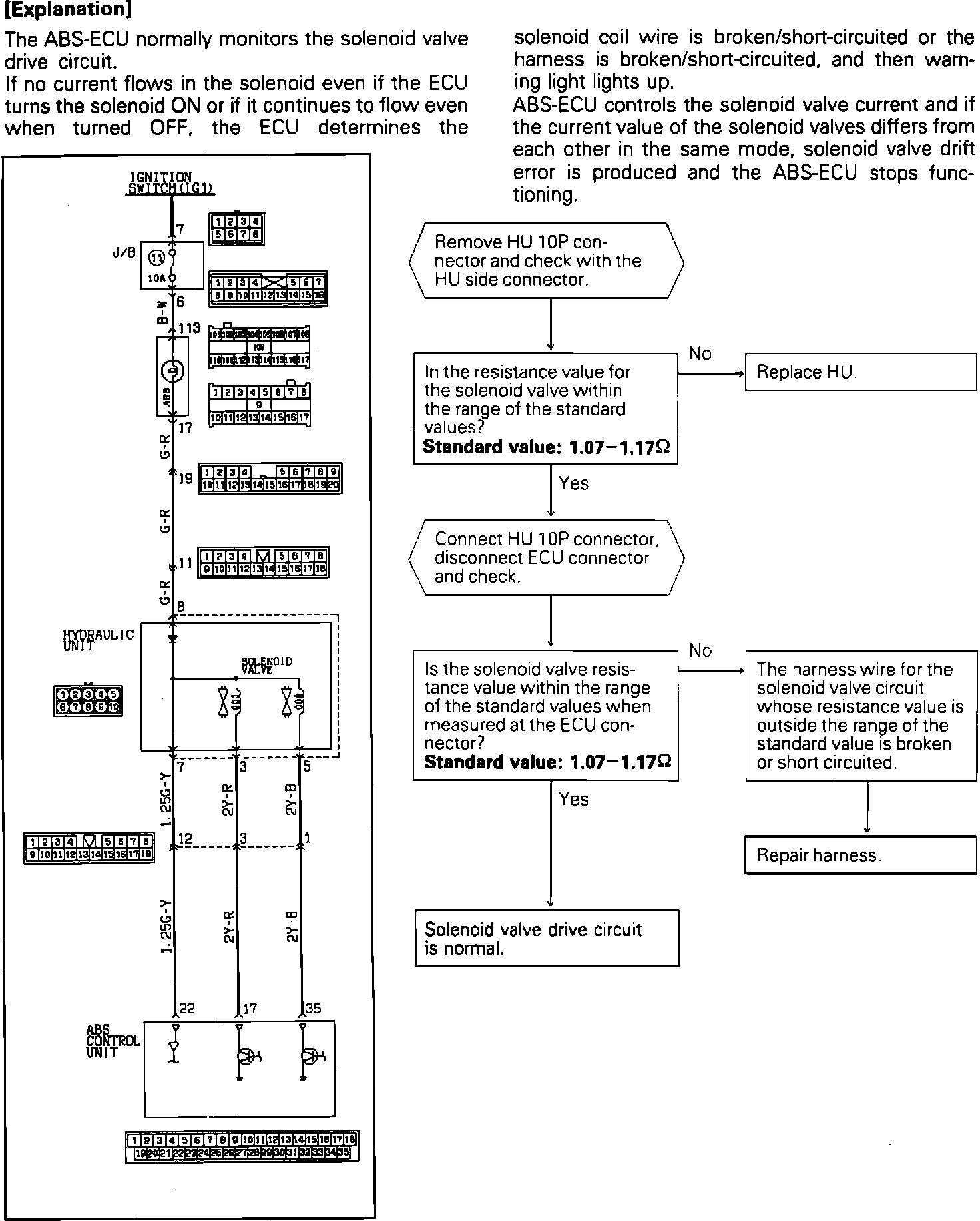

Fig. 45 ABS Chart E-5, Solenoid Valve Drive Circuit Abnormality:
