Home >> Eagle >> 1993 >> Summit Vista AWD L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trunk / Liftgate >> Type A

Type A

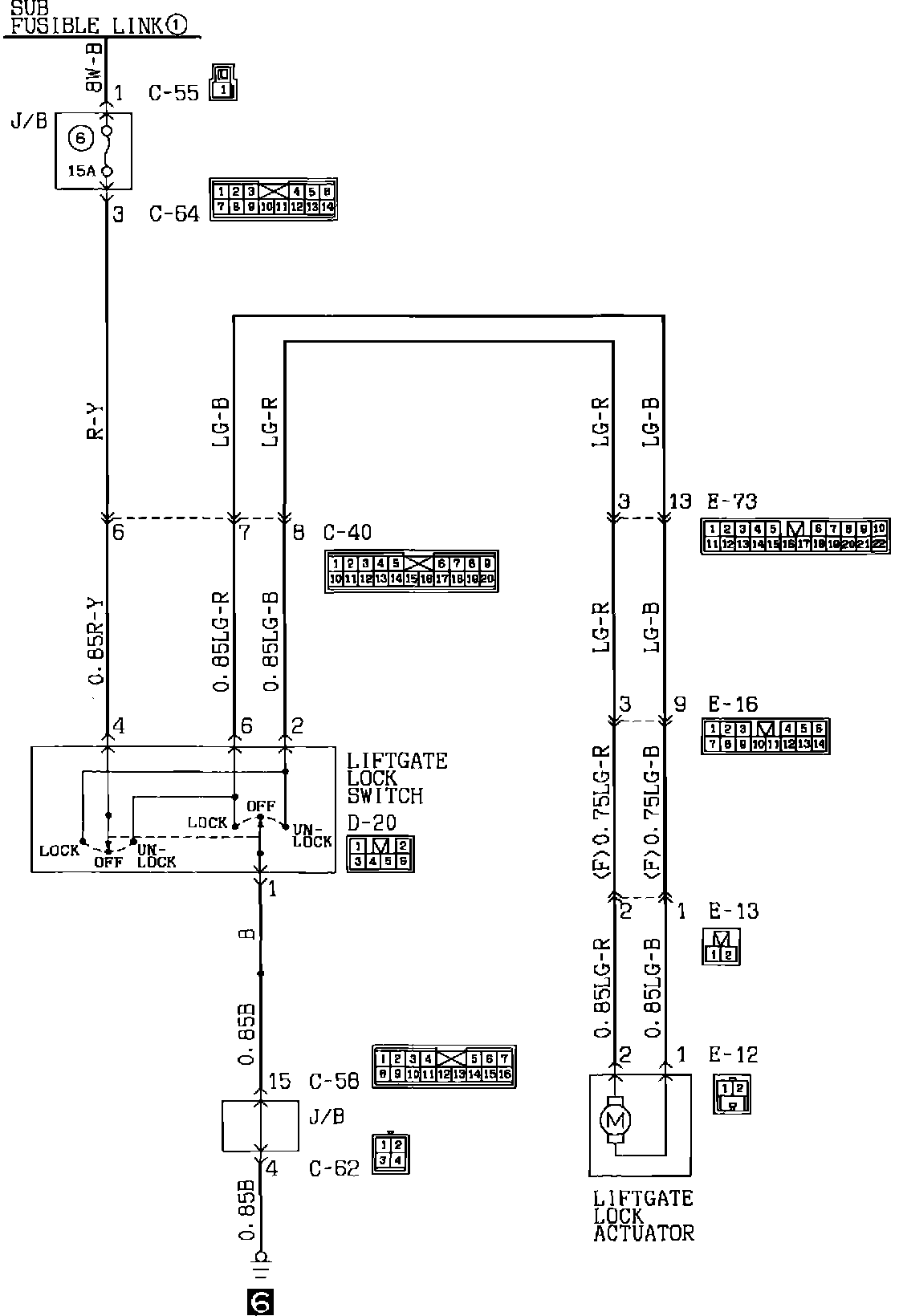

Liftgate Lock System:
