Thermostat: Service and Repair

1. Drain engine coolant into a suitable container.
2. Disconnect upper radiator hose.

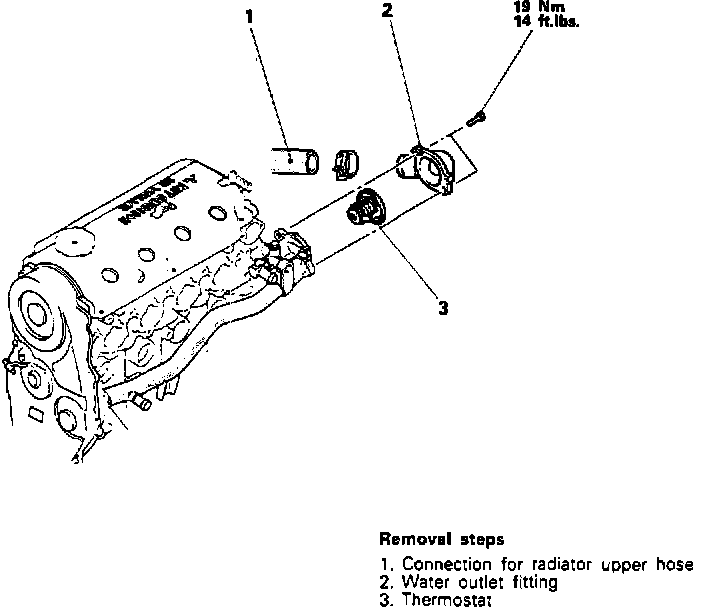

Fig. 65 Thermostat replacement:

3. Remove water outlet fitting and the thermostat.

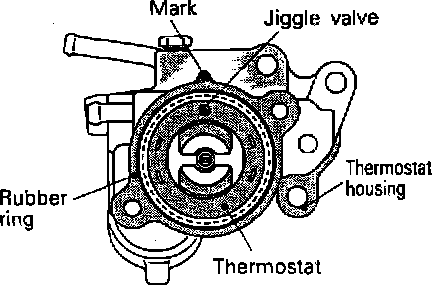

Fig. 66 Thermostat installation:

4. Reverse procedure to install, ensuring jiggle valve on thermostat is aligned with mark on thermostat housing.
