Exhaust Manifold: Service and Repair

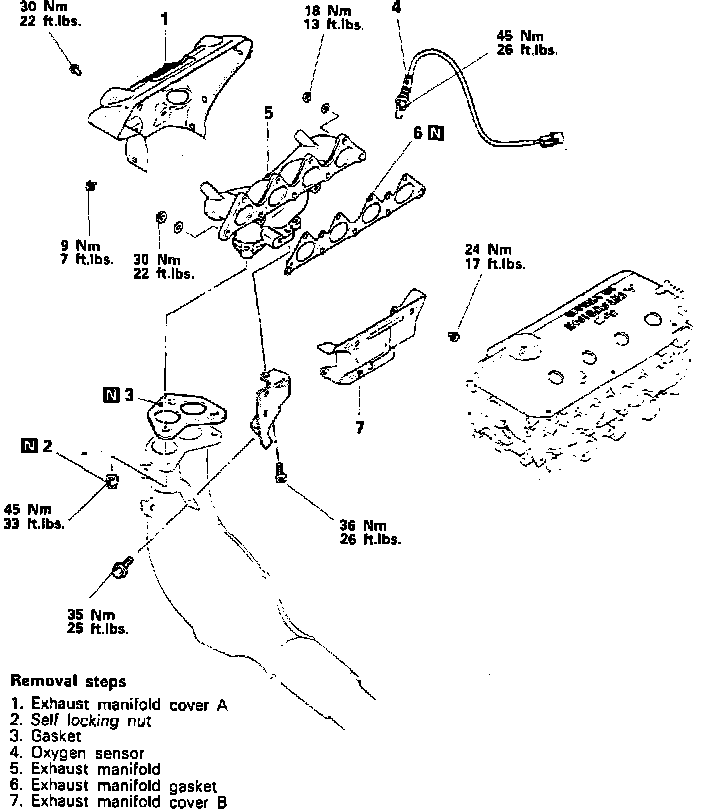

Fig. 13 Exhaust manifold. 1.8L/4-111.9 engine:

1. Remove the power steering pump as outlined in the Front Suspension & Steering section.
2. Remove the exhaust manifold in numbered sequence shown.
3. Reverse procedure to install.
