Home
>>
Eagle
>>
1993
>>
Summit Vista AWD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

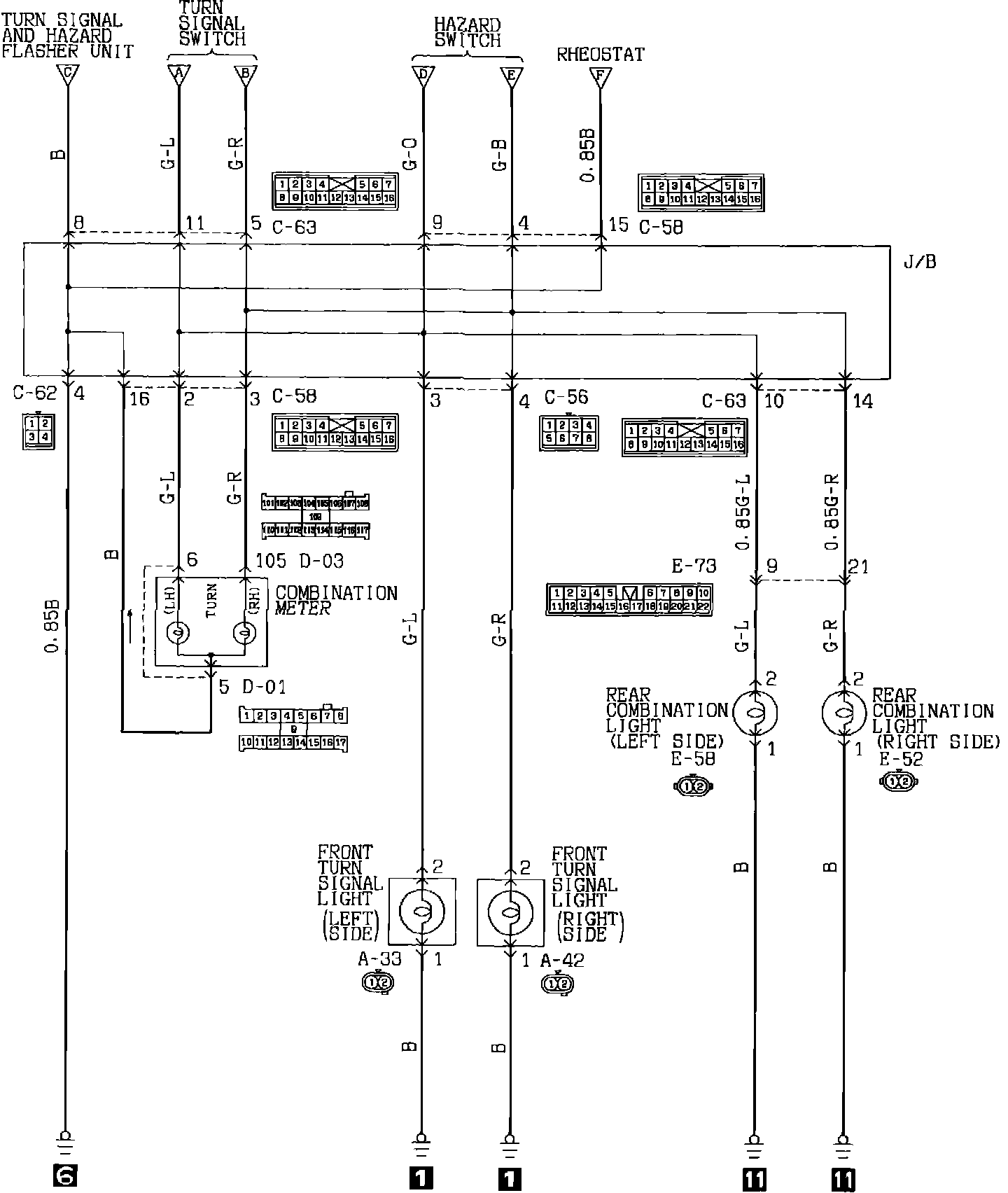

Turn And Hazard Lamps:

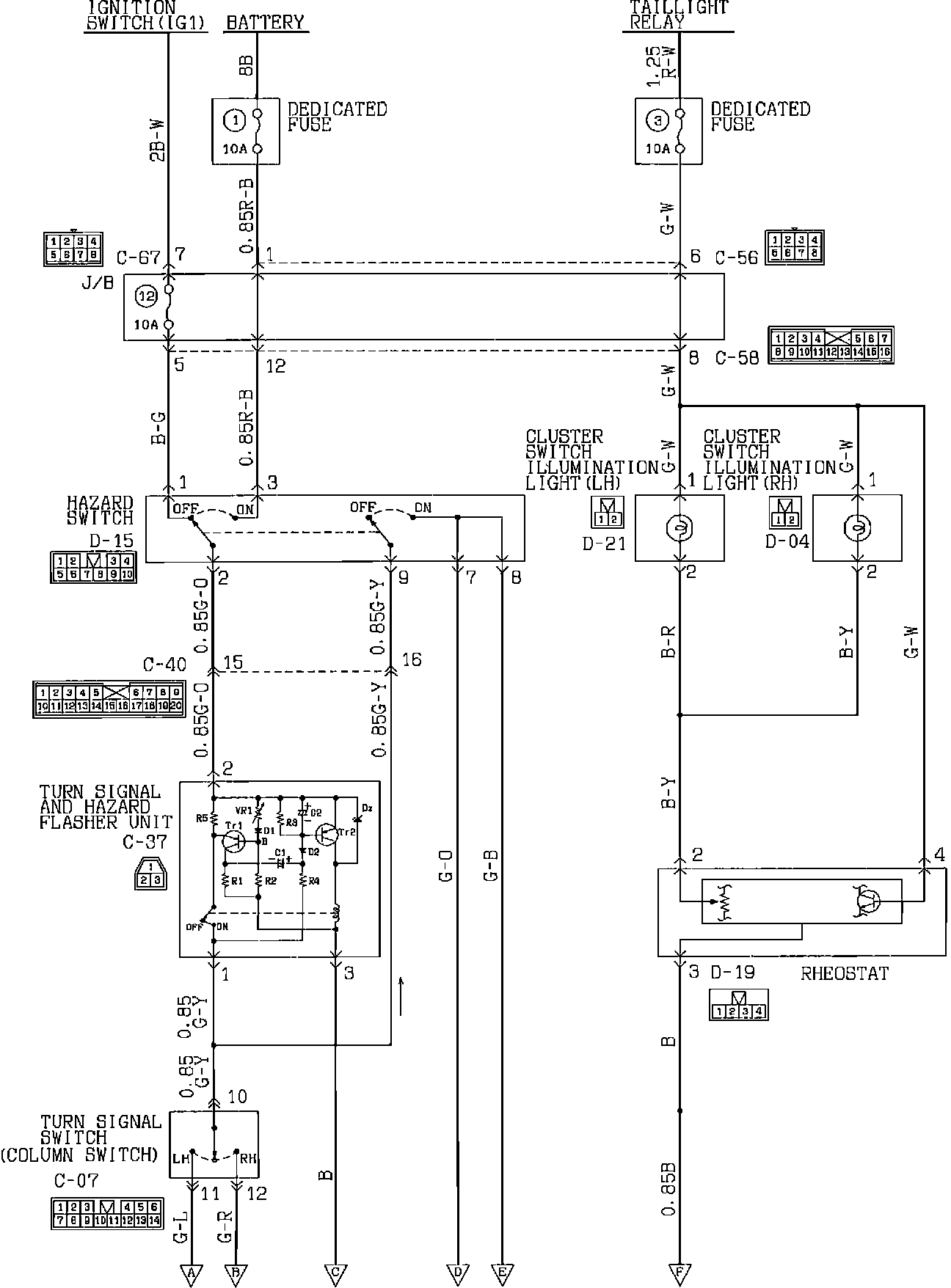

Lighting System Diagram:
