Home >> Eagle >> 1993 >> Summit Vista AWD L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Diagrams >> Part 4

Part 4

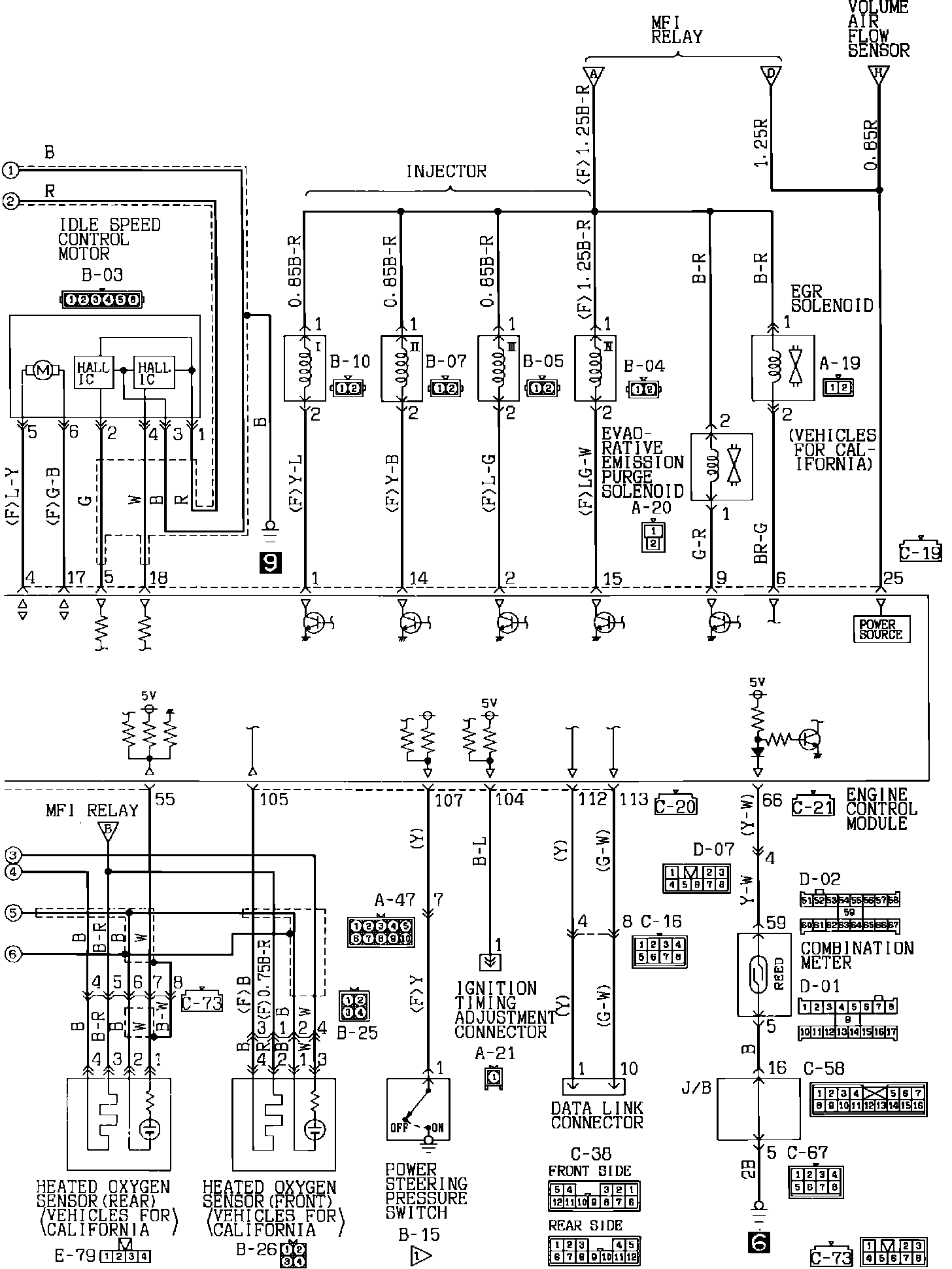

MFI System:
