Fuel Cut Off Valve

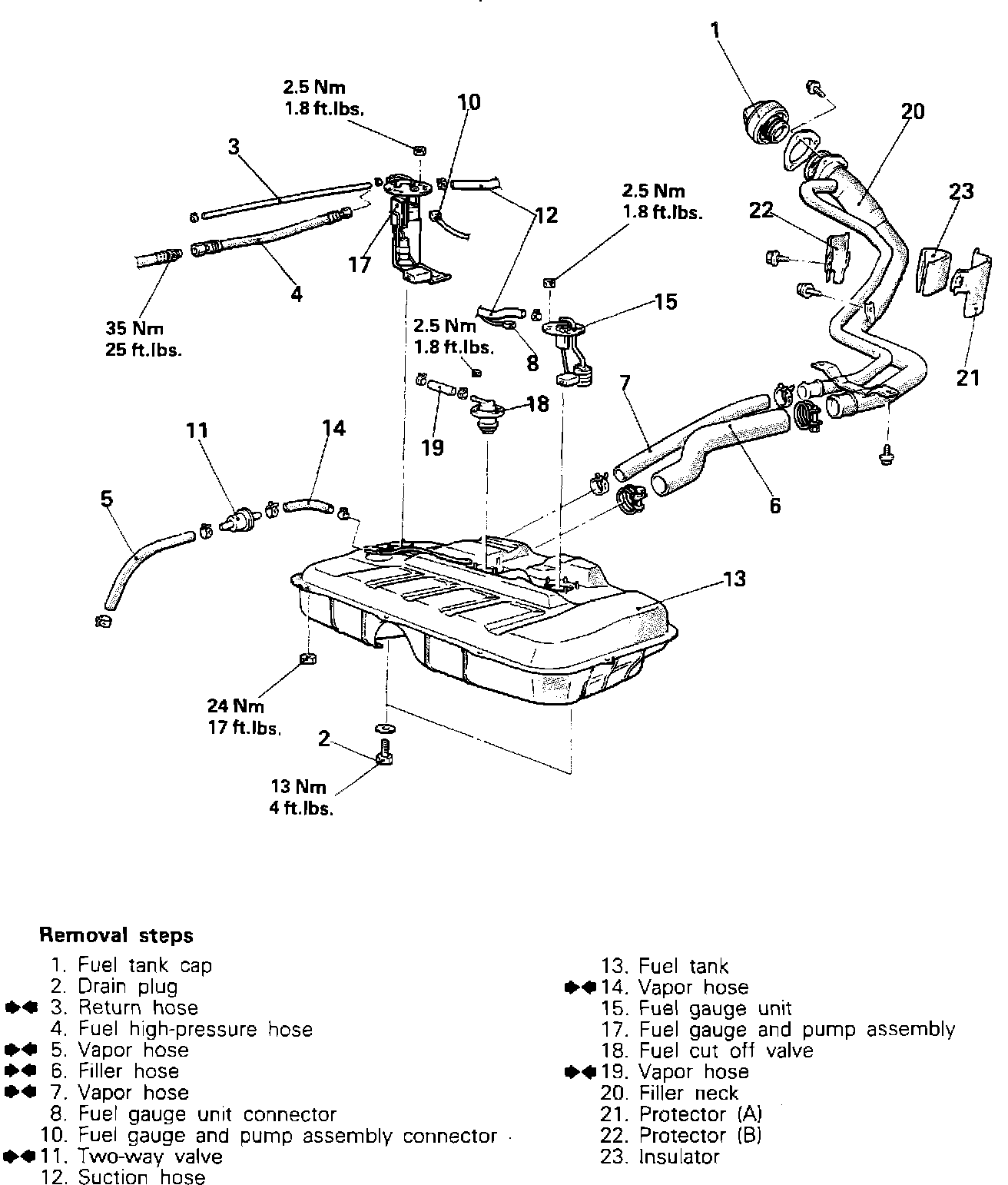

Fuel Tank:






Remove the Fuel Cut Off Valve from the top of the fuel tank.

Fuel Cut Off Valve:






Gently shake the valve up and down and listen for the sound of the float moving inside. If the float cannot be heard replace the valve.
