Steering - Service Manual Revision
NO.: 19-06-93GROUP: Steering
DATE: Dec. 31, 1993
SUBJECT:
Service Manual Revision - Steering
MODELS:
1992 - 1993 (B8) Colt Vista/Summit Wagon
DISCUSSION:
The illustration used in step 3/4 (installation of tie rod end locking nut/tie rod end) shows an incorrect measuring method. The correct method is to check the measurement between the end of insertion groove for the bellows and inside edge of the locking nut. Please insert the corrected pages in the manuals. The corrections are highlighted with **ASTERISKS**.

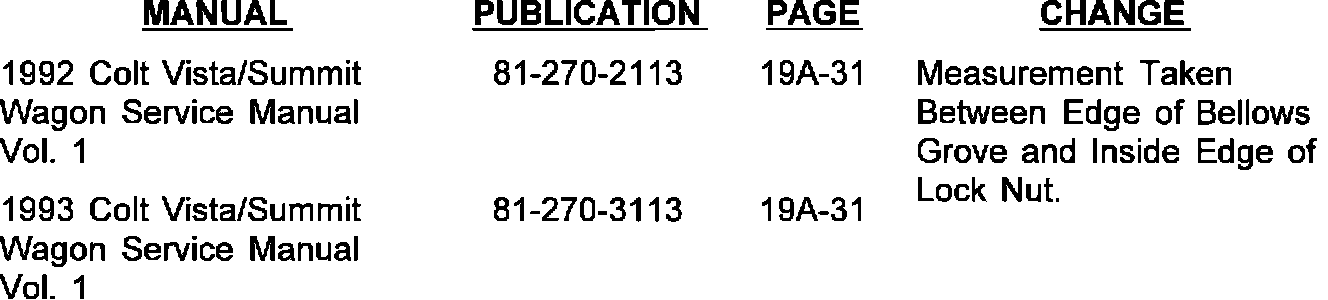

The affected service manuals are: (see illustration)
POLICY: Information Only
