Exhaust Manifold: Service and Repair

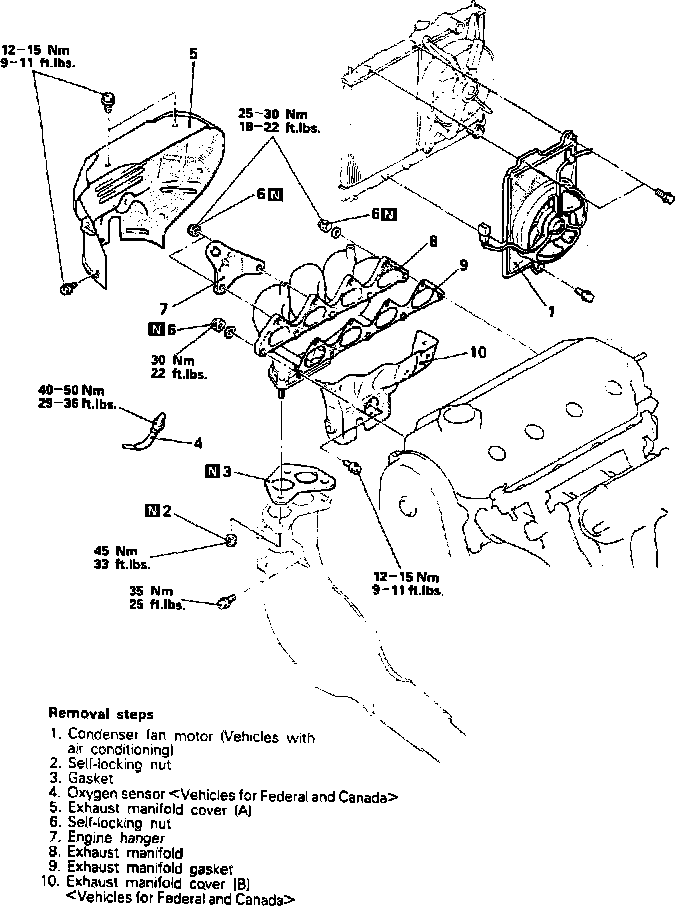

Fig. 14 Exhaust manifold. 1992 2.4L/4-143.5 engine:

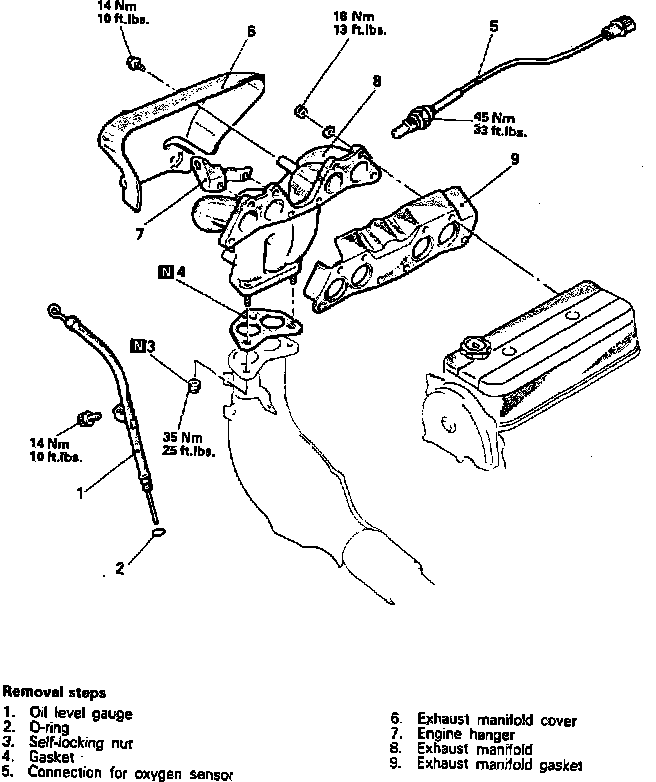

Fig. 15 Exhaust manifold. 1993 2.4L/4-143.5 engine:

1. Remove the power steering pump as outlined in the Front Suspension & Steering section.
2. Remove the exhaust manifold in numbered sequence shown.
3. Reverse procedure to install.
