Electrical Diagrams

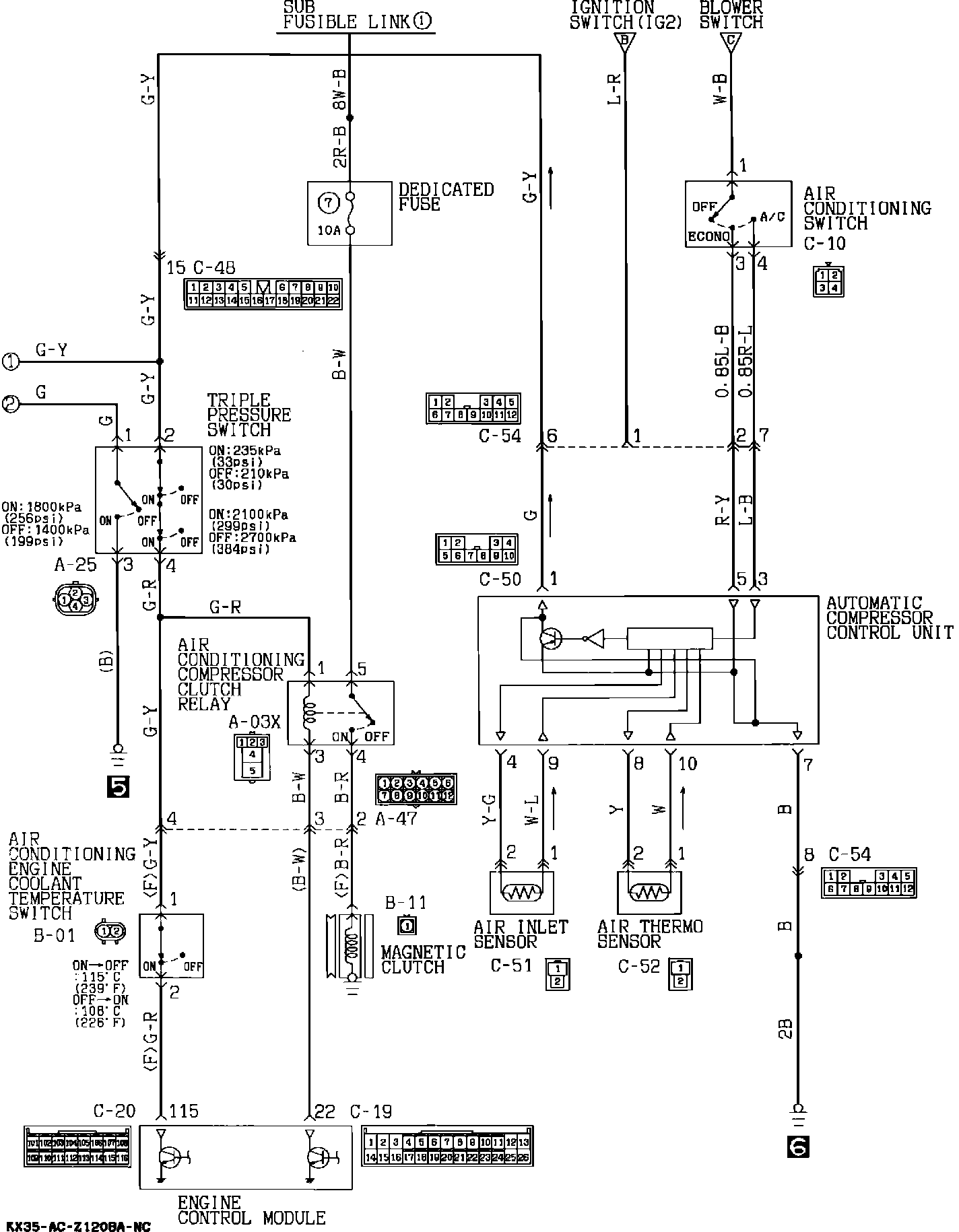

Heater And Air Conditioning:

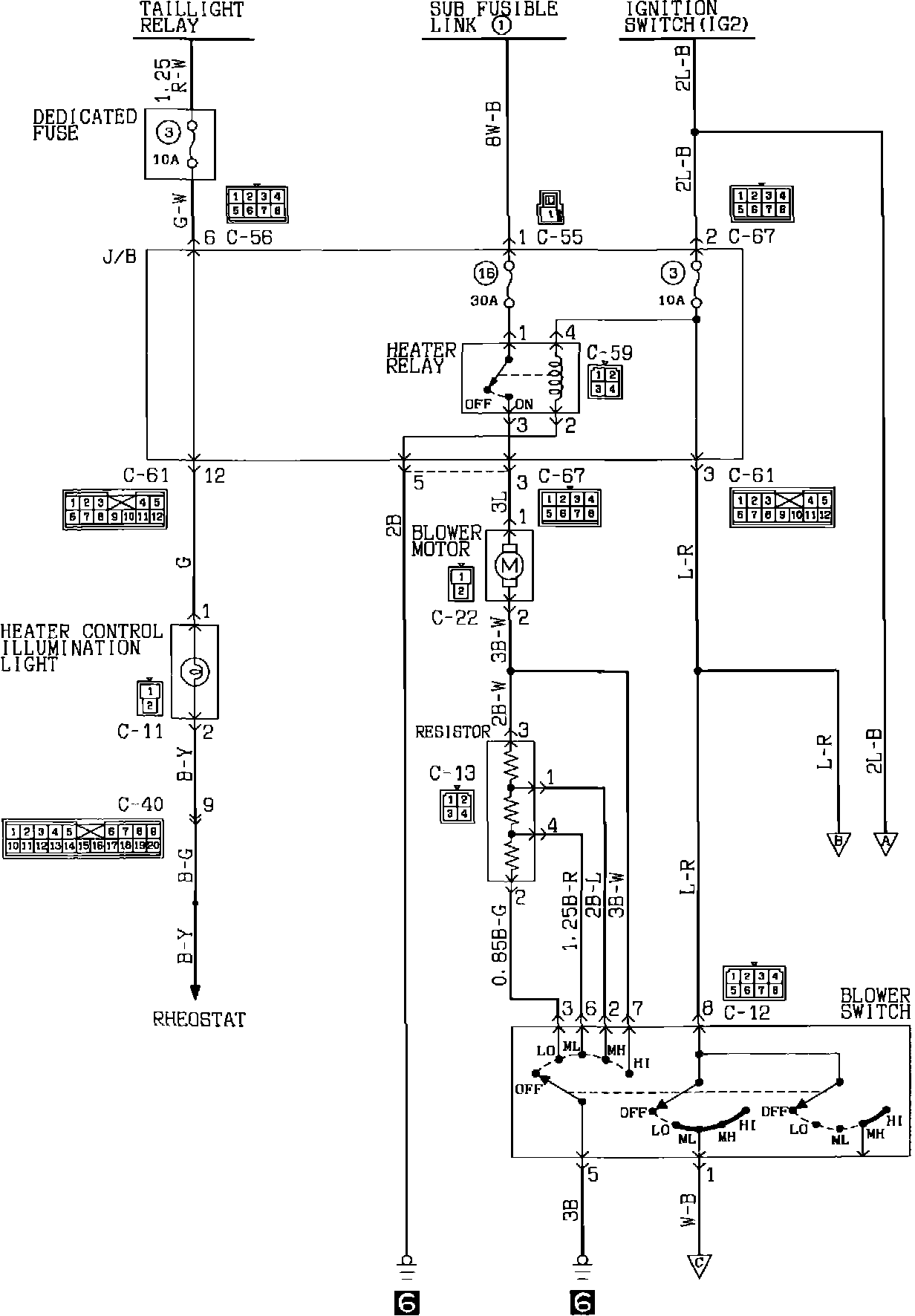

Heater And Air Conditioning:

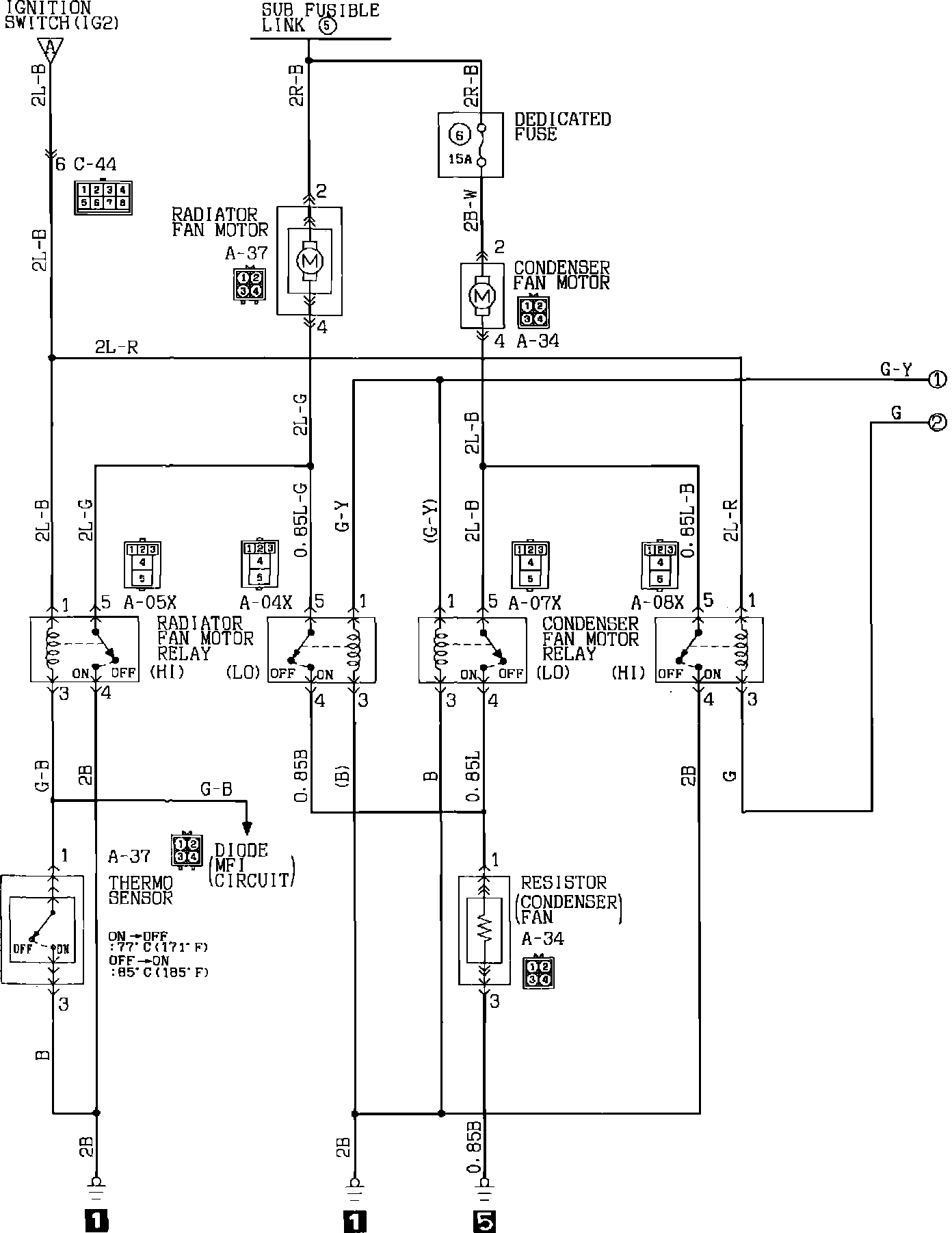

Heater And Air Conditioning:
